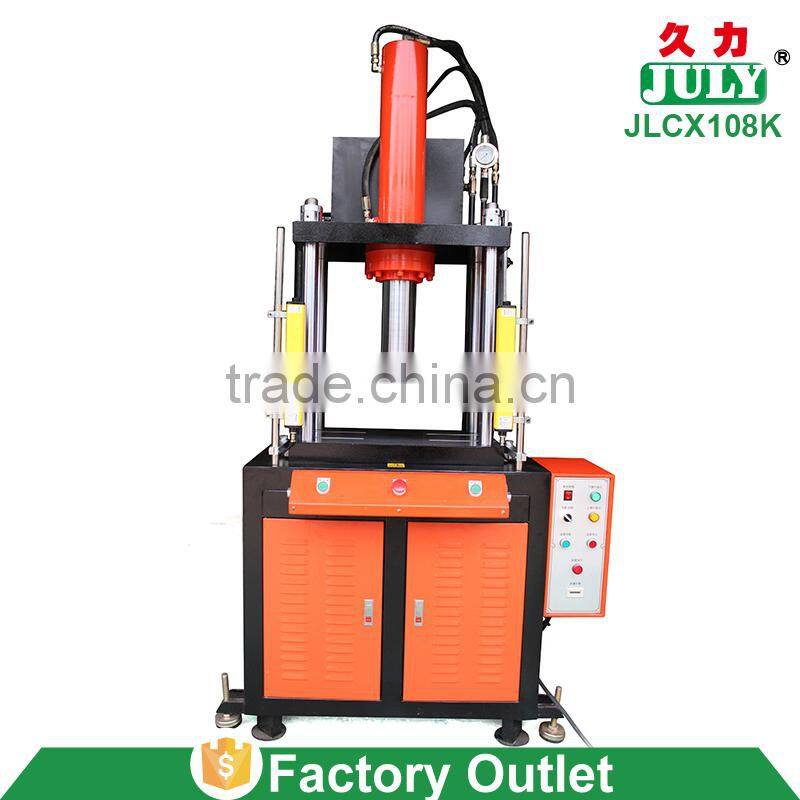

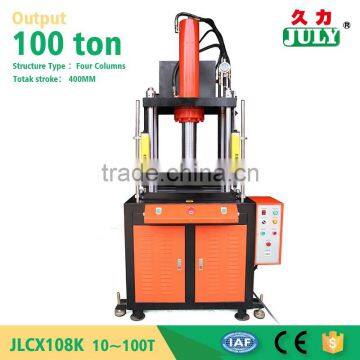

China JULY Sale 100 Ton Capacity Power Press Machine for Sheet Metal
- Shen zhen
- T/T Credit Card PayPal
You May Like
-
China JULY Hot Sale 15 Ton Embossing Press Machine
-
China JULY Hot Sale 15 Ton Toggle Hydraulic Press for Flanging
-
New Style JULY Brand 10 Ton Hydraulic Cylinder Tube for Dump Trailer
-
Retail JULY Useful 20 Ton Small Electric Hydropneumatic Cylinders
-
JULY Useful 8 Ton Mini Telescopic Pneumatic Cylinder
-
China JULY 3 Ton Hydraulic Press Cylinder
Product Details
| Condition | New | CNC or Not | Normal | |
| Power Source | Hydraulic | Place of Origin | Guangdong, China | |
| Brand Name | JULY | Model Number | JLCX108K-C-100T | |
| Voltage | 380V | Power(W) | 5.5kw | |
| Weight | 850kg | Dimension(L*W*H) | 1030*750*2400 mm | |
| Certification | CE | Warranty | one year | |
| After-sales Service Provided | Overseas service center available |
Product Description
WHY CHOOSE US?
1. We owned more than 20 years of experience in Hydro-pneumatic industry.
2. Two our own factories in China.
3. We are the specified education and experimental base of GuangDong University of Science & Technology.
new style JULY factory made four column hydraulic Forming machine forof PE foam
Other related products, please click here. ←_←

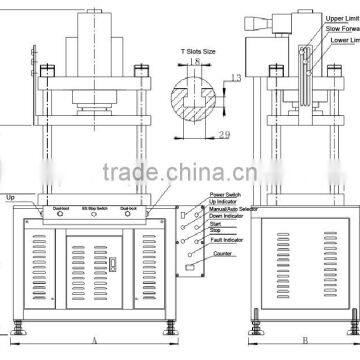

Drawing
Size table
| Model | A | B | C | D | H | L | W | W1 |
| JLCX108K-10T | 770 | 650 | 2100 | 900 | 450 | 500 | 400 | 275 |
| JLCX108K-20T | 950 | 650 | 2200 | 900 | 450 | 600 | 450 | 315 |
| JLCX108K-30T | 980 | 700 | 2300 | 900 | 500 | 600 | 500 | 365 |
| JLCX108K-50T | 980 | 700 | 2350 | 900 | 500 | 600 | 500 | 365 |
| JLCX108K-100T | 1030 | 750 | 2400 | 900 | 550 | 650 | 600 | 415 |
Specification
| Specification | Unit | JLCX108K-10T | JLCX108K-20T | JLCX108K-30T | JLCX108K-50T | JLCX108K-100T | ||
| Theoretical Output | KN | 5-100 | 10-200 | 10-300 | 15-500 | 30-1000 | ||
| The Maximum Height | MM | 400 | 450 | 500 | 500 | 600 | ||
| The Down Velocity of The Slipper | MM/S | 160 | 160 | 140 | 140 | 120 | ||
| The Operating Velocity of The Slipper | MM/S | 20 | 20 | 15 | 15 | 10 | ||
| The Up Velocity of The Slipper | MM/S | 150 | 130 | 120 | 120 | 100 | ||
| The Size of The Working Table | MM | 500*400 | 600*450 | 600*500 | 600*500 | 650*600 | ||
| The Maximun Stroke | MM | 250 | 300 | 300 | 300 | 400 | ||
| Electrical | V | 380 | 380 | 380 | 380 | 380 | ||
| Motor Power | KW | 2.2 | 3.7 | 3.7 | 5.5 | 7.5 | ||
Features
With built-in quick cylinders,air travel speed,high production efficiency;
Convenient adjusting mechanism can be adjusted manually on the head or the workbench in the suppression of any position,also can be adjusted within the design schedule any ride the length of the fast forward and work;
Fast speed lash cylinder,high press,low noise,sun time quick stroke can be up to 150mm.when close to products to slow.instantaneous high pressure,to ensure speed at the same time,guarantee the stability of the pressure stress can be stepless adjustment according to the technique.
Application
Metal or non-metallic parts,stamping,molding,light stretching,plastic and pressure assembly such as glasses,locks and hardware parts of repression,electronic connectors,electrical parts,motor,the stator being connected.All kinds of aluminum alloy products,magnesium alloy and zinc alloy products of flash and plastic cutting,cutting of plastic products.
