High Quality Automatic Refining Maize Germ Oil Line With Factory Price
- Qingdao or the nearest port
- T/T Credit Card
You May Like
-
China New Type Durable Coconut Oil Making Machine Line
-
After-sale Service Engineer Overseas Industrial Soybean Oil Presser Machinery
-
China High Quality Industrial Soybean Oil Mill Price With CE Approved
-
China High Quality Durable Soybean Oil Mill Manufacturers in Malaysia
-
China High Quality Industrial Soybean Oil Mill Manufacturer
-
After-sale Service Engineer Overseas Commercial Soybean Oil Mill Machinery Price
Product Details
| Condition | New | Usage | Other, maize germ oil extractor, Rice bran, Peanut, Coconut, Sunflower,Soybean, ect | |
| Type | Other, Cold & Hot Pressing Machine, 10-100T/D | Automatic Grade | Automatic | |
| Production Capacity | 10-100T/D maize germ oil extractor | Place of Origin | Henan, China | |
| Brand Name | JinXin maize germ oil extractor | Model Number | 10-100T/D maize germ oil extractor | |
| Voltage | 220V/380V/440V, 380-460V | Power(W) | Capacity | |
| Dimension(L*W*H) | according the capacity | Weight | according the capacity | |
| Certification | BV, ISO9001:2008, CE, BV, CE, ISO9001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
High quality automatic Refining maize germ oil line with factory price

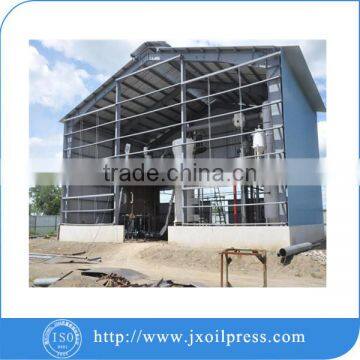

The international level-workshop of our plant
1. Refining maize germ oil line detail

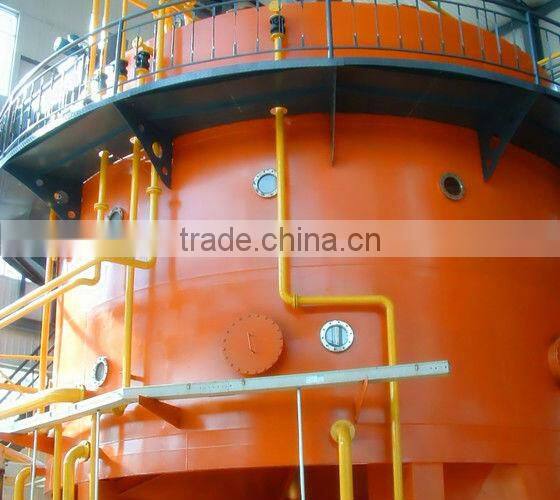

Process Features of JINXIN Rotocel Extraction:
1. Adopt stainless steel fixed grid plate and increase the horizontal grid plates, which can prevent the strong miscella from flowing back to the blanking case,
so as to ensure good extraction effect;
2. The rotocel extractor is driven by rack, with unique rotor of balanced design, low rotating speed, low power, smooth operation, no noise and quite low maintenance cost;
3. The feeding system can adjust the rotating speed of airlock and main engine according to the feeding quantity and maintain a certain material level,
which is beneficial to the micro negative pressure inside the extractor and reduce the solvent leakage.
4. The advanced miscella circulation process is designed to reduce the fresh solvent inputs, reduce the residual oil in meal,
improve the miscella concentration and save energy by reducing the evaporation capacity.
5. The high material layer of the extractor helps to form immersion extraction, reduce the meal quality in miscella,
improve the quality of crude oil and reduce the evaporation system scaling.
6. Specially suitable for the extraction of various pre-pressed meals.
2.Main Economic and Technical Parameters of Refining maize germ oil line
Capacity | 300T/D |
Residual oil in meal | ≤ 1% |
Solvent consumption | ≤ 2Kg/T (No.6 solvent oil) |
Crude oil moisture and volatile matter | ≤ 0.30% |
Power consumption | ≤ 15KWh/T |
Steam consumption | ≤ 280KG/T (0.8MPa) |
Finished meal moisture | ≤ 13% (adjustable) |
Residual solvent in finished meal | ≤300PPM (qualified detonated experiment) |

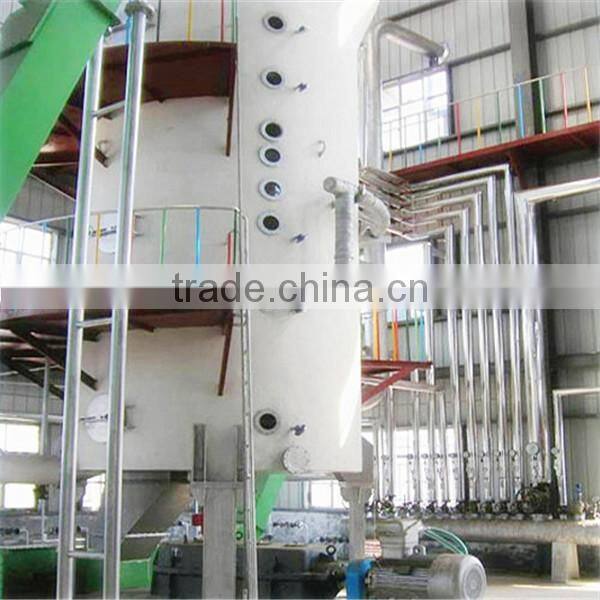

3. Refining maize germ oil line wet Meal Desolventizing Process
Desolventizer toaster advantages:
a) Passivate and damage the anti-nutritional components such as the urea enzyme and trypsin in the meal, and improve meal value in use.
b) Control the protein denaturation degree in the meal , and improve the NSI index effectively.
c) It can better regulate the color, flavor and taste of the meal.
d) It can better reduce residual solvent in the meal and regulate the meal moisture, so as to guarantee the minimum solvent consumption and safe use of the meal.

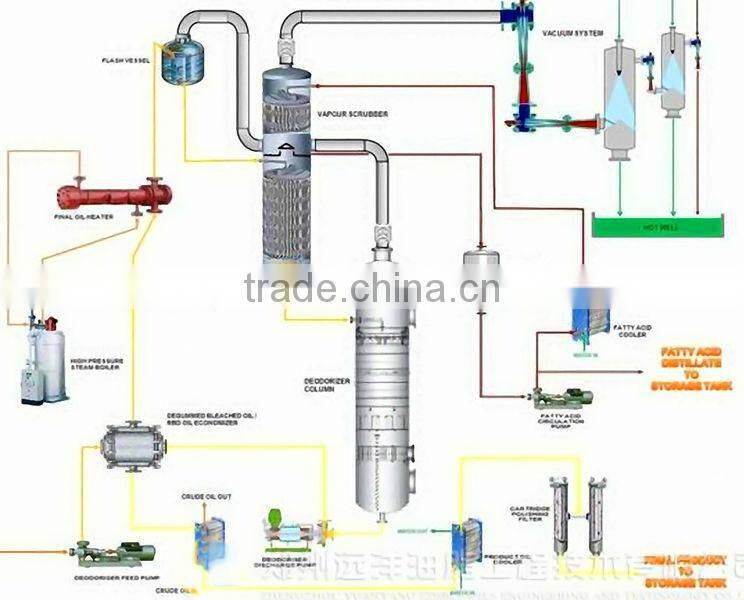

4. Refining maize germ oil line negative pressure evaporation process
The liquid from the extractor is the miscella containing grease and oil, which can be separated out according their different vaporization temperatures.
Our company mainly uses vacuum evaporation technology, and it can reduce solvent leakage and consumption.
The separated solvent vapour is cooled and recycled back to the extractor for reuse, which can improve the solvent efficiency.
5.The main process of oil refinery plant
1. Crude oil →2. Degumming → →3. Deacidification
↓
↓
4. Bleaching → 5. Frame filter
↓
8. Leaf filter ← 7. Dewaxin ← 6. Deodorization

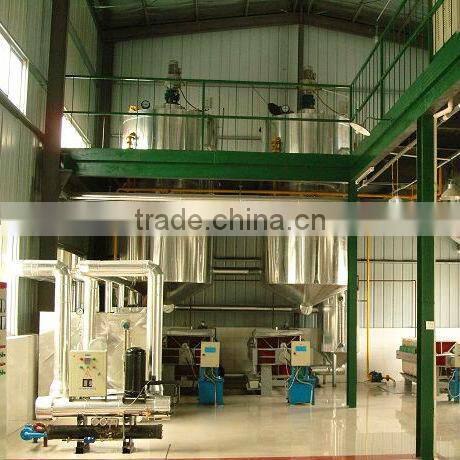

6. Edible oil refining machine
1. The decolour tank is for bleaching grease;
2. The deodorizing tank is for deodorizing grease (stainless steel);
3. The conducting oil furnace provides thermal energy need for production, the temperature reach to 280degree;
4. The vacuum pump provides vacuum for bleaching, deodorization which can reach 755mmHg or more;
5. The Air compressor can dry the bleached clay;
6. The air press is for filter clay;
7. The steam generator can generate steam distillation required;
8. This kind of oil refining equipment make the oi reach the standard level national edible oil.
7.The oil quality outcome standard
1. Grade on for salad oil
2. Grade two for high quality cooking oil
3. Mixture and volatile≤0.25%.
4. Impurity≤0.2%.
5. AV (mgKOH/g)≤7

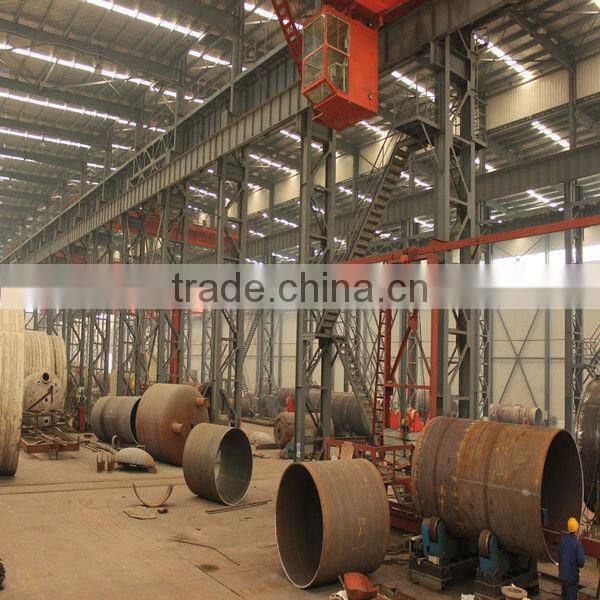

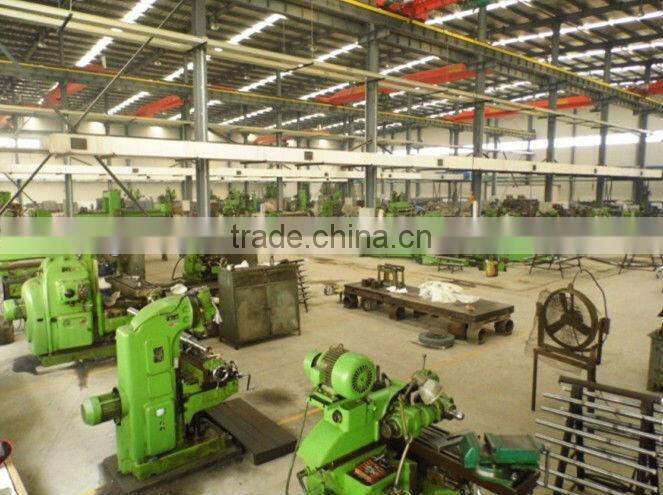

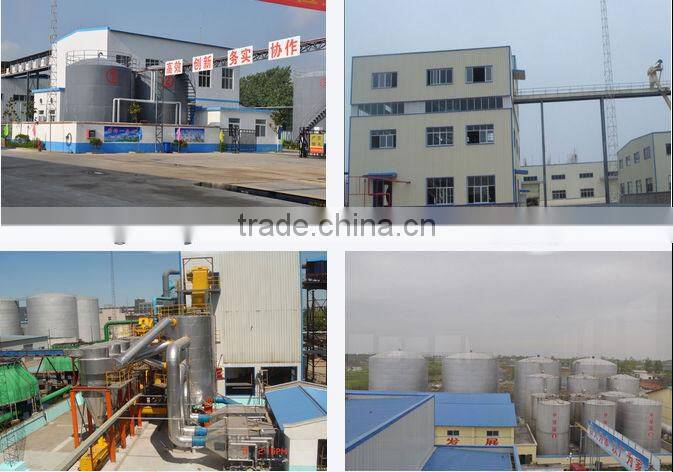

Work Shop
we hope to establish a growing, healthy and mutually beneficial trade relationship with you!
If you are interested in our machine, Please click "SEND" to contact with us, or email me by above information.
