Satisfying by Romanian Used Car Tyres Pyrolysis Machine

Specifications

    Satisfying by Romanian used car tyres pyrolysis machine

   Congratulations,You have found a profitable business opportunity when you view this page,and also you have got a fine supplier who can support you on this field.

    Waste tire/plastic/rubber becoming more and more serious,Many governments of the countries are trying to deal with this thorny problem.

    How to deal with this problem? We have found a way,please read on...

    Traditional processing method is burning or landfill.But there is serious pollution to air and soil,it was not right way.

    Pyrolysis,not only averts the serious pollution but also has profit.

The principle introduction of used car tyres pyrolysis machine

 Pyrolysis is thermochemical decomposition of tyre and plastic polymer, since waste tyre and plastic are long chain polymers containing more than 50,000 carbon atoms. The process will require an initial fuel source of coal, wood or oil. Oil gas produced flows through several successive condensers where the gas is cooled and oil gas is condensed into oil.

Working process of used car tyres pyrolysis machine

2.Main parts of used car tyres pyrolysis machine
Auto- Feeder		1.60 tons hydraulic pressure. 2.Suitable to all kinds of materials. 3.Take steel out of the reator. 4.Save time, save labour, save energy.
Reactor		1. Q245R boiler plate. Thickness: 16mm 2. Auto welding with weld seam 21mm to  keep weld uniform and strong. 3. Safety. 100% X-ray flaw detection,      inspecting weld defects.
Buffer Chamber		1. Reduce speed of oil gas, keep whole  system running safely. 2. Purify oil gas. 3. Increase oil output rate.
Oil Water Separater		1. Safety device, prevent gas reflux. 2. Separate heave oil and water.
Condenser		1.Three grade cooling device with The first step of cooling . 2.Totall cooling area 74 square meters to guarantee oil output rate. 3.Easy to install , easy for clearance.
Negative Device		1. Running safely with Negative divece. 2. Working with auto feeder, no gas leakage, no pollution.
Water Sealing		Prevent gas reflux, keep safe running.
Dedusting System		1.Reach the international purification standard. 2.Keep environmental friendly with   SGSreport.

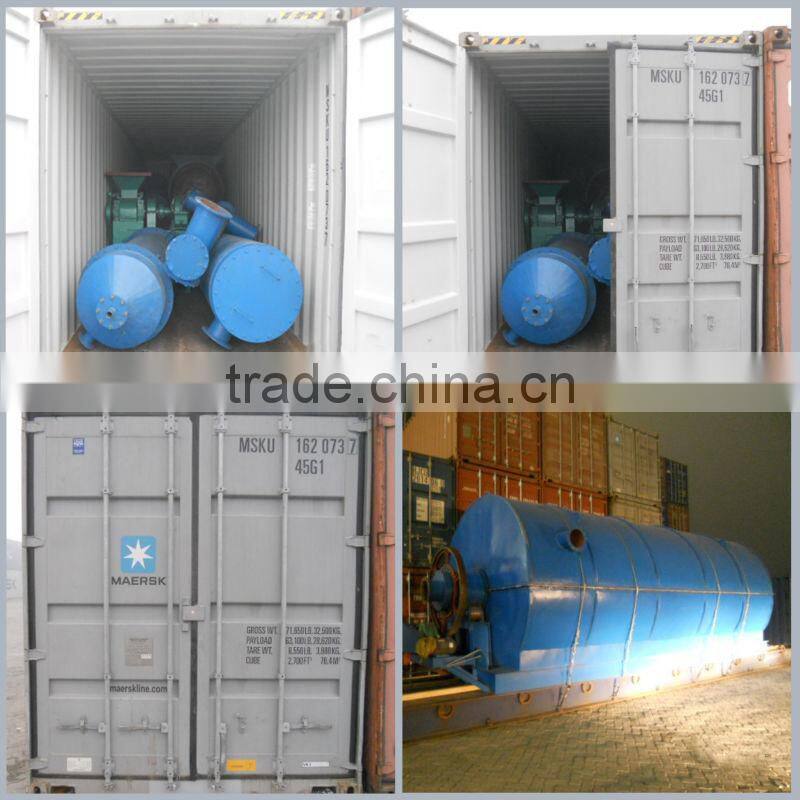

Delivery of used car tyres pyrolysis machine

Total:Two containers,one 40ft FR and one 40ft HQ

Customer Preparation for used car tyres pyrolysis machine

 Advantage of Doing Company

1.Our belief :Doing is better than thousands of ideas.Our success comes from do it immediately.

2.Rich experience:equipment had exported to more than 18 countries.

3.With ISO9001:2008,CE Certificate.

4.Strict requirements for quality:

    IQC:Incoming quality control,main raw material;

    PQC:Process quality control,All the reactor is inspection by X-ray.

5.Running machine available for customer visit.

6.Factory area : 20000 square meter.

7.Production capacity:20 sets/month.

    Xinxiang Doing Renewable Energy Equipment Co., Ltd specializes in manufacturing waste tires pyrolysis/recycling equipment. We have mature technology and professional sales team. And we have exported more than 50 sets of equipments to many countries and areas in 2011, such as Turkey, Albania, Macedonia, Iran, Ecuador, Poland, India, Malaysia, Bangladesh and so on.

After-Sales of  used car tyres pyrolysis machine

1. Delivery time- It will be 10-15 days after we receive the deposit.

 2. Warranty- The warranty period for reactor and other parts except spare parts is 1 year.

The problem caused by wrong operation of workers shall not be responsible by our company.

 3. Installation and Training-Our company will send one technician for each set of machine for guiding your installation,

testing the machine and training your workers.

 During the installation period, buyer should pays $50.00 pry day to our technician;

And buyer should take charge of technician round trip air tickets and accommodation during

installation.
