Doing 5/6/8/10T Waste Tire and Plastic Pyrolysis Machine

1) Overview of recycle machine

The whole pyrolysis system is composed by 13 parts,which are reactor,transmission device,catalytic chamber,cooling tube, heavy tank,oil-water separator,condenser,light oil tank,safety device,vacuum system,dedusting system,draft fan,chimmey

The key parts of the plant are reactor and cooling system

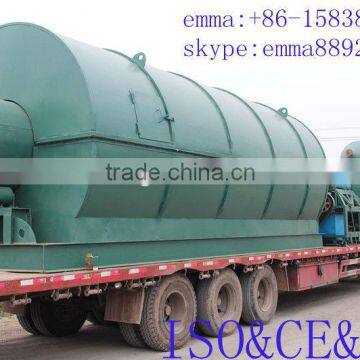

Reactor directly decides the machine's safety and service life.It is made by welded steel plate.So the quality of welding will effect safety and service life.So,we use automatic welding machinewhich will not only guarantee the quality but also greatly improve working efficiency

Cooling systems decides oil output. There are two steps for cooling.Cooling pipe is the first step.The second is condenser.There are 57 pipes in one condenser which will guarantee you a high oil yield

2) Main features:

Safety:

1. Professional sealing technology for cover, oil outlet

2. Heavy oil is separated which can avoid the problems of jam in later condensing

3. Vacuum system will prevent exhaust gas from going back to reactor and causing accident

4. Alarm, safety valves, thermometer, pressure gauge and safety valve

5. It is dangerous to burning exhaust gas (C1 to C4). In our process, it is transferred first through the safety device and a safety burning air muzzle. Before burning, we should ensure the safety of production

Environment friendly:

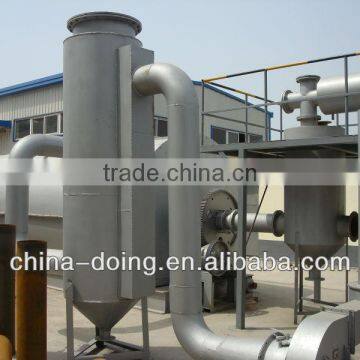

1. Well water dedusting system with high pressure nozzle and environmental damper inside can avoid black smoke

2. The exhaust gas will be directly recycled for heating reactor, no gas pollution

3. Every junction of the reactor is in good sealing situation with professional sealing material

Long service life:

1. Material: Q245R special steel plate, thickness 14mm

2. The service life of the reactor will be 8 years

Energy saving:

1. Well sealing for heating system, no gas leak and saving fuel

2. The exhaust gas will be recycled for reactor heating 3) Technical parameter
