Magnetic Separator Tube From Oasis
- Xiamen/GuangZhou
- T/T
You May Like
Product Details
| Place of Origin | Jiangxi, China | Brand Name | Oasis | |
| Model Number | XCGQ50-magnetic tube | Type | Permanent | |
| Composite | Ferrite Magnet | Shape | Bar | |
| Application | Industrial Magnet |
Product Description
Specifications
Laboratory Magnetic Tube1. competitive price
2. easy operate & maintain
3. widely used for various ore
Technical Parameter of laboratory Magnetic Tube
Laboratory Magnetic Tube
1. competitive price
2. easy operate & maintain
3. widely used for various ore...
application: lab mineral equipment
XCG(Q)S 50 Magnetic Tube or Davis Analyzing Tube is applicable in lab .of mine, metallurgical, geological and other industries. It is designed to determine magnetic content in strong magnetic mineral in the mineral processing operation.

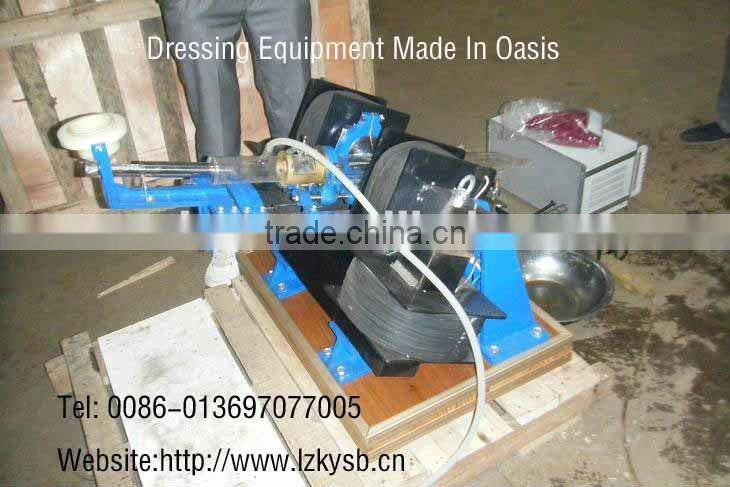

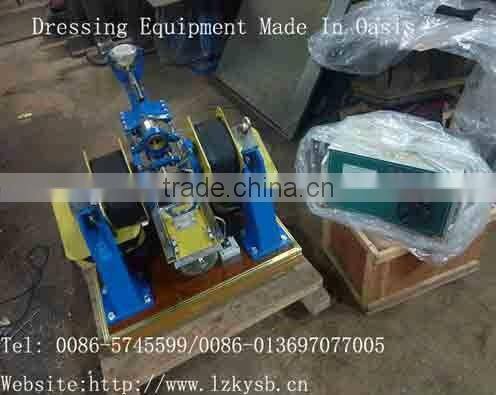

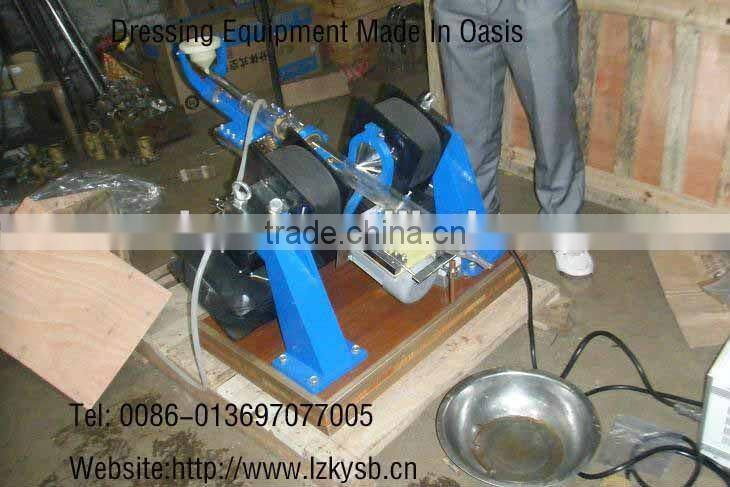

Magnetic Tube is C Type electromagnet fitted with glass tube between pole ends to reciprocately move and swing. When the test materials to be separated pass through magnetic fields. the magnetic portion will be absorbed near the tube walls and the non-magnetic portion will be washed down by water in the mechanical movement and discharged..
Model |
Unit | XCGQ 50 |
Tube Diameter | mm | 50 |
Vibrating Freq | r/min | 70 |
mm | 52 | |
Feed size | mm | 0.5 |
Intensity | GS | 2500(200KA/m)Stepless adjustable |
Voltage | V | 50HZ 220 exchange |
Exciting power | VA | 500 |
Supply equipment | set | Excitation power 1 |
Overall dimensions | mm | 1000/800/500 |
Weight | kg | 200 |
