Professional Continuous Sawdust Wood Charcoal Carbonization Furnace

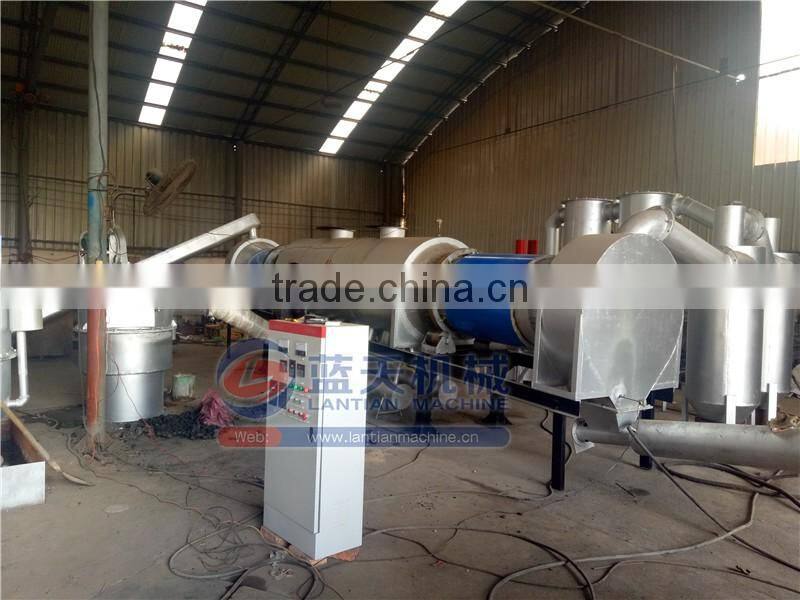

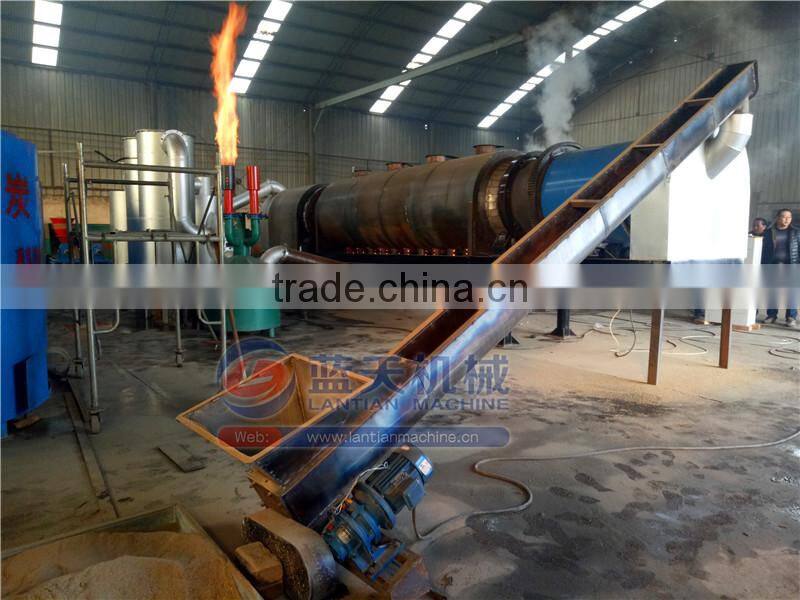

Continuous sawdust carbonization furnace

Introduction of sawdust carbonization furnace

Continuous sawdust carbonization furnace is mainly used for relative puffy coking of biomass material, the device is still using the char gasification type principle, USES the advanced smoke-free environment carbonization process: the whole equipment by the gasification system (gasifier, spray tower, filter), purification system (spray tower, oil-water separator, filter), carbonized system (carbonized host, screw feeder, screw blanking) machine, cooling machine, conveyor, control system (control cabinet), the whole coking process for automation production, automation.

Function of continuous sawdust carbonization furnace

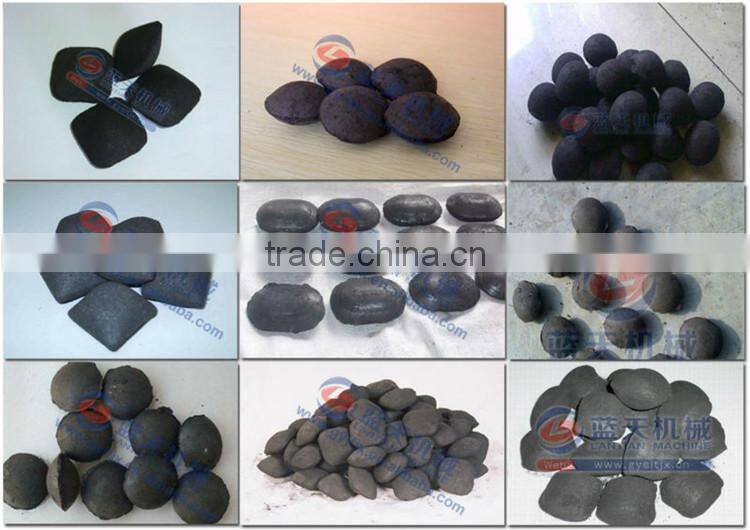

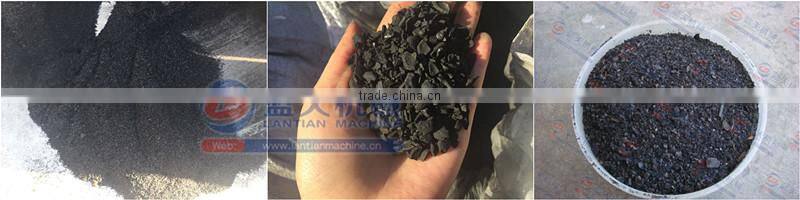

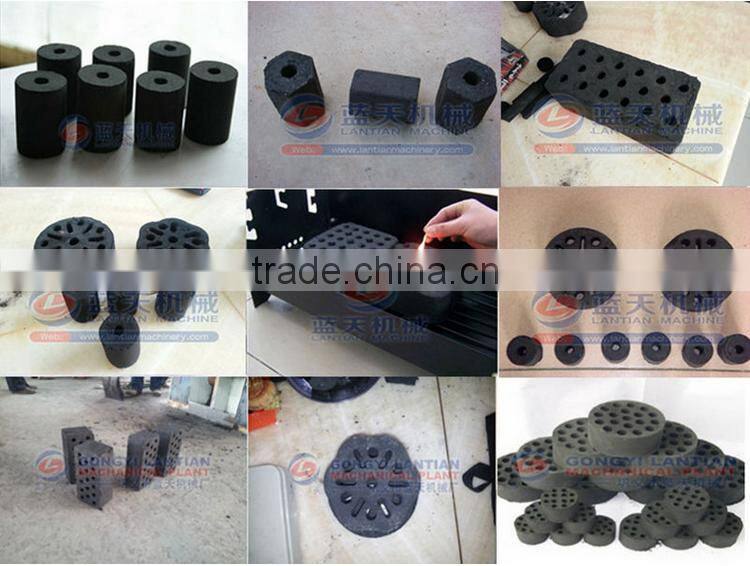

It can carbonize different materials into charcoal, such as sawdust, wood chips, rice husk, olive waste, coconut shells, nuts shell,sugarcane bagasse,small things etc.  Finished charcoal can be sold in the market directly, or deep processing into BBQ charcoal, shisha charcoal, etc. The whole set mainly contains carbonization furnace, gasification furnace, charging part, discharging part, fan, etc.

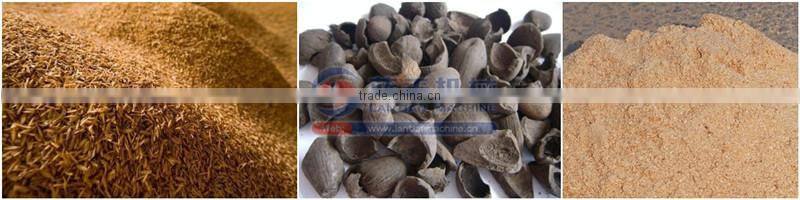

 rice husk                                                         nut shells                                     sawdust

Working principle of sawdust carbonization furnace

1, continuous carbonized machine just started (feeding first )heating, needs heat source heating carbonization furnace.

 (1) One kind of using reverberatory furnace to produce heat flow for burning carbonization, achieve the goal of heating carbonization.

 (2) The other is adopting gasifier, lit sawdust by gasifier and gasification of combustible gas burning carbonization, reach the purpose of heating carbonization, (gasification of sawdust after the carbonization of coal powder output device be carbonized charcoal powder, in addition to combustible gas through the wood tar recycling equipment recycling)

 2, To reach a certain temperature, inside the combustible gas dust separation by dust separator, dust separation of combustible gas and then through the wood tar recovery unit.

 3, After waiting for coking heating produced gas, at that time the furnace heating or gasifier and gas plant stop working, preliminary heating equipment work over.

 4, After carbonized about 2 to 3 hours, (different temperature with time) ,carbon powder from carbonized slowly into coking coal powder and flowed from the cooler, cooler equipment production on a normal continuous uninterrupted.

 5, wood tar is a kind of important chemical raw material, contains more than 300 kinds of chemical elements in the wood tar, the device will automatically discharge wood tar.

Techanical parameters of sawdust charcoal carbonization furnace

Machine parts of sawdust carbonization furnace

Name	Picture	Descirption

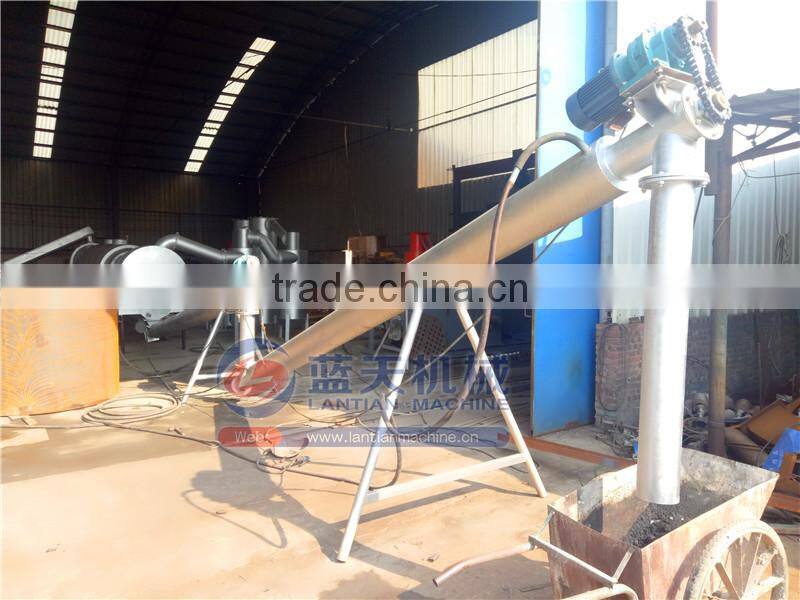

1.Screw conveyor		This one is feeding materials into sawdust carbonization funnace

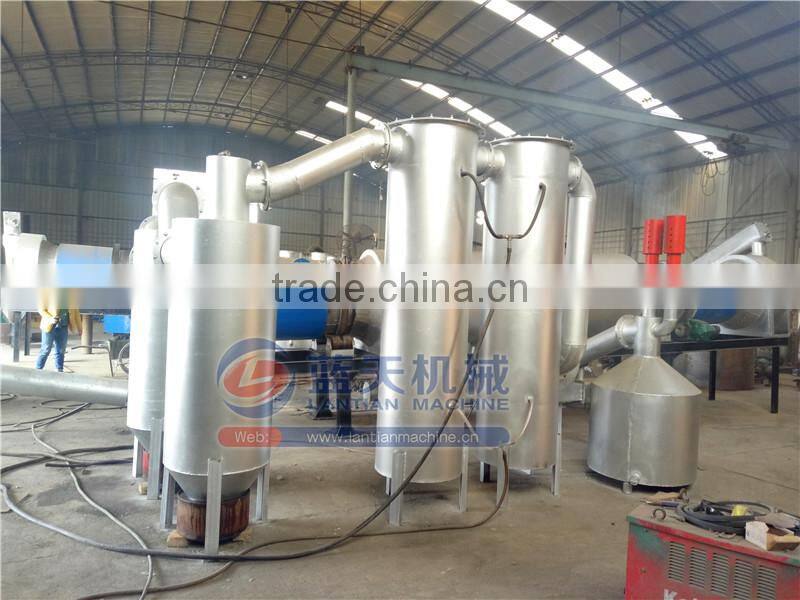

2.Smoke filter		dealing the smoke and combustible gas

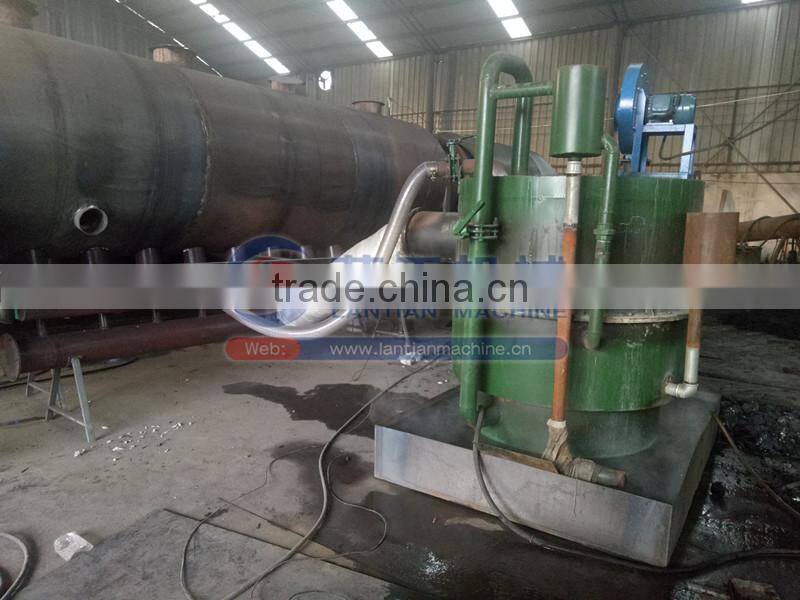

3.Coal-gas producer		produce the gas from coal

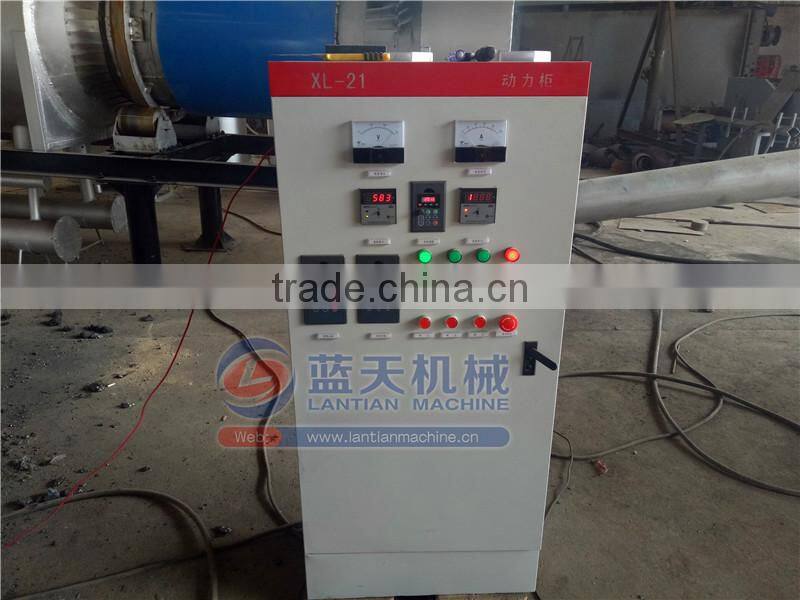

4.Control box		operate the carbonization furnace

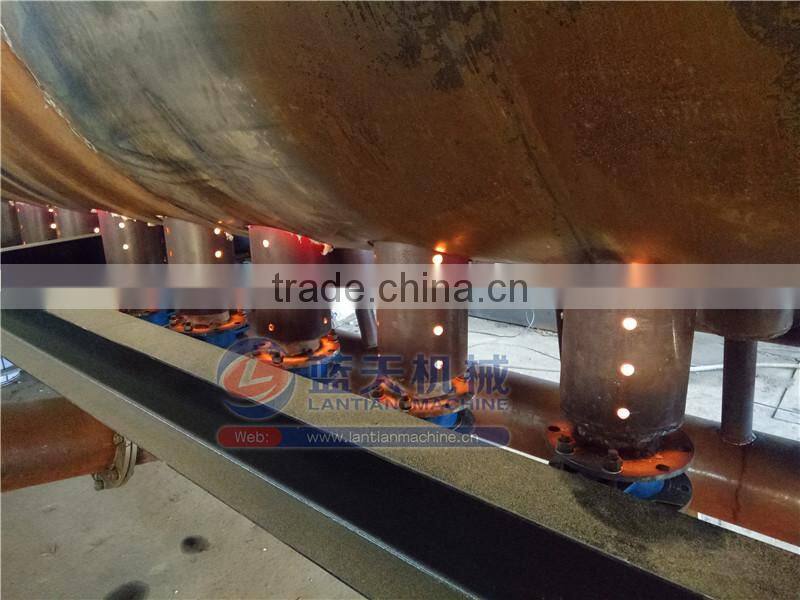

5.Burner port		burning gas
6. Screw conveyor for powder out		cooling and final products out

Features of continuous sawdust carbonization furnace

1.) Simple structure in linear type ,easy in installation and maintation.

2.) High pressure double crank to control the die opening and closing.

3.) Running in a high automatization and intellectualization,no pollution

4.) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Packaging and shapping of our machines:

Our payment terms:

1. We usually accept T/T, or Cash. 30% for down payment, and 70% pay as balance before loading.

2. It is about 15-25 days to finish all the machines after receive the down payment.

3. We take pictures of finished products, and test all the machines before delivery.

Packaging of our machines:

1. Stand blasting, coat with high quality paint;

2. Product wrap by film;

3. Load container, machines and Spear Parts in wooden case.

4. as your special requirements.

Delivery of our machines:

1. We have been long term of cooperation with many famous shipping agent. Also we can according to your needs to arrange the delivery.

2. After load the machines into the containers, we can we send the loading pictures to you.

3. When we get the BL after the ship leave the Port to your place, we will send it with the Contact, Pre-form Invoice, Packaging List, etc to you so as your can do the clearance.

Our service for our customers:

♥ Before Service:

1. According to our customers special requirements, provide the most suitable project design, process design and the purchase program.

2. Guide customers to choose the best and economical plant, recover investment within short time, and site inspection.

♥ On sale service:

1. Accompany you to check the working conditions of our machines.

2. Inspect the quality of all our machines.

3. Manufacturer the equipments as the contact appears at first time after receive your deposit. Arrange the delivery timely.

♥ After sale service:

1. Send engineers to your site, help you to install and debugging devides, build plant, and training operators, at the same time pass the technology on clay brick production to customers.

2. Guarantee of the equipments quality, maintenance, etc. Solve all the troubles for you timely during your production when receive your call oure-mails.

About our factory:

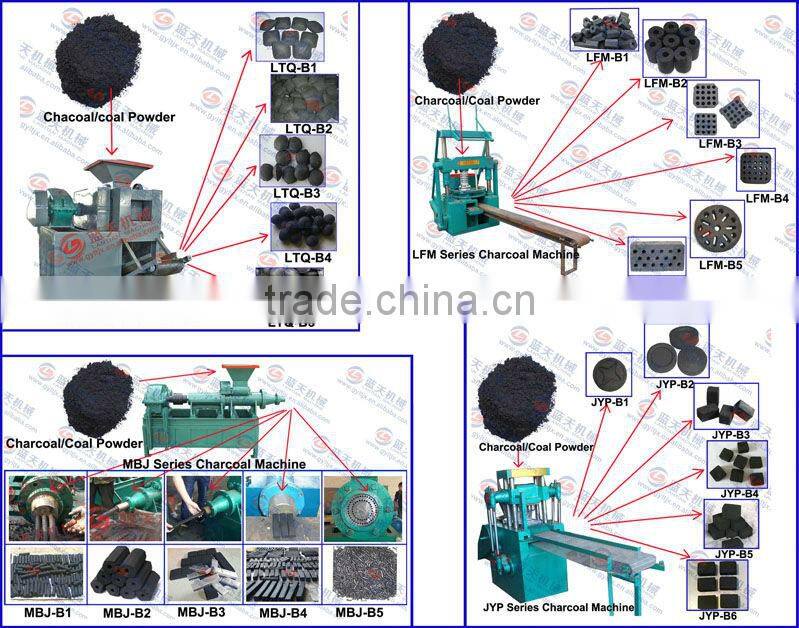

Through 30 years of development and technology innovation, our Lantian Mechanical Plant has been developped to a professional manufacturer set design, manufacture, after-sale service as a whole. In order to meet the different requirements of our customers, we designed and researched many types of charcoal process machines, include charcoal & coal briquette machine, shisha & hookah charcoal tablet machines, charcoal & coal extruder machines, and biomass charcoal briquette machines, etc, and the assistant equipments.

If you want to know more details about machine, welcome to contact!
