50Hz 400V Electric 2mw Trailer Mounted Containerized Diesel Generator With MTU
- Dalian
- T/T
You May Like
Product Details
| Place of Origin | Liaoning, China | Brand Name | Puyang | |
| Model Number | PFC2000 | Output Type | AC Three Phase | |
| Speed | 1500rmp | Frequency | 50Hz | |
| Rated Power | 2000kVA/1600kW | Rated Voltage | 400V | |
| Rated Current | N/A |
Product Description
Specifications
Diesel Generator 2mw1.Cummins Engine
2.2000kVA/1600kW Power
3.Industrial Generator
4.Stamford Alternator

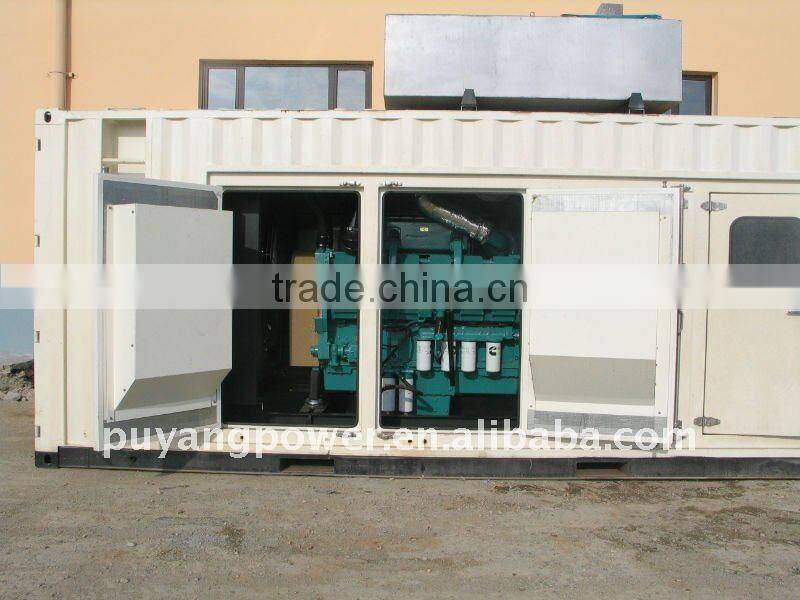

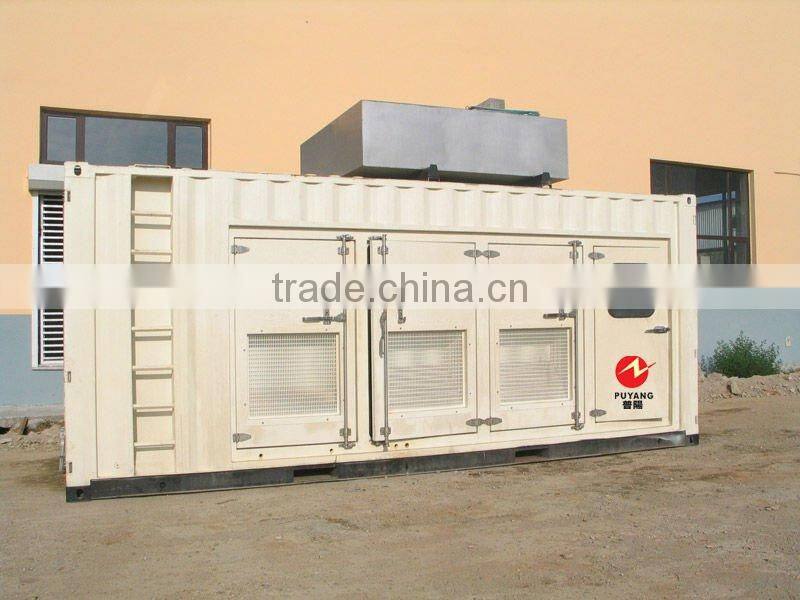

50Hz 400V Electric 2mw Trailer Mounted Containerized Diesel Generator With MTU
Outstanding Features
1.Cummins series diesel generator set comprises Cummins engine, matching alternator and specialized electric control system.
2.This kind of diesel generator sets has the characteristics of quick start ability, light weight, small volume and compact
structure.
3.Their first loading capacity can be up to more than 50%.
4.Exhaust emission of engine is in accordance with the standard of Tier 2.
5.Our Cummins series diesel generator set adopts a low-impedance design. It can bear large load changes and respond well to non-linear loading conditions.
6.Our diesel generator sets have received ISO9001 quality management system certification and CE certification.
1.Genset Technical Data | |
Prime Power | 1600KW/2000kVA |
Rated Speed | 1500rpm |
Output Frequency | 50Hz |
Power Factor | 0.8(lagging) |
Phase | 3 |
Rated Voltage | 400/230V |
Dimensions(mm) | 6175*2287*2537 |
Genset Weight(kg) | 15366 |
2. Specification of Diesel Engine | |
Engine brand | Cummins |
Engine model | QSK60G4 |
Number of Cylinders | 16 |
Cylinder arrangement | 16 in "W" |
Cycle | Four stroke |
Aspiration | Turbocharger,inter cooler |
Fuel System | Direct Injection |
Bore×Stroke (mm×mm) | 159*190 |
Displacement | 60L |
Speed Governor | Electrical |
Cooling System | Forced Water Cooling Cycle |
Speed Stability | ≤1% |
Total lubrication system capacity | 280L |
Fuel Consumption at 100% Load | 369L |
Starting Method | DC 24V Electrical starting |

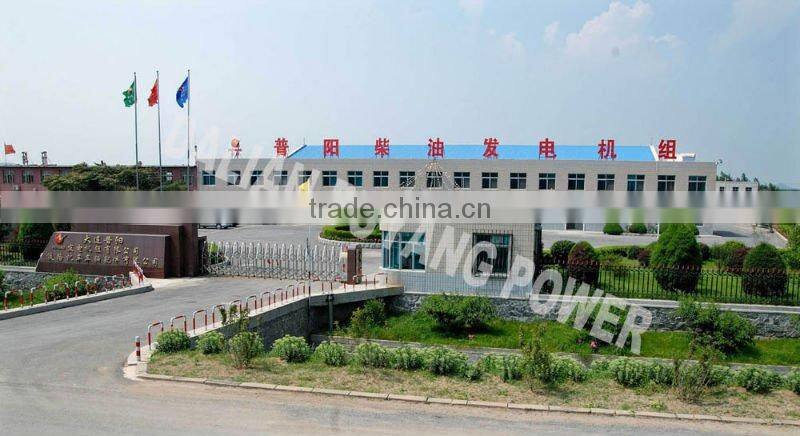

After the development of more than ten years,Dalian Puyang Generating Set Co.,Ltd. has become the leading generatign set manufacturer in northern China. We have the largest scale of production and full product specifications and models.With self-contained producing conditions,advanced testing equipments and abundant technology ,we can provide diesel generating set ranging from 8kW to 1800kW.It deserves to be mentioned that we have the only one full-fuction testing cneter in northern China.Right now,our diesel generators are serving in most fields.
Not only is “Let the light and power eternal” the wish of all clients,but also it is our key of subsistence. We would like to obtain your support and trust with the method of our best quality and service.
