1500W Infrared Radiaint Heating Panels With LCD Controller

Installation Instructions – Heat-On FIR Radiant Heating Panels

Before installation, you must read this guide for correct installation and use. If you have any questions in relations to installation or use of the product, please contact us.

(1)              Preparation

a)        The Heat-On FIR radiant ceiling heating panels are low consumption/wattage heaters designed for either main (central) or subsidiary heating for domestic or commercial heating applications.

b)        The heater is fitted with a short length (350mm) of flexible cable for electrical connection.

c)         The heaters should be connected as a fixed installation/hard wired by a licensed electrical person, according to the relevant electrical standards.

d)        This appliance does not require to be earthed.

e)        In case of heater fault, the Head Office must be notified immediately, the appliance will then need to be returned to the manufacturer for repair or replacement.

(2)              Installation – Location

a)        Heater must not be closer than 300mm to adjacent walls.

b)        Heater must not be installed closer than 150mm from light fittings (down lights).

c)         Heater does not require any clearance between the back and any ceiling surface.

d)        The heaters are designed to heat with a minimum ceiling height of 2400mm and a maximum of 5000mm.

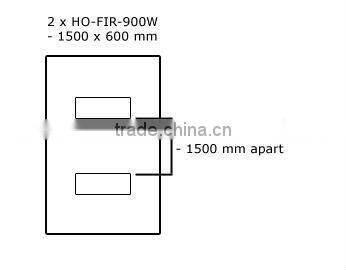

e)        When installing multiple panels in one room please ensure that the panels are spaced a minimum distance apart equal to the length of the specified panels.

f)          When installed in wet areas, the heaters must be installed so that switches and other controls cannot be touched by persons in the bath or shower.
