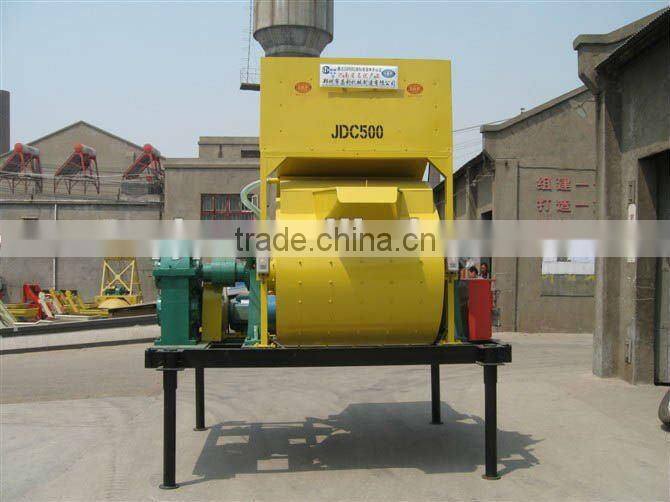

JDC Series Concrete Mixer ( ISO Certificate )
- Qingdao Shanghai Tianjin
- T/T Money Gram
You May Like
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | YJY | Model Number | JDC500 | |
| Motor Power | 18.5 kw | Mixing Power | 5.5kw | |
| Charging Capacity | 800L | Reclaiming capacity | 500L | |
| Speed of Mixing Drum | 27.6r/min | Water Supply Mode | Water pump | |
| Working Cycle Period | 30s | Discharge Way | Automatic | |
| Outline Dimension | 3100*2450*3200mm |
Product Description
Specifications
1.ISO9001:2008&CE2.Advanced electric control system
3.Low noise, smooth operation
4.Single mixing axle
5.Long working life
1.Introduction
The series of JDC concrete mixers is a kind of the single horizontal shaft mixer that integrates with mechanical, hydraulic and electrical. The mixing system depends on the cylindrical gear to rotate, it works reliably. The feeding part adopts the lifting electric machine, stable and safe. The discharging part adopts dual-role hydraulic cylinder to rotate, thereby outfeeding is fast and clean. The hydraulic system is controlled by the reversing valve, and it is easy to operate. The series of mixers can mix concretes, slurry, mortar with all kinds of mixing proportion. Be suitable for all types of small and medium-sized building projects. It is the ideal concrete stirring equipment for users. In addition to use as a single device, it can also composite of simple-type concrete batching station combined with the batching machine.
2.Technical Parameters
Type | JDC350 | JDC550 |
Discharging volume | 350L | 500L |
Feeding volume | 560L | 800L |
Productivity | 18-21m3/h | 25-30 m3/h |
Max. aggregates diameter(scree/gravel) | 60/40mm | 80/60mm |
Stirring shaft speed | 28r/min | 24 r/min |
Power of the whole machine | 15.55kw | 20.75kw |
Mixing time | 305 | 305 |
Overall dimension(L ×W ×H) | 2528×2340×2850mm | 2600×2789×3200mm |
Dragging speed | 20km/h | 18 km/h |
Total weight | 3700kg | 400kg |
