Home > Products > Foam Concrete Equipment > Foam Concrete Clc Block Production Line Foam Generator
Foam Concrete Clc Block Production Line Foam Generator
- Shanghai Qingdao Tianjin etc.
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
LEC Construction Using Foam Concrete Making Machine Sale to India
-
LD Output 30m3/h Brick Block Machine Clc Block Production Line Price in India
-
China New Foam Concrete Pump Machine LD-20 for CLC
-
LD Raw Material Foam Lightweight Concrete Manual Method and Interlock Block Making Machine
-
LD Series Foam Concrete Mixing and Pumping Machine Batching Plant
-
LD Series CLC Protein Concrete Foaming Agent for Cellular Lightweight Conrete
Product Details
| Condition | New | Type | Other, concrete foam generator, concrete foam generator | |
| Brick Raw Material | Concrete | Processing | Brick Production Line | |
| Method | Hydraulic Pressure | Automatic | Yes | |
| Capacity | 15-20m³/h | Place of Origin | Henan, China | |
| Brand Name | LEC concrete foam generator | Model Number | LD-2000 | |
| Voltage | 380V/ as required | Power | 22.75kw | |
| Dimension(L*W*H) | 2600*2250*3000mm | Certification | CE ISO | |
| Warranty | 12 Months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
foam concrete machine
foam concrete clc block production line foam generator
Brief Instruction:
This fully foamed concrete foam generator's operation proceeds is automatic, combined the material feeding, foam generating, mixing, and transportation together. The concrete delivering pump, coming with double hydraulic cylinder. Basing on the high output pressure, it can deliver the foam concrete to the high building. It also equips with moving wheels, universal wheels, the stretch frame, easy to move to other sites.
Concrete Foam Generator --Mixer Technical Data:
Model | LD-2000 |
Production Capacity | 15-20 m³/h |
Output Volume | 1500 L |
Material Input Volume | 2000 L |
Main Shaft Revolution | 32 r/min |
Hopper Lifting speed | 22 m/min |
Mixing Motor | 11 kW |
Winding Motor | 5.5 kW |
Water Pump Motor | 1.1 kW |
Vibrating Motor | 0.55 kW |
Foaming System | 5.5 kW |
Max. Moving Speed | 15 km/h |
Total Weight | 3200 kg |
Overall Dimension | 2600x2250x3000 mm |

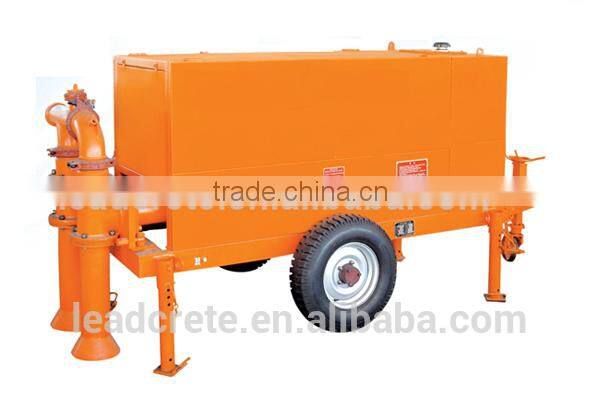

Concrete Foam Generator --Pump Technical Data:
Model | LD-30 |
Max. Output | 30 m³/h |
Max. Conveying Pressure | 8 MPa |
Max. Horizontal Transporting Range | 600 m |
Max. Vertical Transporting Height | 200 m |
Max. Particle Size of Aggregates | 8 mm |
Cylinder Bore | 80 mm |
Delivery Cylinder Bore | 140 mm |
Max. Pressure of Hydraulic System | 24 MPa |
Oil Pressure Box Volume | 200 L |
Motor Power | 30 kW |
Total Weight | 2200 kg |
Overall Dimension | 3100x920 x1300 mm |
Procedure of Concrete Foam Generator:
Concrete foam brick is just produced from the concrete foam generators and injected into slurry of cement, fly ash and water in foam concrete mixture. It creates many small air cells which are uniformly distributed throughout the concrete and create cellular from 300kg/m3 to 1600kg/m3. The volume of air cells in foam concrete determines the density. The final mixture is then used for different applications without any vibration or compaction. Fly ash which is a waste-product at thermal power stations. The foam concrete is thus a green building material.

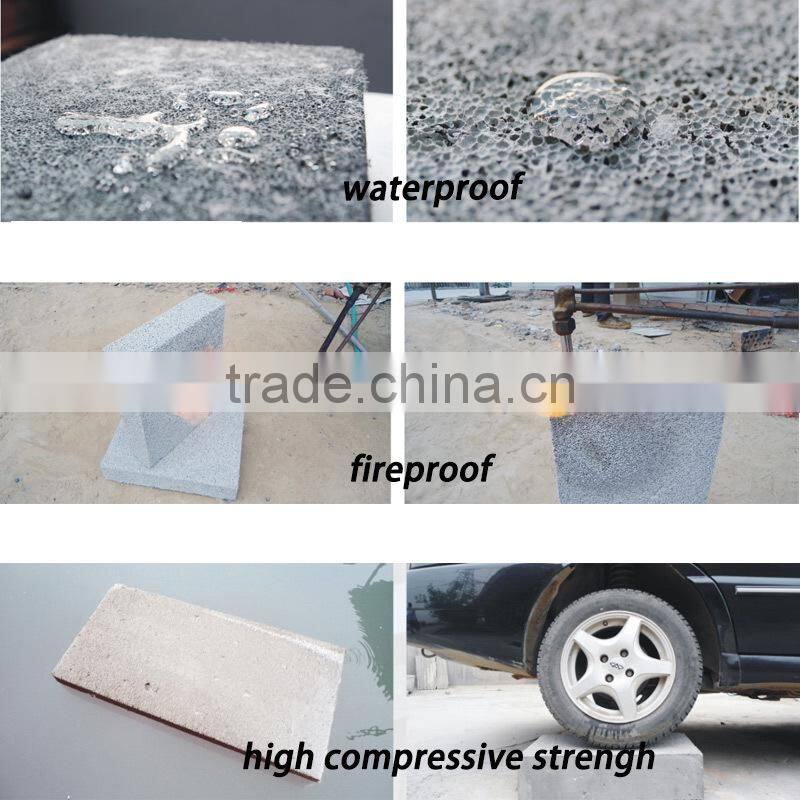

Concrete Foam Generator's Features:
- Light weight: with density ranging from 300 to 1800 Kg/m3. Three times less weight then clay or fly ash brocks.
- Heat resistance: equivalent thickness of dense concrete block would have to be more than 5 times thicker and ten times heavier.
- Sound Insulation: excellent for Sound insulation which keeps the house cool in Summer and warm in Winter, and the more thick, the better effect.
- Fireproofing: With a just 100mm thickness of block with density of 1000 kg/m3, offers fire endurance for 4 hours.
- Easy to handle: Foam concrete blocks are easy and quick to install, thus minimizing construction costs. And save cement, sand, water, labour, energy and time.
Concrete Foam Generator Line:
- Foam Concrete Mixer
- Foam Concrete Pump
- Foam Concrete Block Mould
- Foam Concrete Block Cutting Machine
- Foaming Machine
- Foaming Agent
- Foam Concrete Hardener

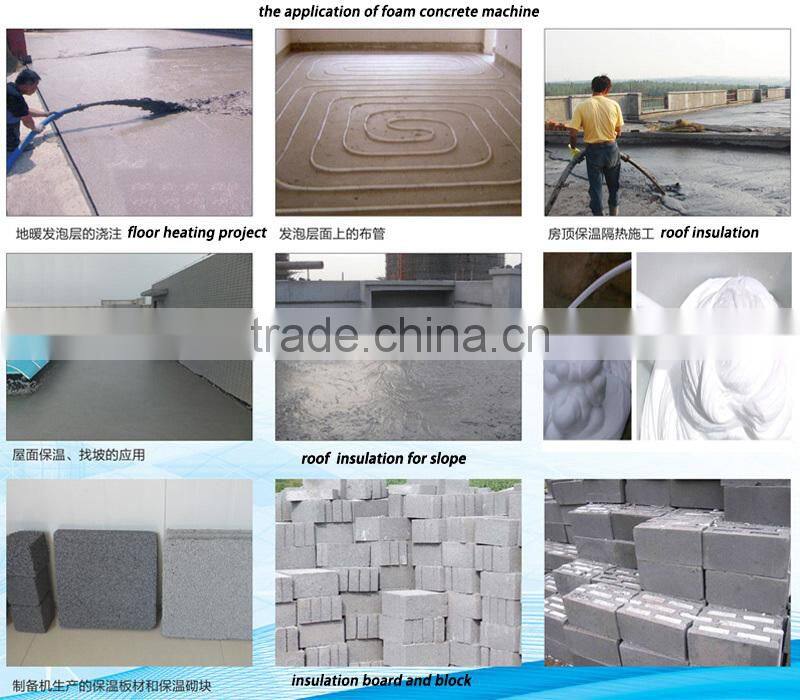

The other Application and advantage as following:
- Precast wall panels
- Acoustic construction and Green construction
- Roofing insulation and waterproofing
- Floor heating system
- Gap filling
- Sound inslution layer and tunnel lining filling
- Platform filling and mending

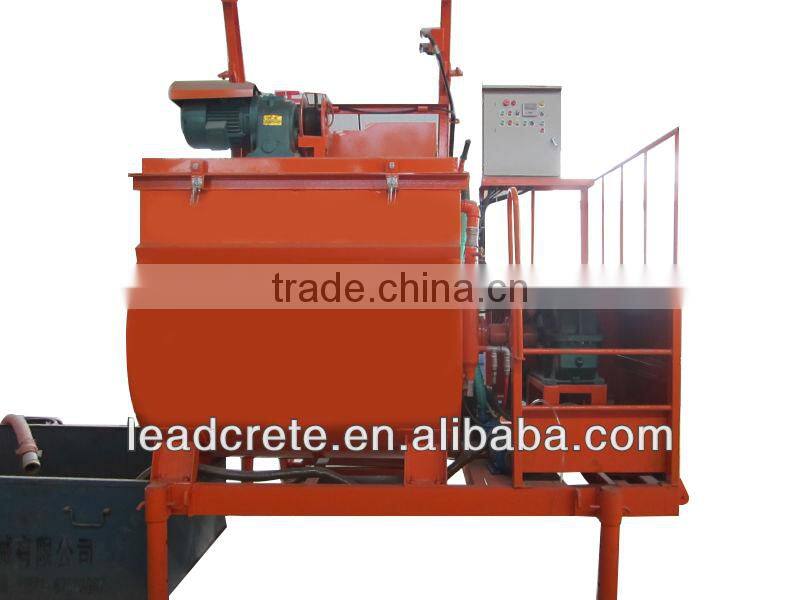

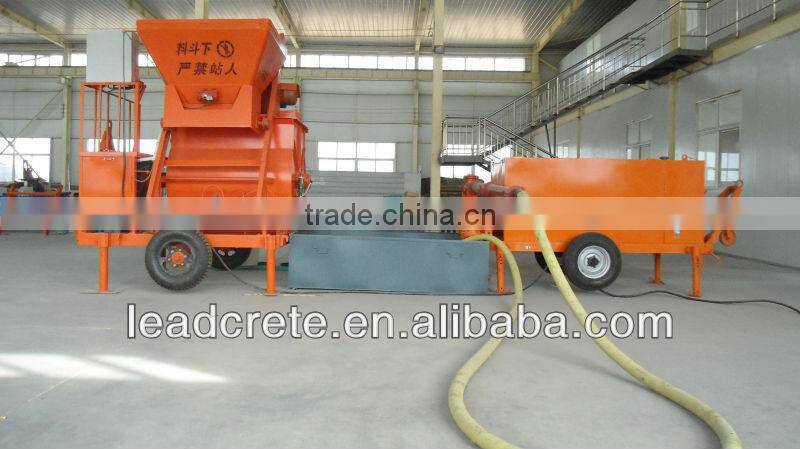

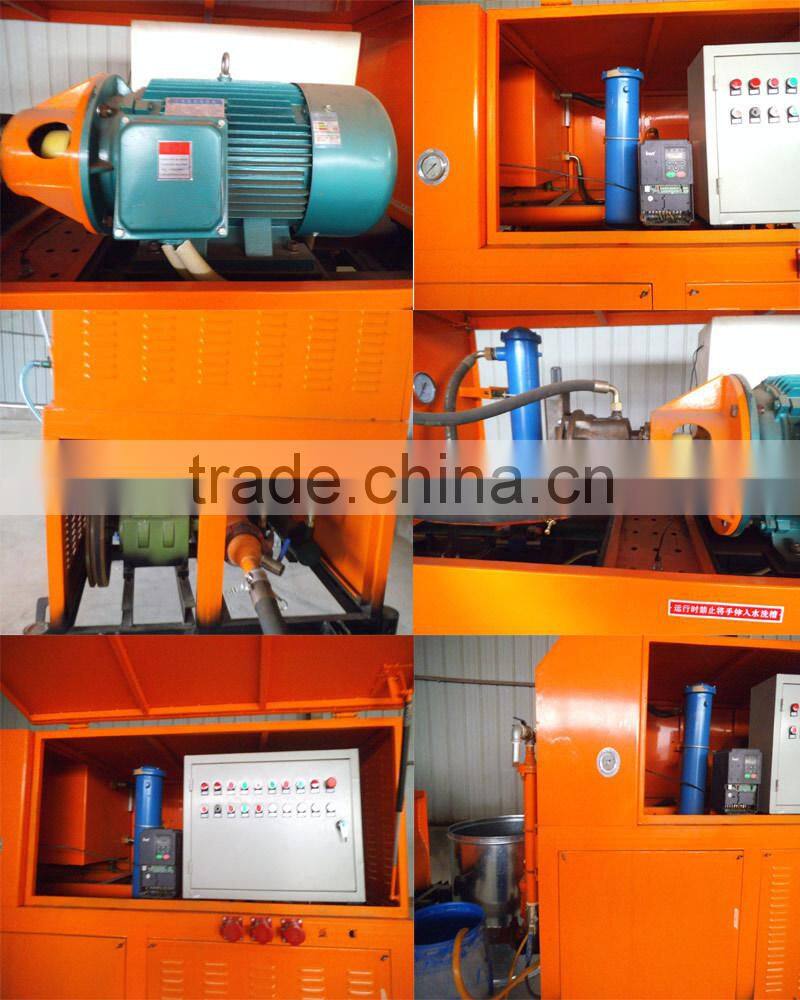

Mixer and Pump Detailed Parts Pictures:

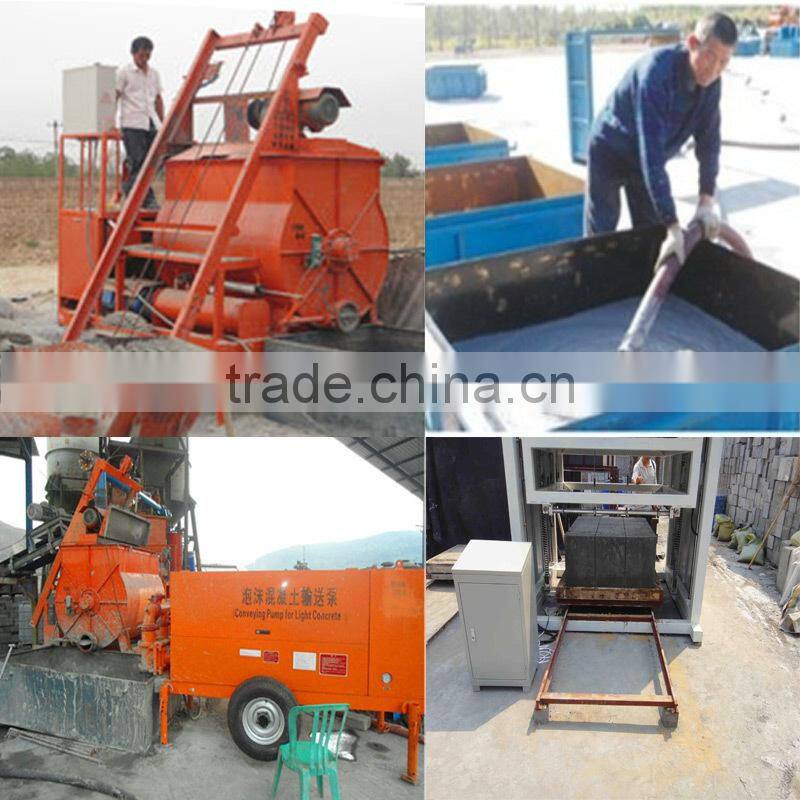

Working Pictures:
Block made by our machine:

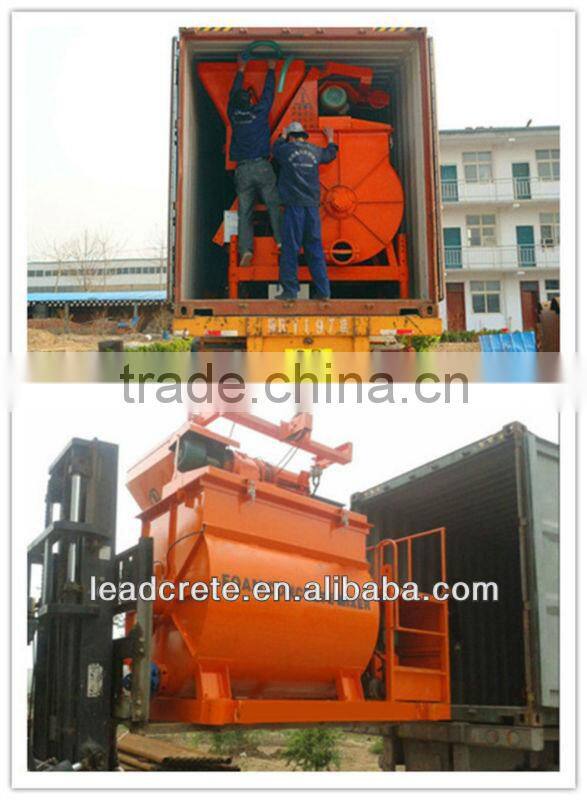

It usually shipped by a 40'' container:
concrete mixer (2600*2250*3000mm, Net weight 3200kg);
concrete pump (3100*920*1300mm, Net weight 2200kg).
To provide a world best quality of product and service with 100% customer focused. We strive always for honesty and best quality of products and devote ourself to become a foremost seller in foam concrete products, as well as to provide customer focused Products on time with integrity.
Lead Equipment Co., Ltd (LEC) is a leading and well-known manufacturer of Concrete Foam Machine. A few of employees have been working in designing and selling above machines for about twenty years, and they can provide their customers/clients with sincerely, friendly, timely technical consultation, technical support and after-sale service.
1. What is cellular light weight concrete (clc) ?
CLC is called as Cellular Light Weight Concrete and it is also called as Foam Concrete. It is a version of light weight concrete that is produced like normal concrete under ambient conditions. CLC Blocks are a cement-bonded material made by blending slurry of cement. Stable, pre-formed foam manufactured on site is injected into this slurry to form foam concrete. Fresh foam concrete looks like a milk- shake and the volume of slurry in the foam dictates the cast density of the foam concrete.
2. Why choose Lead concrete foam machine?
- Green Product
- Low Investment
- Quick returns
- Future product for Construction Industries
- Less competition in market
- Can earn more percentage of profit
- Easy to handle operations of the plant and can be owned without major engineering expertise
2. What is the electric voltage and rate?
A: Our local electric voltage is 380V and 50Hz and the electric voltage can be revised according to the local situation.
3. Warranty period your company offer for us?
A: 12 months after installation.
Thank you for stopping by, for getting offer please contact with us freely.
