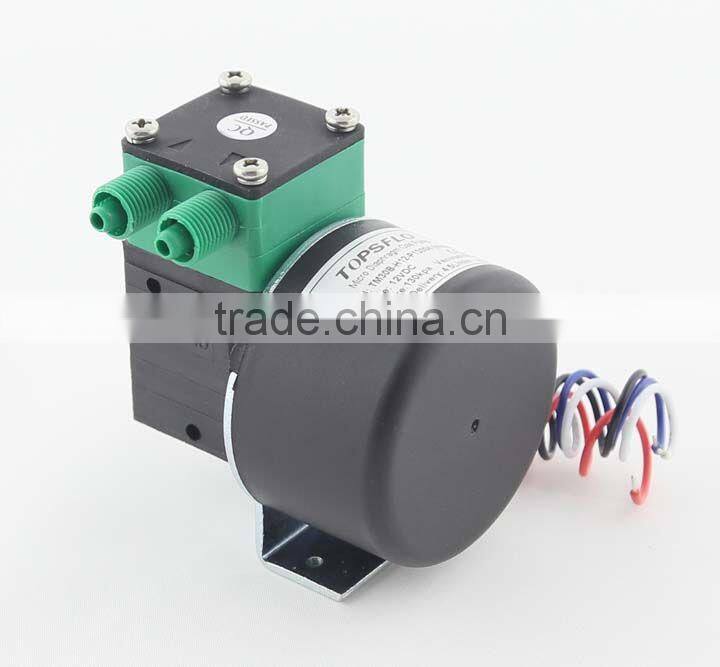

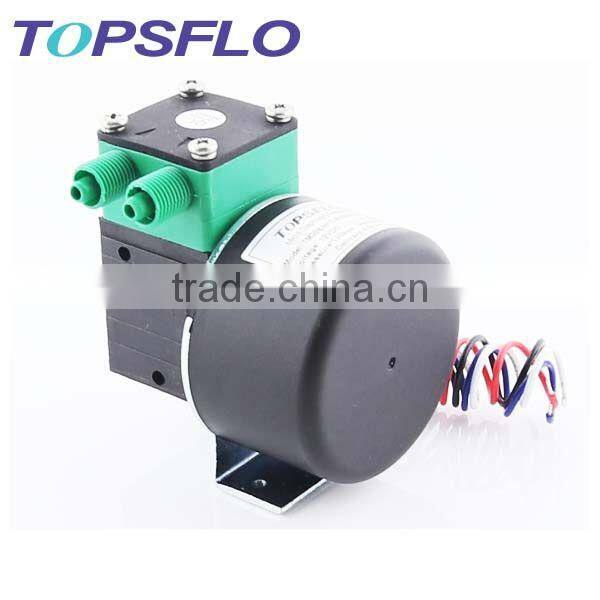

12v 24v dc Brushless Oxygen Therapy Air Pump
- Shanghai Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
High Temperature dc 24v Circulating Mini Keg Party Beer Pumps
-
High Temperature dc 24v Circulating Small an Easy-to-navigate System Pump
-
DC Brushless Long Life Span Beer Production Plant Pump
-
27L/min Flow dc Brushless Motor Long Lifetime Beer Brew Pump
-
High Temperature dc 24v Circulating Homebrew Kegging Systemskegs Pump
-
High Temperature dc 24v Circulating Small Brewing Kettles Equipment Pump
Product Details
| Brand Name | TOPSFLO | Model Number | TM30B-H AIR PUMP | |
| Theory | Vacuum Pump | Structure | Diaphragm Pump | |
| Usage | Air Pump | Power | Electric | |
| Standard or Nonstandard | Other, standard or customized | Pressure | Other, pressure 130kpa vacuum 65kpa | |
| Application | Other, air gas vacuum |
Product Description
the circular power from the motor is converted into oscillating movement by an
eccentric, which moves up and down its central point, this motion is then transferred
to a diaphragm by means of a connecting rod, an elastic diaphragm, which in
conjunction with an inlet and outlet valve creates a pumping action.

2. Performs Quieter
3. Lasts Reliably Longer
4. Uncontaminated flow
5. Little vibration
6. High level of gas tightness
7. Extreme chemical resistance
1. Uncontaminated flow.
2. Non-metallic construction.
3. Oil-Free, Corrosion resistant
4. Long life,High efficiency
5. Compact size, Low Weight
6. Low noise level&vibration
7. Maintaince free.
8. High level of water tightness thanks to the closed
diaphragm surface and special sealing system.
9. Can operate in any installed position
Specification
| Voltage: | 12/24VDC |
| Current: | 200mA |
| Max pressure | 130kpa |
| Max vacuum | 65kpa |
| Max flow rate | 4.5L/min |
| Long lifetime | >10000hour |
| Materials | pump head Nylon, membrane EPDM / PTFE, valve EPDM / FPM |
| noise | Super silent noise < 50dBfrom 1 Meter |
| Motor | dc brushless motor |

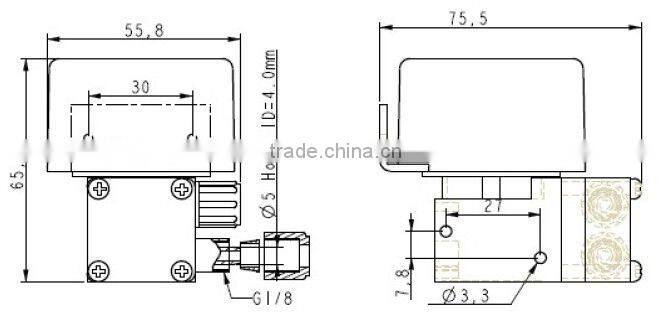

| Pump Weight: 220g; | Size:65*54*75 mm; |
Application:
The versatility of TOPSFLO pumps allows a wide field of applications to be covered. Over many years our pumps have proved themselves in the following areas:
Industrial pressure and vacuum applications
Portable Analytical Instruments
Medical Diagnostic Equipment
Air Quality Sampling Monitors
Respiration Monitors
Gas or Odor Leak Detectors
Our Micro Diaphragm Pumps are available with a choice of four different drive motors.

| ![]() | ![]() | ![]() | ![]() |
| A motor | B motor | C motor | D motor | H motor |

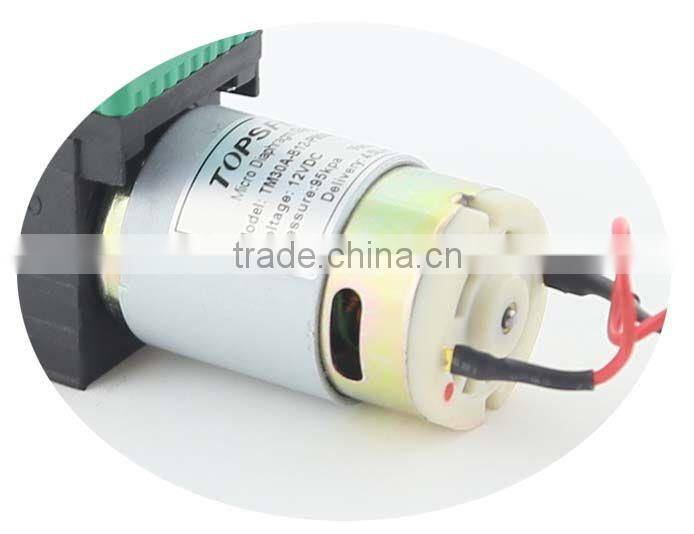

A- Premium duty brush DC motor
lifetime 5,000hours,longer endurance lifetime than other normal DC membrane pump

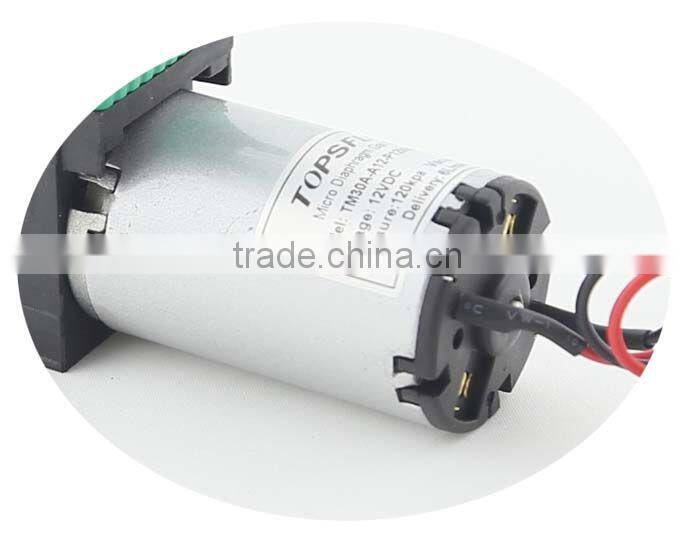

B- Economical brush DC motor
lifetime:1,500hours

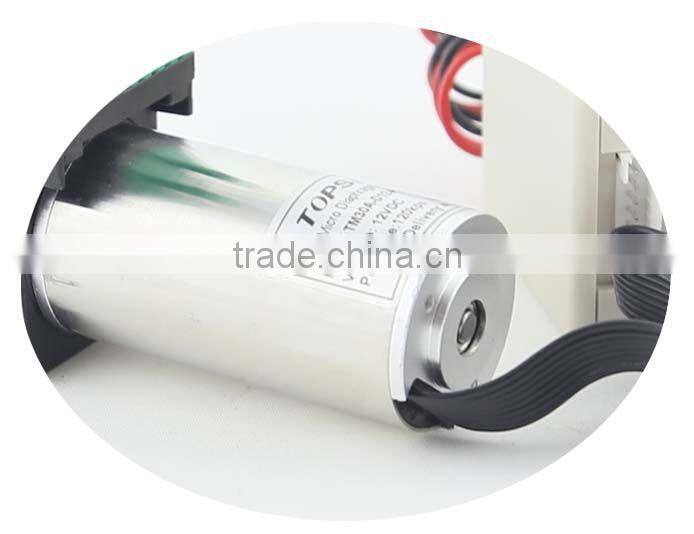

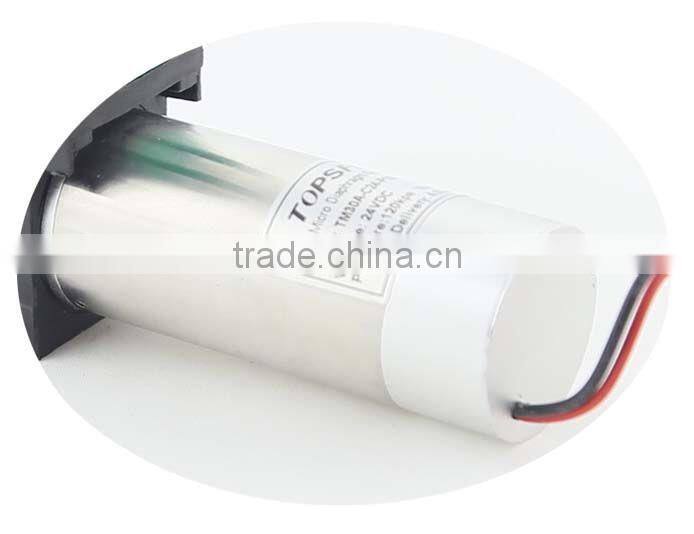

C- Coreless Brushless DC Motor
A brushless electronically commutated dc motor (electronics integrated in motor), the motor runs vibration and spark free, almost silently, is very dynamic and extremely durable, ideal life-time 15000 hours
D- Coreless Brushless DC motor with outer controller
With all advantages of coreless brushless DC motor, ideal life-time 15000 hours, and outer controller can realize more control functions of PWM or 0 -5V speed adjustment, brake, ~ instant starting work
H- Brushless DC Motor
Long lifetime 10000hour
