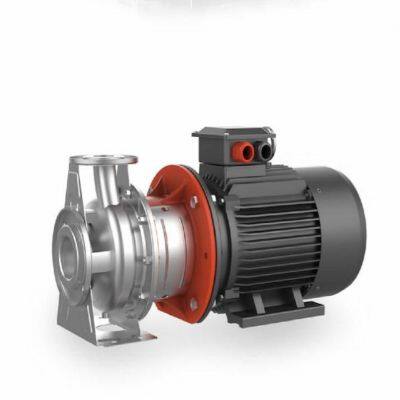

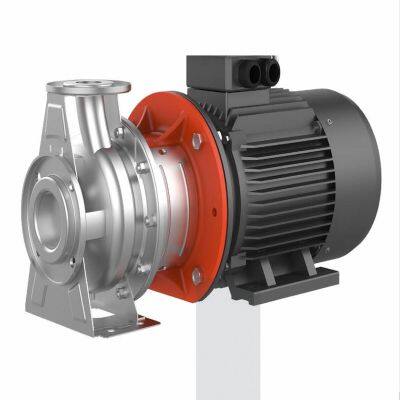

ZS Series Stainless Steel End-Suction Single Stage Centrifugal Pump

Stainless Steel End-Suction Single-Stage Centrifugal Pump

Technical parameter:

Flow rate, Q: maximum 132 m3/h

Head, H: maximum 58m

Product overview

ZS series water pump is a kind of stainless steel end suction single stage centrifugal pump, using stamping (stretching, expansion, cold extrusion) welding and other advanced technology production, high component interchangeability, suitable for small flow, high head, with beautiful appearance, light structure, high efficiency and energy saving, durable and light corrosion resistance, low noise and other characteristics.

Product application

Water supply: water plant filtration, transmission and zoning water supply and main pressurization

Industrial pressurization: process water system, cleaning system

Industrial water: boiler feed water, condensation system, cooling and air conditioning system, machine tool supporting, acid and alkali transmission

Water treatment: distillation system or separator, swimming pool, etc

Others: farmland irrigation, petrochemical industry, medicine and health care, etc

Application conditions

Flow rate range: 0-132 m3/ h

Lift range: 7-58m

Power range: 1.1-22 kW

Liquid temperature: -15C- + 80℃

Maximum working pressure: 10bar

Maximum elevation: 1,000 m

Electrical Appliances

Fully enclosed air-cooled motor

Class F insulation protection class IP55

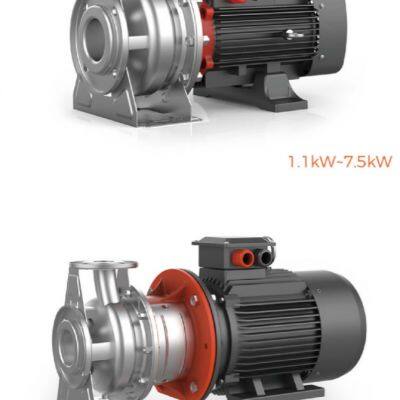

The standard configuration is level 3 energy efficiency motor in GB18613-2012,> 7.5kW model is optional; 7.5kW and below are coaxial, above 7.5kW is standard motor + sleeve shaft

Product characteristics

Horizontal single-stage single-suction centrifugal pump, with axial water absorption and radial drainage

The inlet and outlet meet the GB / T5662 and EN733

Hydraulic components are all stainless steel plate stamping (stretch, expansion, cold extrusion) welding
