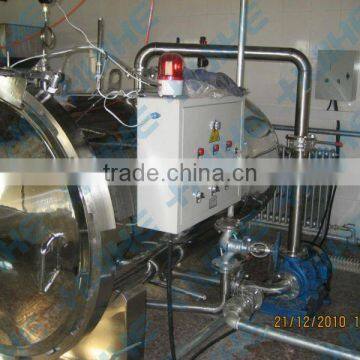

Full-Autoclave Preparing Side Spray Autoclave

FOB Price

US$ 6,850 - 61,200 / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Zhejiang, China
Brand Name	HH	Model Number	DN1200*3000
Usage	Diary Product	Type	Autoclave
Voltage	380V	Power(W)	10Kw-700Kw
Weight	800kg	Dimension(LWH)	15009001900mm
Certification	CE ISO	Warranty	12 Months
After-sales Service Provided	Engineers available to service machinery overseas

Feature :

1. Fast temperature rise .

2. The temperature inside the tank is stable with even heat distribution .

3. Energy saving

4. Indirect heating and cooling prevent twice pollution.

5. Perfect pressure control is suitable for sterilization of gas-bearing packaging .

6. Perfect temperature rise and fall are suitable for sterilization of fragile bottles.

7. Full-automatic control system .

8. Temperature and pressure record curve drawing .

9. Heat distribution test picture .

Model		RJD-500	RJD-700	RJD-900	RJD-1000	RJD-1100	RJD-1200	RJD-1300	RJD-1500
Sterilizing Tank	ID (mm)	500	700	900	1000	1100	1200	1300	1500
Sterilizing Tank	Height (mm)	800	1200	1500	2000	2400	3000	3750	3750
Volume of the Inside Tank (m3)		0.2	0.5	1	1.8	2.5	3.5	5.2	7
Sterilizing Baskets		1	2	2	2	3	4	4	4
Steam Consumption kg/cycle		85	150	250	285	350	385	420	500
Design Temperature (°C)		147
Design Pressure (Mpa)		0.35
Steam Work Pressure (Mpa)		0.4-0.6
Cooling Water Work Pressure (MPa)		0.3
Compressed Air Work Pressure (Mpa)		0.7
Outside Sizes	L (mm)	1150	1650	2050	2600	3050	3700	4500	5650
	W (mm)	750	950	1150	1250	1350	1450	1550	1750
	H (mm)	1000	1200	1400	1500	1600	1700	1800	2050
