Home > Products > Stainless Steel Pumps > Single Flange Butterfly Valve
Single Flange Butterfly Valve
USD $50 - $300
/ Piece
1 Piece(Min.Order)
- 6000 Piece / Pieces per Month
- Ningbo/Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Butterfly | |
| Pressure | Vacuum | Power | Pneumatic | |
| Material | Stainless Steel | Temperature of Media | Normal Temperature | |
| Port Size | Standard | Place of Origin | Zhejiang, China | |
| Model Number | Q11F | Brand Name | HUIHE |
Product Description

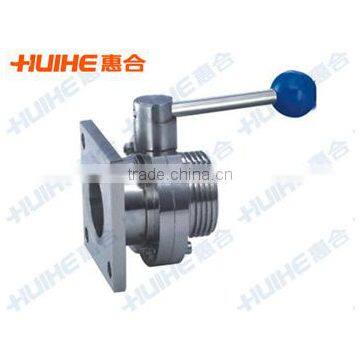

Single Flange Butterfly Valve
Single flange butterfly valve is widely used in water system, sewage system, air condition system, chemical industry, pulp factory, power supply, medicine industry, petroleum area and other systems for closing and adjustment.
Structure of Single Flange Butterfly Valve
Technical Parameters of Single Flange Butterfly Valve
| Product Name: | Stainless steel manual single quatet flange single thread butterfly valve with pull handle |
| Valve Body Material: | 1.4404/1.4301, SS304/SS316L |
| Seal Material: | EPDM (standard) FPM/SILICON/NBR, FDA177.2600 |
| Mex working pressure: | 10Bar |
| Max. Working Temperature: | 120 degree C |
| Availably size: | DN40-DN100 |
| Availably connection: | Clamp / weld / thread/ weld thread/ flange |
| Availably standard: | 3A/DIN/SMS/RJT/ISO/IDF |
| Operated: | Manual,Pneumatic, Electric |
| Control: | Sensor, C-TOP, C-top controller(AS-I) |
| Certificate: | ISO, PED/97/23/EC, FDA.177.2600 |
| Handle application: | Two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position stainless steel handle |
| Application scope: | Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc |
| Packaging Details: | Bubble pack for each valve. Outside packing are carton or plywood cases. Or as per the request of customers. |
| Delivery details: | Usually within 20 days after receiving T/T down payment. |
