Film Evaporator
USD $3,800 - $24,500
/ Unit
1 Unit(Min.Order)
- 1500 Unit / Units per Month
- Ningbo or Shanghai Port
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Condition | New | Application | Distillation | |
| Power Source | Electric | Process | Thermal | |
| Place of Origin | Zhejiang, China | Brand Name | HUIHE | |
| Model Number | RE-501 | Voltage | 380V | |
| Power(W) | 40W | Dimension(L*W*H) | Capacity | |
| Weight | 160KG | Certification | CE | |
| Warranty | 12 Months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Film evaporator has characteristics of high heat transfer efficiency, high evaporation speed and short material stay time, so is especially suitable for the evaporation of the thermal sensitive material.
Classification of Film Evaporator
Model/Parameters | BM2.2 | BM5.5 | BM8 | BM12 | BM16 |
Evaporation area m2 | 2.2 | 5.5 | 8 | 12 | 16 |
Evaporation working pressure Mpa | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 |
Evaporation | 140 | 350 | 550 | 850 | 1100 |
Steam consumption | 155 | 385 | 605 | 935 | 1265 |
Weight Kg | 300 | 520 | 750 | 1020 | 1250 |
Body size mm | 2000*650*3500 | 2300*800*3500 | 2700*950*4500 | 2900*950*5000 | 2900*950*5200 |
Structure of Film Evaporator

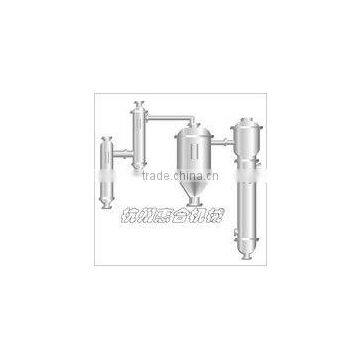

Film evaporators unit is composed by the evaporator, liquid-gas separator, preheater three parts and a simple separator. Evaporator is rising membrane type heat exchanger tube.
Usages of Film Evaporator
It is used in pharmaceutical, food, chemical industry for concentration of dilute solution.
Characteristics of Film Evaporator
The evaporator has characteristics of great production capacity, high thermal efficiency, short material heating time etc. All the parts contacted with material made of stainless steel with good corrosion resistance, is accord with drug health requirements.
Technical Parameters of Film Evaporator
Model/Parameters | BM2.2 | BM5.5 | BM8 | BM12 | BM16 |
Evaporation area m2 | 2.2 | 5.5 | 8 | 12 | 16 |
Evaporation working pressure Mpa | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 |
Evaporation | 140 | 350 | 550 | 850 | 1100 |
Steam consumption | 155 | 385 | 605 | 935 | 1265 |
Weight Kg | 300 | 520 | 750 | 1020 | 1250 |
Body size mm | 2000*650*3500 | 2300*800*3500 | 2700*950*4500 | 2900*950*5000 | 2900*950*5200 |
