WZ series energy saving vaccum concentrator
- 1000 Set / Sets per Month
- Ningbo or Shanghai port
- T/T L/C D/P D/A
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | HH | |
| Model Number | wz | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

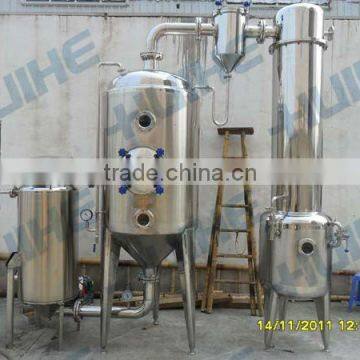

The circular concentration can, consisting of four parts of can body, condenser,gas-liquid separator and liquid receiving barrel, is available to concentrate and distill the material liquid in such industries as pharmacy, food and chemistry and recycle the organic menstruum . The adoption of reduced pressure concentration shortens the time for concentration, avoiding the destruction to effective component inside the thermal sensitive material. The contact part of the concentrator
and the material is made with the stainless steel, resistan to corrosion and high durable, meeting the standard of the GMP.
technical parameter
Mode | WZ-500 | WZ-1000 | WZ-1500 | WZ-2000 |
Evaporative capacity(kg/h) | 500 | 2300 | 3200 | 6300 |
Alcohol recovery density (%) | 80~85 | |||
Steam pressure(Mpa) | 0.03~0.09 | |||
Vacuum degree(Mpa) | -0.05~ -0.08 | |||
Evaporator volume (m³) | 1.0 | 1.5 | 2 | 2.5 |
Liquid through volume(m³) | 0.3 | 0.5 | 0.8 | 1.0 |
Steam consumption(Kg/h) | 520 | 1050 | 1550 | 2100 |
Water consumption(Kg/h) | 7 | 10 | 15 | 20 |
Heating steam mouth(mm) | 40 | 50 | 80 | 100 |
Cooling water in&out mouth(mm) | 40 | 50 | 65 | 80 |
Parameters | WZ-500 | WZ-1000 | WZ-1500 | WZ-2000 |
Evaporation capacity (kg/h) | 500 | 1000 | 1500 | 2000 |
