Dynamic extracting tank of Traditional Chinese Medicine

Specifications

Chinese medicine dynamic extracting tank Brief introduction of Chinese medicine dynamic extracting tank

This chinese medicine dynamic extracting tank is suitable for extraction and concentration of ingredients from medicine, plants, pharmaceutical, food and chemical industry pressure, micro-pressure, decoction, warm dip, heat reflux forced through the bad, infiltration, aromatic oil and organic solvent recovery concentration, etc. a variety of processes. Very suitable for universities, research institutes and enterprises laboratory research and trial production of small and medium sized production lines.

Features of  chinese medicine dynamic extracting tank

1. Equipment efficiency high: This chinese medicine dynamic extracting tank is the latest ultra-compact Vacuum pressure dynamic herbal extracts heat reflux enrichment equipment developed by our company's, this device optimize the product on the basis of the original Single vertebra extraction tank and oblique vertebral extraction models,integrated the small Enrichment equipment in this chinese medicine dynamic extracting tank made the extraction, filtration, concentration, essential condensation and other production processes Complete by one step to saving raw materials and working hours.

2. Material conversion rate high: As in the extraction process, the hot solvent (water or alcohol, etc.) added continuously to the drug substance,successive dissolve the active ingredients from top to bottom through the medicinal herbs layers, So that the active ingredients of the Original liquid increased by 1 times than ordinary extraction.

3. extraction unit can Vacuum extract, effectively reduce the loss of heat-sensitive active ingredients. Meanwhile, the extraction unit uses frames mixing, so that a large volume of Chinese herbal medicines can be fully contact with solvents, accelerate the precipitation of the active ingredients from API.

4. High efficiency of chinese medicine dynamic extracting tank : Feeding time, the original liquid in a closed recycle equipment. The active ingredient can be continuously extracted from the raw materials.Therefore, the device can be saving 30% Solvent under the same quantity of raw materials extraction amount. As the steam in condensed is secondary use, the chinese medicine dynamic extracting tank can save energy consumption of about 50%.

5. The chinese medicine dynamic extracting tank and the enrichment equipment can operate independently in the working process, it can also be linked operation.

6 Take the convenient for taking dregs into consideration, the equipment Match with large aperture manhole or hand hole, it’s also match with a shelf filter and Pipeline filtration system to prevent small dregs flowing into the concentrated tank.

7. Equipment Thermal efficiency high: This device configuration a small overheated generator, It’s do not need an external boiler heat source, etc.

8. High efficiency: Because using hot water generator, heating, cooling speeds are fast. It can do more batches of production than vacuum concentration which heated by HTF at the same time.

9. Extraction temperature digital display and control, on-line monitoring, extraction tank and concentration tank with sight glass for easy observation of the tank working condition.

10. The chinese medicine dynamic extracting tank is a compact structure, small footprint, the actual area in about 2 ~ 3M2. The production operations meet the GMP pharmaceutical standard.

Chinese medicine dynamic extracting tank parameters (HCM - 200L)

1. Extraction and concentration unit electric heating power: 26KW. (If customers have steam, can be equipped with a buffer tank, external steam).

2. Vacuum: SZ-2.2kw.

3. Stirring motor: 0.75kw

4. Sanitary beverage pump: 0.37kw (also done CIP cleaning)

5. Extraction tank heating area: 1.85M2

6. Condenser Condensing area: 2.0 M2

7. Cooler size: 1.35 M2

8. Mezzanine Working pressure: 0.3MPa

9. Water extraction temperature: room temperature to 100 degrees (± 1 degree adjustable)

10. Alcohol extraction temperature: room temperature to 85 degrees

11. acuum: -0.05 ~-0.08MPa

12. Concentrated distillation temperature: 45 to 80 degrees

13. Extraction tank electric heater: 13.5kw (extraction tank comes with mini hot water generator heating)

14. Cans condensed electric heater: 10.5kw (concentrator comes with mini hot water generator heating)

15. Extraction tank effective volume: 200L

16. Extraction tank configurations: three thermal electric heating system. Cleaner Hand hole diameter 200mm. Oil heating system, extracting tank temperature digital display, adjustable.

17. Condensation tank effective volume: 150L, three-layer structure, a jacket for the Miller panel reinforcement structure, high degree of vacuum with heat and the electric heating system, heating system and concentrating tank temperature digital display, adjustable.

18. Material: The machine uses the high quality SUS304 2B, extracting tank, concentrated pot liner 3mm, jacket 3mm, outer casing 3mm.

19. Equipment Surface treatment: tank mirror-polished surface, the outer surface brushed matte processing.

20. Equipment size: 2100x850x2850 (L * W * H can be customized according to customer needs)

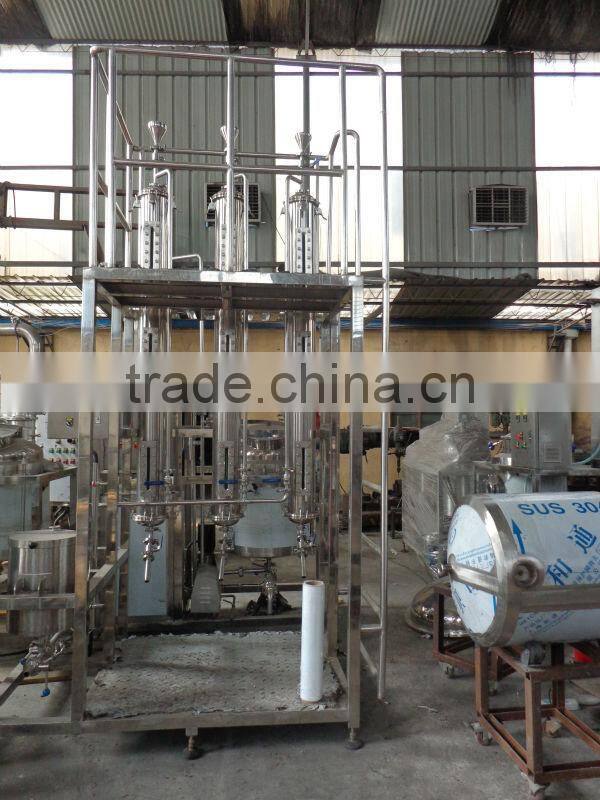

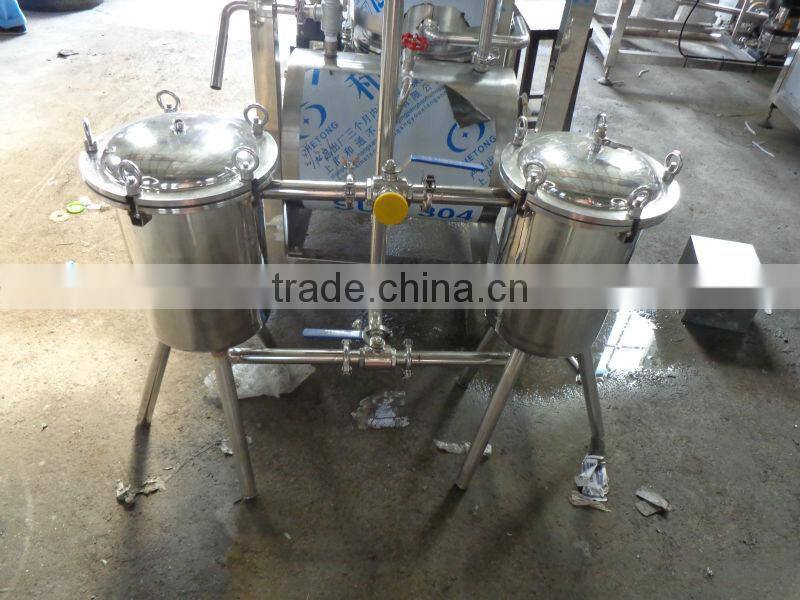

Pictures of the chinese medicine dynamic extracting tank
