Home > Products > Extraction&Concentration Equipment > Pharmaceutical Industry Herb Extract Concentration Making Equipment
Pharmaceutical Industry Herb Extract Concentration Making Equipment
- Shanghai
- T/T D/P D/A Credit Card PayPal
You May Like
-
Ted Dynamic Chinese Herbal Extraction Equipment
-
Good Price Automatic Solvent Oil Extraction Equipment
-
Most Effective Ultrasonic Herbal Oil Extraction Equipment
-
Most Popular Ultrasonic Extraction Stevia Equipment
-
Professtional Medical Ultrasonic Liquid Extraction Equipment
-
Hot Sale Chinese Herbal Essential Oil Extraction Equipment
Product Details
| Place of Origin | Shanghai, China | Brand Name | BETTER | |
| Model Number | HST-10L Industry Herb Extract Concentration Making Equipment | Application | Liquid | |
| Type | Extractor | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Pharmaceutical Industry Herb Extract Concentration Making Equipment
Introduction of Pharmaceutical Industry Herb Extract Concentration Making Equipment
It is suitable for normal pressure and temperature ultrasonic extraction, ultrasonic extraction, dynamic hot
reflux extraction and extraction by organic solvent recovery and other process in Chinese traditional medicine,
health products, biological, pharmaceutical, cosmetic and food industries.The equipment can be dynamically
continuous ultrasonic extraction.This is the ideal equipment for colleges and universities, research institutes,
research and development departments and laboratories of enterprises and institutions,and many varieties,
small batch production of pharmaceutical plant.
Main Datas of Pharmaceutical Industry Herb Extract Concentration Making Equipment
| Model | Capacity | Hot water generator power | Material | Heating Area of Extraction Tank | Condensing Area of Condenser | Vacuum pump power |
| HST10 | 10L | 6KW | SUS304 | 0.21M2 | 0.22 M2 | 0.55KW |
| HST20 | 20L | 8.8KW | 0.28 M2 | 0.5 M2 | 0.55KW | |
| HST30 | 30L | 10KW | 0.33 M2 | 0.72 M2 | 1.5 KW | |
| HST50 | 50L | 12KW | 0.5 M2 | 0.83 M2 | 3KW | |
| HST100 | 100L | 24KW | 0.98 M2 | 0.95 M2 | 4KW | |
| HST150 | 150L | 25KW | 1.45 M2 | 1.2 M2 | 4KW | |
| HST200 | 200L | 27KW | 1.85 M2 | 1.5 M2 | 6.5 KW | |
| HST300 | 300L | 35KW | 2.85 M2 | 2.3 M2 | 8KW |
Equipment control system: (two choices according to demand)
NO. | functional description | Digital display control system | PLC touch screen automatic control |
1 | Heating temperature control | Digital temperature control table | Dynamic display of touch screen, setting |
2 | Ultrasonic power control | digital control | The LED screen dynamic display, setting, control |
3 | Time display | digital control | digital control |
4 | Key valve | Manual/ball valve, butterfly valve | Pneumatic valve/solenoid valves |
5 | Working condition | digital display | Touch screen process shows |
6 | Parameters of the switch control | Manual push button/button | Touch screen display, setting, control |
Parameters of Pharmaceutical Industry Herb Extract Concentration Making Equipment
- Ultrasonic generator: 28 KHZ ,55 KHZ).
- Filter material: stainless steel material basket,stainless steel filter.
- Ultrasonic control: digital ultrasonic control
- The extracting tank heating area: 0.21 M2
- Ultrasonic timer: digital
- Heating timer: digital
- Interlayer water pressure: the atmospheric pressure
- Water extraction temperature: room temperature to 95 degrees,adjustable
- Alcohol extraction temperature: room temperature to 73 degrees,adjustable
- Power supply: single 50 HZ, 220 V
- Extraction tank volume: 10L (Three layers of insulation hot water heating system.)
- Extraction tank inside the water cycle: small heat pumps.
- Material: the whole machine all adopt high quality food grade SUS304 2B, suitable for weak acid,
- weak alkali cleaning equipment
- The equipment surface treatment: mirror polishing tank surface, outer surface drawing inferior smooth processing.
- Device size: (length * width * height,can be customized according to customer's requirements)

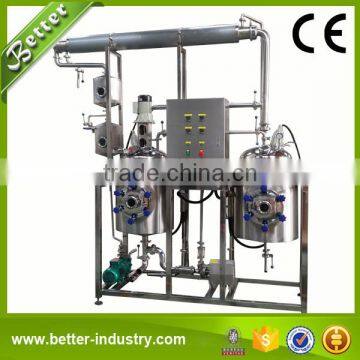

Picture of Ted Dynamic Chinese Herbal Extraction Equipment
Payment Term
If the total amount below $5000, it should be 100% prepayment.
If the total amount above $5000, it should be 50% prepayment; the balance paid before loading.
Delivery Time
30 working days after prepayment received
Quality guarantee
One year after shipment excluding the wearing and tearing parts.
Validity of the quotation
This quotation is valid for one month
Installation
We will assemble and test the machine before packing. Also send English manual. If customer need, we will send one engineer for assembling and training of workers. USD100 per person per day, food, accommodation and air-ticket will be on clients.
What does BETTER need from me to quote a price?
1.Raw material
2.Production capacity per batch
What is the oil yield?
The oil yield depends on oil content of your material.If the oil content of your material is high,you can get more essential oil.
Can I use the machine to extract several kinds of raw materials?
Yes,of course.
Can I do extraction test with my own raw material?
Yes,of course.We can do extraction test and send you videos and test report for your
Reference.
What heating way does your machine support?
Electricity/gas/wood/steam heating.
What is your material of your machine?
Stainless steel(Standard type is SUS304,it can be customized according to your request)
How long does it take to produce the machine once I place my order ?
Usually the delivery time is 30 working days after prepayment received.
What is the minimum quantity I must order?
We don’t technically have minimums, but if you order more than 3 sets once,we can give you
a discount.
Do you have machines in stock?
No,our machine is produced according to your request.
How will my order be packed, can you provide the installation service?
Packed in plywood case.
We will send English manual. If customer need, we will send one engineer for assembling and training for workers. USD80 per person per day, food, accommodation and air-ticket will be on clients.
Why Choose BETTER?
1.We are Alibaba Assessed 5 years Gold Supplier.
2.We are a factory manufacturing Pharmaceutical Industry Herb Extract Concentration Making Equipment , best production capability, best quality control, best Service.
3.Inspected by the Inspection Institution of Bureau Veritas Certification.
4.100% QC inspection Before Shippment.
5. CE listed,competitve price.
Send your Inquiry Details in the Below, Click "Send" Now! Specific information and Accurate quotation
are waiting for you.
Thanks for your interest in our products!If you have any question,pls feel free to contact us!
