EC10 Stainless Steel Essential Oil Extractor on sale

Specifications

Special Design:
1. Steam extraction part is popular with the structure of basket-in-water.

2. Operation part has adopted PLC or touch screen control system, this accords to customer’s demand.

Features:

1. By steam-distillation to reach the extraction of essential oils.

2. Easy operation. One people can operate this Essential Oil Extractor easily.

3. High efficiency. Using indirect heating of heat-transfer oil, it can quickly reach 100°C high temperature under the conditions of cleanness, safety and atmospheric pressure. If required, with vacuum pump, the extraction speed of essential oils will be more faster.

4.Compact structure. It covers only about 1.5 square meter.

1. Brief instruction of Essential Oil Extractor

Essentail Oil Extractor is popular in production of Chinese medicines, health products, Biological drugs, cosmetics and food, it use technology of biological and chemical separation, can extract Plant components efficiently by steam distillation, have good effect in collecting essential oil from plants.

2. Special Design of Essential Oil Extractor

a. Steam extraction part is popular with the structure of basket-in-water Essential Oil Extractor.

b. Our Essential Oil Extractor operation part has adopted PLC or touch screen control system, this accords to customer’s demand.

3. Main Technical Datas of Essential Oil Extractor

a. Power: 4.0kw, 380v/50Hz, Three Phase

b. Volume of Distillation Pot: 10L

c. Heating Area of Extraction Tank: 0.3M2

d. Condensing Area of Condenser: 0.7M2

e. Cooling Area of Cooler: 0.60m2

 f. Vacuum Pressure for Distillation: 0.3mpa

g. Moisture Extraction Temperature: 50~100c

h.  Power Of Electric Heater: 4 kw (Includes Oil Heating System

 i. Cooling From Tap Water

4. Pictures of Essential Oil Extractor

Essential Oil Extractor

200L Essential Oil Extractor

The Show for Temperature Control Cabinet of Essential Oil Extractor

 More Detail about Essential Oil Extractor

 Detail of Essential Oil Extractor

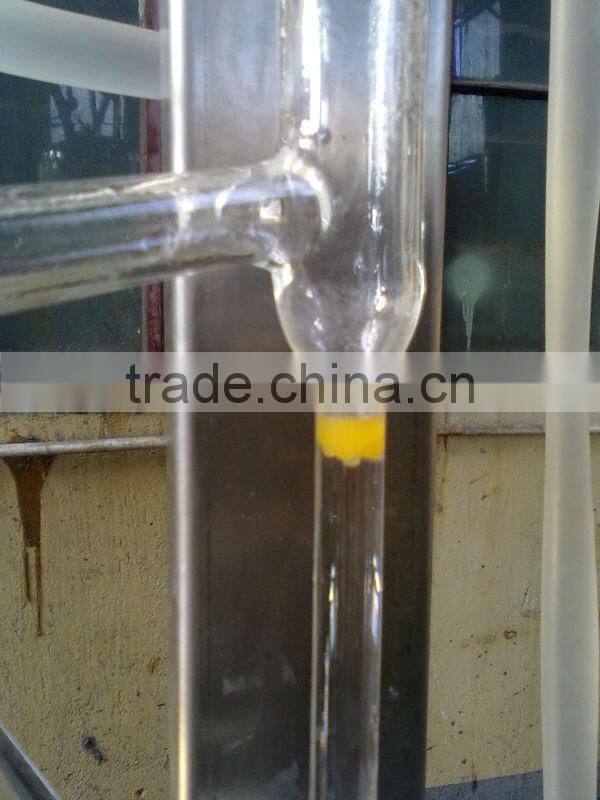

Oil-water separator of Essential Oil Extractor

Raw meterials of Essentail Oil Extractor

The material of Essential Oil Extractor can be all kinds of plants

Final product of Essential Oil Extractor

If you have any question about Essential Oil Extractor, please feel free to contact us!

Thank you for interested in our Essential Oil Extractor!
