50L High Quality Lavender oil extract machine on sale (EC)

Specifications

1. Brief instruction of Essential Oil Extract Machine

Essentail Oil Extract Machine is popular in production of Chinese medicines, health products, Biological drugs, cosmetics and food, it use technology of biological and chemical separation, can extract Plant components efficiently by steam distillation, have good effect in collecting essential oil from plants.

2. Special Design of Essential Oil Extract Machine

a. Steam extraction part is popular with the structure of basket-in-water Essential Oil Extract Machine.

b. Our Essential Oil Extract Equipment operation part has adopted PLC or touch screen control system, this accords to customer’s demand.

3. Main Technical Datas of Essential Oil Extract Machine

a. Power: 9kw, 380v/50Hz, Three Phase

b. Volume of Distillation Pot: 50L

c. Heating Area of Extraction Tank: 0.5M2

d. Condensing Area of Condenser: 0.85M2

e. Cooling Area of Cooler: 0.80m2

 f. Vacuum Pressure for Distillation: 0.3mpa

g. Moisture Extraction Temperature: 50~100c

h.  Power Of Electric Heater: 4 kw (Includes Oil Heating System)

 i. Cooling From Tap Water

4. Pictures of Essential Oil Extract Machine

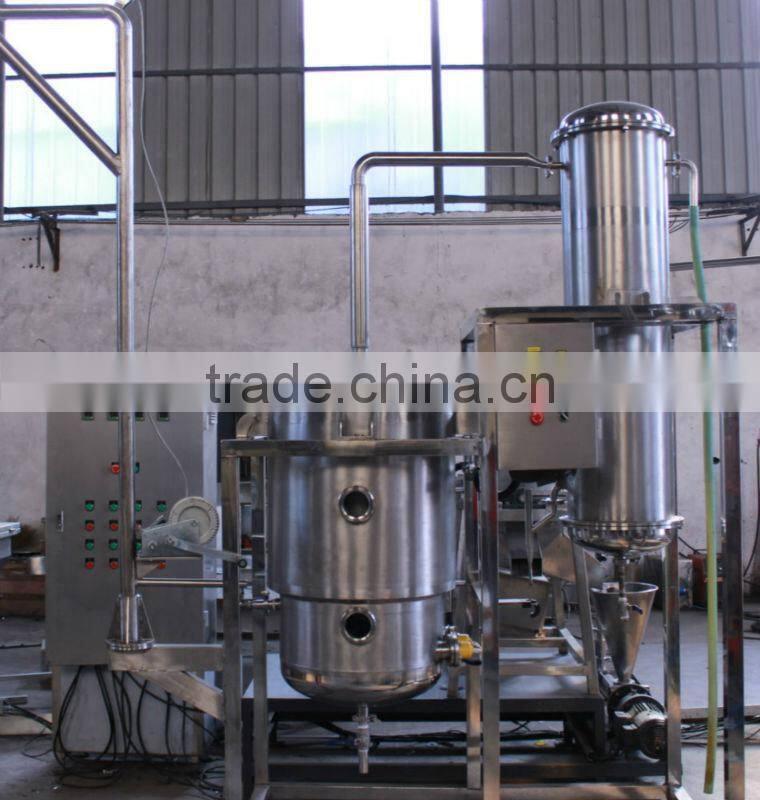

200L Essential Oil Extract Machine

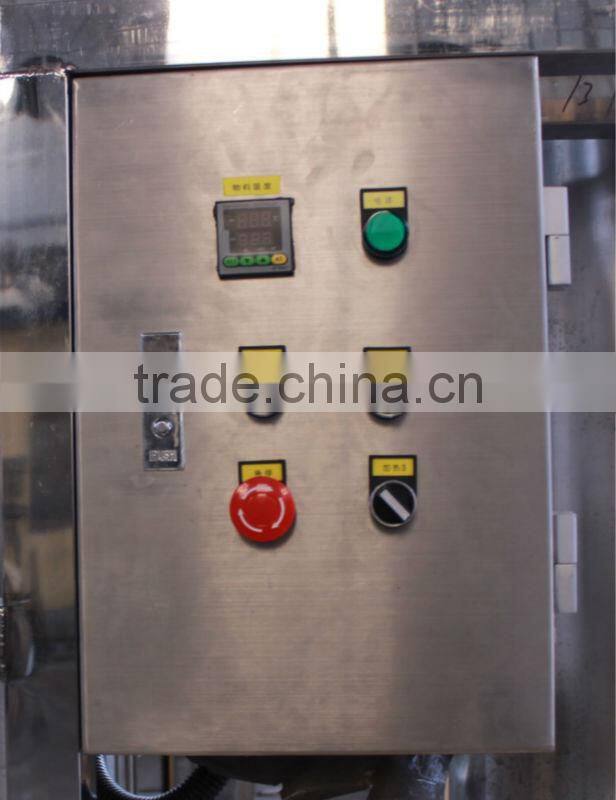

 Temperature Control Cabinet of Essential Oil Extract Machine

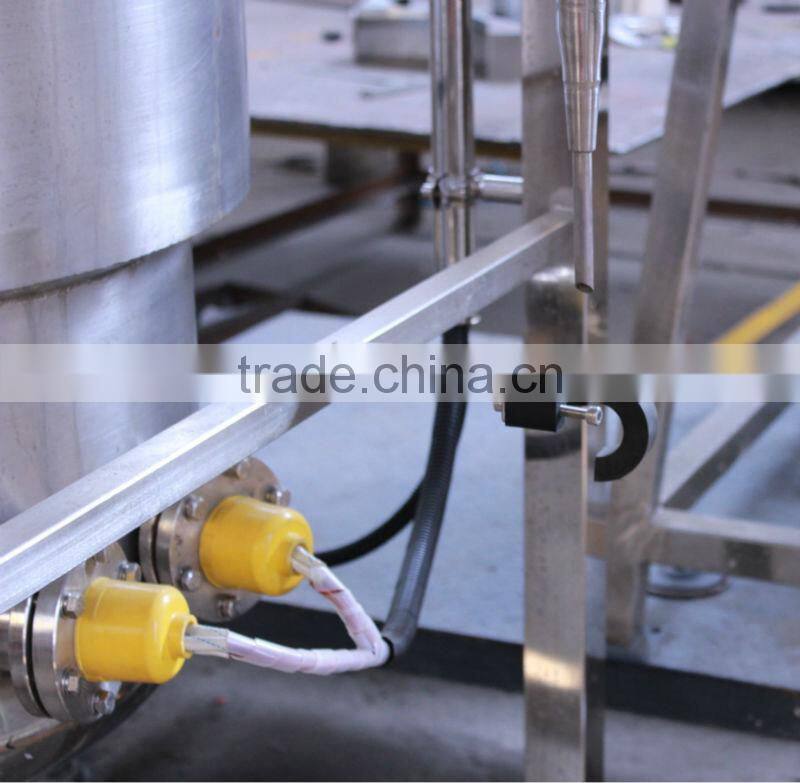

Detail of Essential Oil Extract Machine

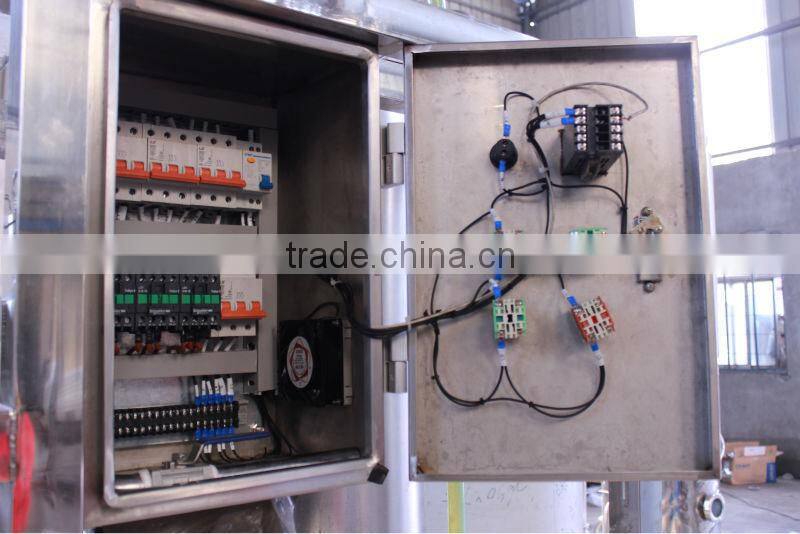

More detail of Essential Oil Extract Machine

Raw Material of Essential Oil Extract Machine

All kinds of plants can be the raw material of Essential Oil Extract Machine

Final Product of Essential Oil Extract Machine

5. Features of Essential Oil Extract Machine

a. By steam-distillation to reach the extraction of essential oils.

b. Easy operation. One people can operate Essential Oil Extract Machine easily .

c. High efficiency. Using indirect heating of heat-transfer oil, it can quickly reach 100°C high temperature under the conditions of cleanness, safety and atmospheric pressure. If required, with vacuum pump, the extraction speed of essential oils will be more faster.

d. Compact structure. It covers only about 1.5 square meter.

e. Tank wall treated: inside mirror-polished, outside honed.

Any question about Essential Oil Extract Machine, please contact with us freely!

Thank you for interested in our Essential Oil Extract Machine!
