30L High Quality Plants Essential Oil Extraction Equipment on sale (EC)

Specifications

Shanghai Better Industry Co., Ltd is one of the leading Chinese companies who have specilized in the design and manufacture of Essential Oil Extraction Equipments. Our goal is High Capacity, Low power Consumption, Low cost in running.

We wiil offer you very affordable price and will fulfill your all specific need!

1. Brief instruction of Essential Oil Extraction Equipment

Essentail Oil Extraction Equipment is popular in production of Chinese medicines, health products, Biological drugs, cosmetics and food, it use technology of biological and chemical separation, can extract Plant components efficiently by steam distillation, have good effect in collecting essential oil from plants.

2. Special Design of Essential Oil Extraction Equipment

a. Steam extraction part is popular with the structure of basket-in-water Essential Oil Extraction Equipment.

b. Our Essential Oil Extraction Equipment operation part has adopted PLC or touch screen control system, this accords to customer’s demand.

3. Main Technical Datas of Essential Oil Extraction Equipment

a. Power: 5.5kw, 380v/50Hz, Three Phase

b. Volume of Distillation Pot: 30L

c. Heating Area of Extraction Tank: 0.33M2

d. Condensing Area of Condenser: 0.72M2

e. Cooling Area of Cooler: 0.70m2

 f. Vacuum Pressure for Distillation: 0.3mpa

g. Moisture Extraction Temperature: 50~100c

h.  Power Of Electric Heater: 5.5kw (Includes Oil Heating System)

 i. Cooling From Tap Water

 4. Features of Essential Oil Extraction Equipment

 a. By steam-distillation to reach the extraction of essential oils.

b. Easy operation. One people can operate Essential Oil Extraction Equipment easily .

c. High efficiency. Using indirect heating of heat-transfer oil, it can quickly reach 100°C high temperature under the conditions of cleanness, safety and atmospheric pressure. If required, with vacuum pump, the extraction speed of essential oils will be more faster.

d. Compact structure. It covers only about 1.5 square meter.

e. Tank wall treated: inside mirror-polished, outside honed.

5. Pictures of Essential Oil Extraction Equipment

200L Essential Oil Extraction Equipment

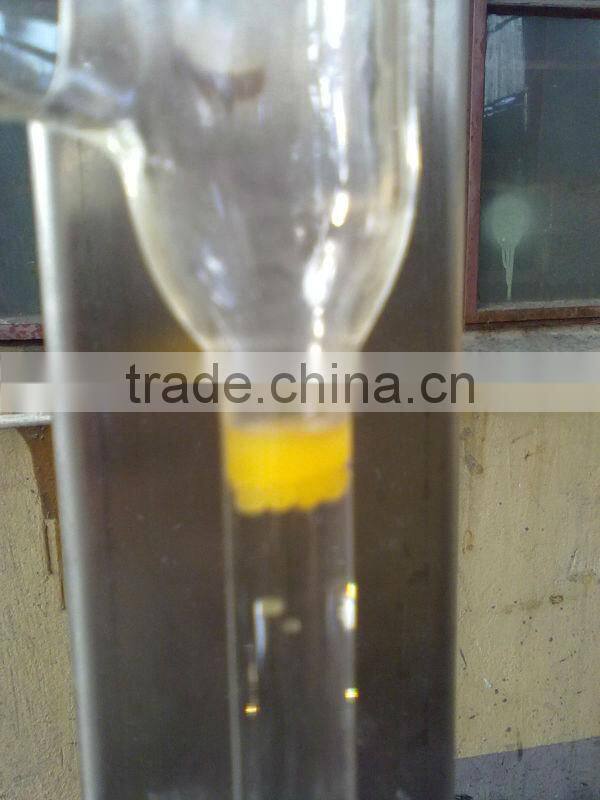

Oil-water Seperator of Essential Oil Extraction Equipment

Detail of Essential Oil Extraction Equipment

More detail of Essential Oil Extraction Equipment

Raw Material of Essential Oil Extraction Equipment

All kinds of plants can be the raw material of Essential Oil Extraction Equipment

 Final Product of Essential Oil Extraction Equipment

Any question about Essential Oil Extraction Equipment, please contact with us freely!

Thank you for interested in our Essential Oil Extraction Equipment!
