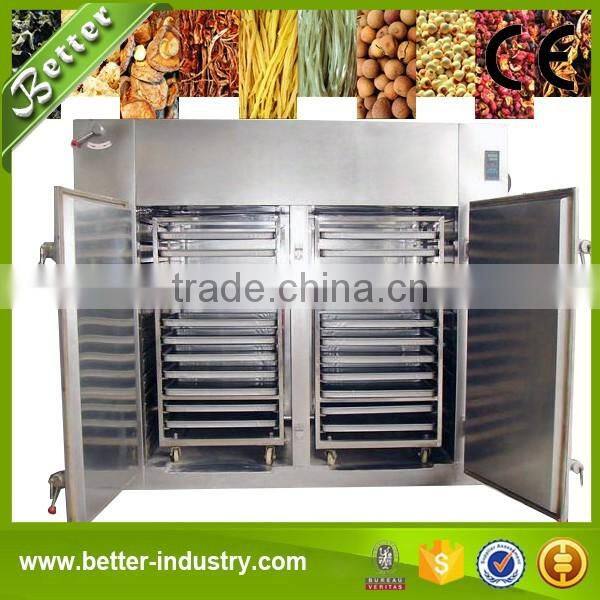

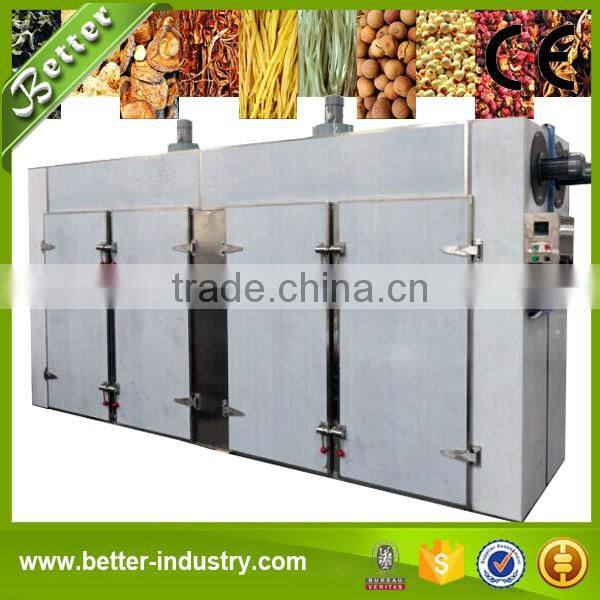

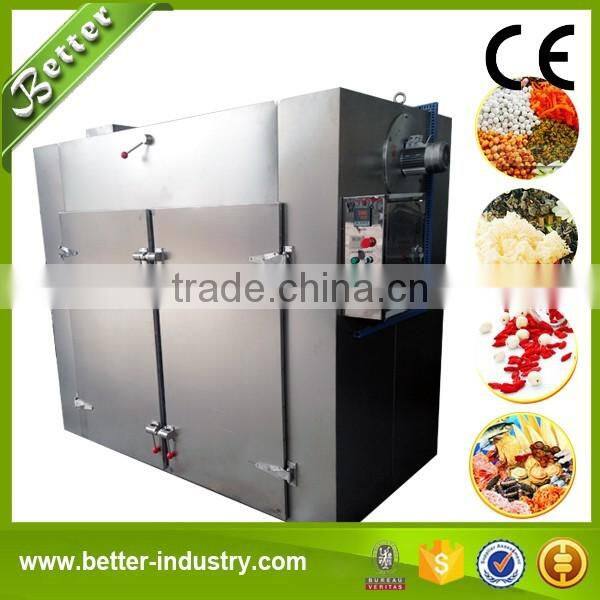

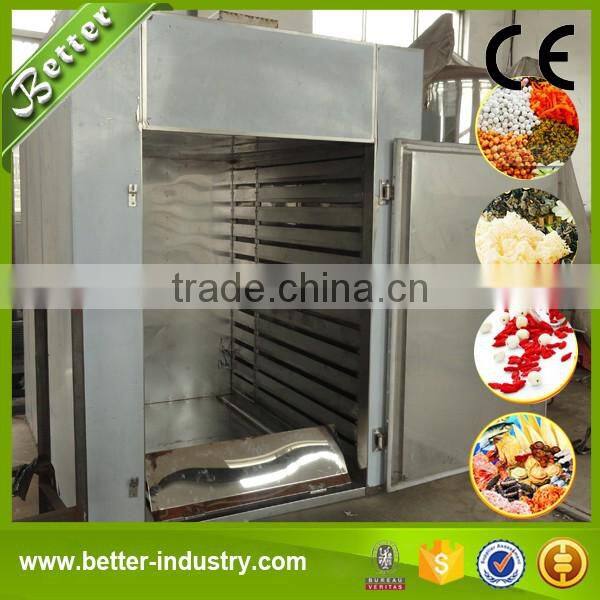

Hot Air Circulating Food Electrical Round Oven

FOB Price

US$ 3,770 - 3,770 / Set

1 Set(Min. Order)

Port Shanghai & All China Port
Payment TermsT/T D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Drying Oven
Place of Origin	Shanghai, China	Brand Name	Better
Model Number	HOD-O Hot Air Circulating Food Electrical Round Oven	Voltage	220v/380v
Power(W)	9KW	Dimension(LWH)	138012002000
Weight	900kg	Certification	CE Certificate
Warranty	12 Months	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Product Application

This Drying Oven is suitable for the material anda product heating, solidification, drying and dehydration of drugs, chemicals, food, agricultural and sideline products, marine products, e.g. raw medicines, crude drugs, traditional Chinese medicines prepared in ready-to-use forms, extracturms, powders, granular drugs, packing bottles, pigments, dyestuffs, vegetables, melons and fruits, sausages, plastic resins, electronic components and coatings

SPECIFICATIONS
Model	Drying Capacity (KG/LOT)	Electric Power(KW)	Fan Power(KW)	Steam Consumed(KG/H)	Drying Trolly	Baking Trays	Dimensions *(LWH )mm*
HOD-O	60	9	0.45	10	1	24	138012002000
HOD-I	120	15	0.45	18	2	48	226012002000
HOD-II	240	30	0.45*2	36	4	96	226022002000
HOD-III	360	45	0.45*3	60	6	144	226032002000
HOD-IV	480	60	0.45*4	80	8	192	428022002270

Main Features

1) The hot sources can be steam, electricity, far infrared, or system+electricity. Customers can select one of the heat ways in accordance with practical conditions.

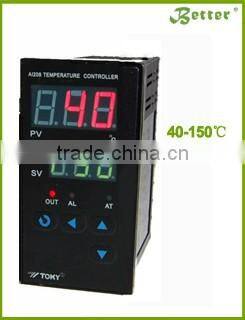

2) Temperature of operation: 50-140°C for steam heating, Maximum temperature will be 150°C.

3) 50-500°C for electricity or far infrared

4) There are automatic and computer control systems for customers selection

5) The normal pressure of system will be 0.2-0.8Mpa(2-8kg/cm2)

6) The equipped power of electric heater will be 15kw calculated with Model 1 and the preational power to used will be 5-8w/h

7) If have special requirement, please indicate in order

8) The price of non-standard oven shall be discussed additionally

9) If the operation temperature is more than 140°C or less than 60°C, please indicate in order.

10) The size of drying troll and tray is standardized. They can be exchanged each other.

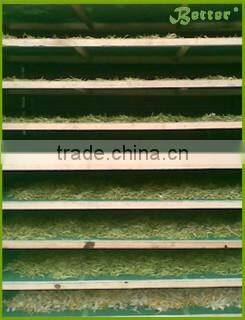

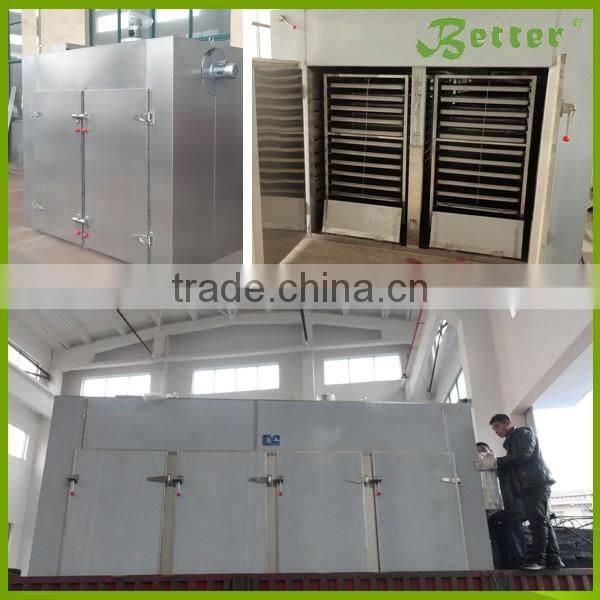

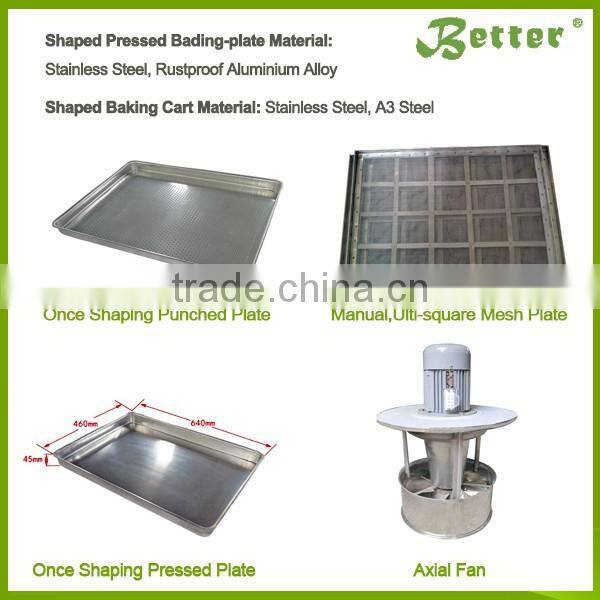

Detailed Images

Technical Date	HOD-O
Evaporation area(m³)	7.1
Efficient Volume(m³)	1.3
Drying Capacity(kg/lot)	60
Steam Consumption(kg/h)	10
Radiator area(m³)	10
Electric Power(kw)	9
Fan Volume(m³/h)	3450
Fan Power(kw)	0.45

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

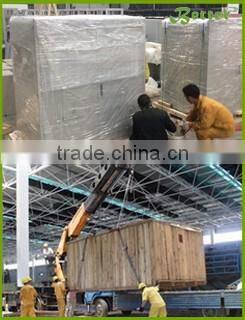

Packaging
Size	1400 (L) * 1250 (W) * 2050 (D)
Weight	900 kg
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

FAQ

Q1. How long it will take to dry one batch?

A: It depends on the moisture cotent of drying material,size of material and drying degree. It depends on your real situation.

Q2. How about drying temperature?

A: Usually it is 40 ~ 150 °C, we can set this temperature according to your requirements.

Q3. How to package this big machine?

A: Packed in all fumigation plywood,Fixed in wooden at bottom and covered with plastic sheeting
