Mining Machinery Gold Mining Jigger Machine
- 100 Unit / Units per Month
- Qingdao Port
- T/T
You May Like
-
China Supplier Gravity Jig Separator For Gold, Diamond Wash Plant
-
China Supplier Widely Used Diamond Wash Plant Also Diamond Jig Plant For Diamond Ore Processing
-
China Supplier Diamond Sorting Jig Machine / Diamond Processing Plant
-
Slurry BallMill,Silica Sand Ball Mill,Coal Ask Ball Mill
-
Hot Sale & Energy Saving Ball Mill Machine
-
Hammer Crusher For Sale
Product Details
| Condition | New | Type | Gravity Separator | |
| Production Capacity | 0.5-2T/h | Place of Origin | Shandong, China | |
| Brand Name | HENGCHUAN | Model Number | HCJ-50 | |
| Voltage | 220V/380V | Power(W) | 1.5-7.5kw | |
| Dimension(L*W*H) | 2650*2000*3000mm | Weight | 0.6-5.2t | |
| Certification | ISO9001:2008 | Warranty | One Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Standard containers, bare main machine, motors and small parts are packed in wooden box
Product Description

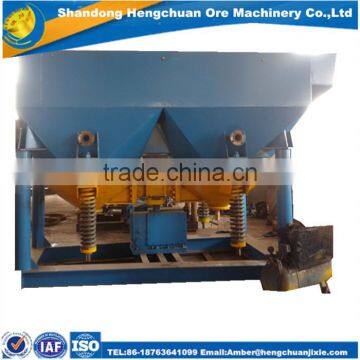

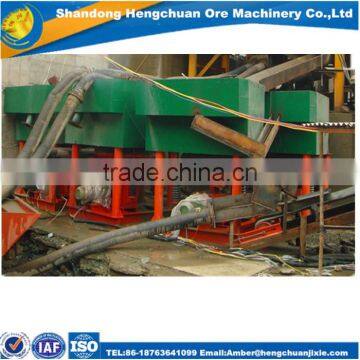

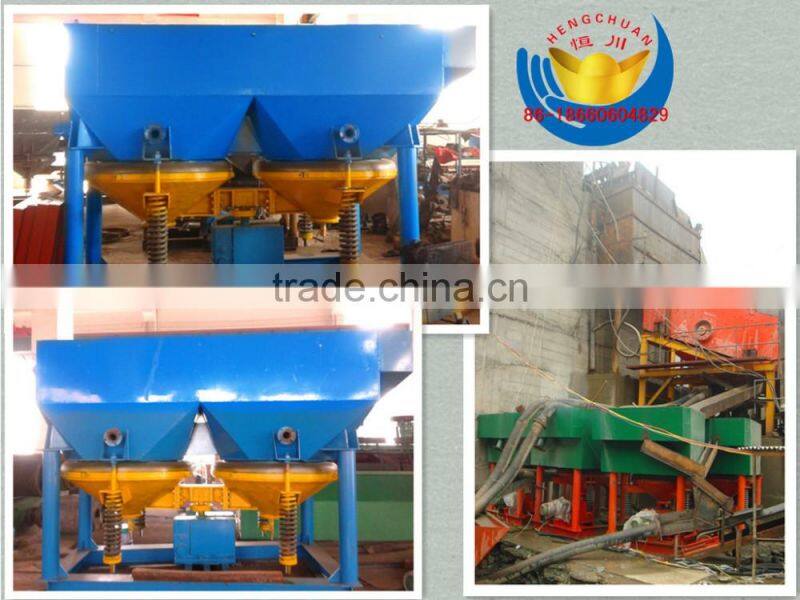

Mining Machinery Gold Mining Jigger Machine
Traditional jigger is mostly the circumference eccentric drive jigger, which is not conducive to the loose of jigger bed and the proportion of stratification of mineral particles, which affects the sorting and recovery equipment. Saw-tooth wave series jigger is energy-saving gravity separation equipment developed and improved according to the law of layer theory of jigger bed stratification, and on the basis of traditional jigger. Its pulse curve is as saw-tooth waveform to make rose water faster than the dropped water; enhanced the loose of bed, eased the inhaled role, so that heavy particles in the mineral can fully settlement, greatly improving the sorting capacity and recovery rate of equipment. Its industrial test compared with the sine wave jigger.
2.Features of Mining Machinery Gold Mining Jigger Machine :
(1)High capacity(2)High concentration ratio and high recovery
(3)Fabricated with highest quality material
(4)Easy to install, operate and maintain
(5)The pulsation curve is saw-tooth wave shape facilitate heavy mineral to settling
(6)Saving water 30-40% than ordinary jig
(7)The pulsation speed very easy adjusted by regulator
Suitable for roughing and desliming

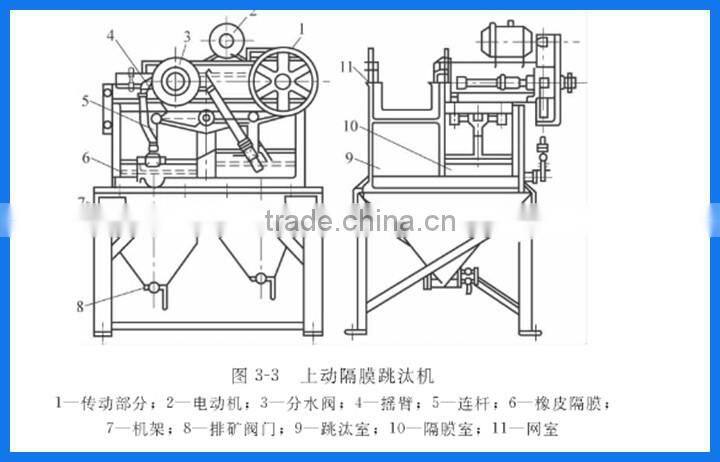

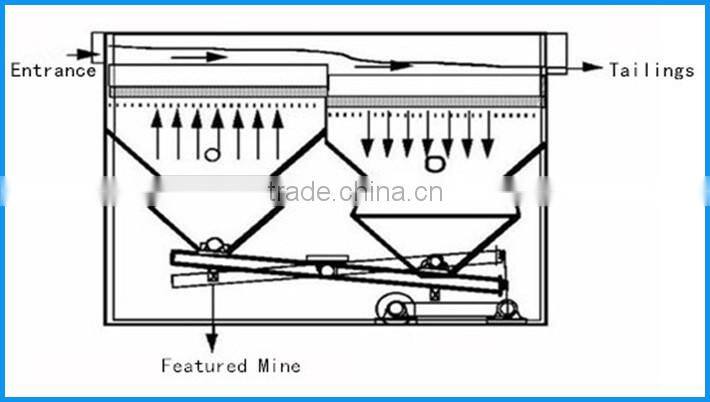

3.Structure of Mining Machinery Gold Mining Jigger Machine :

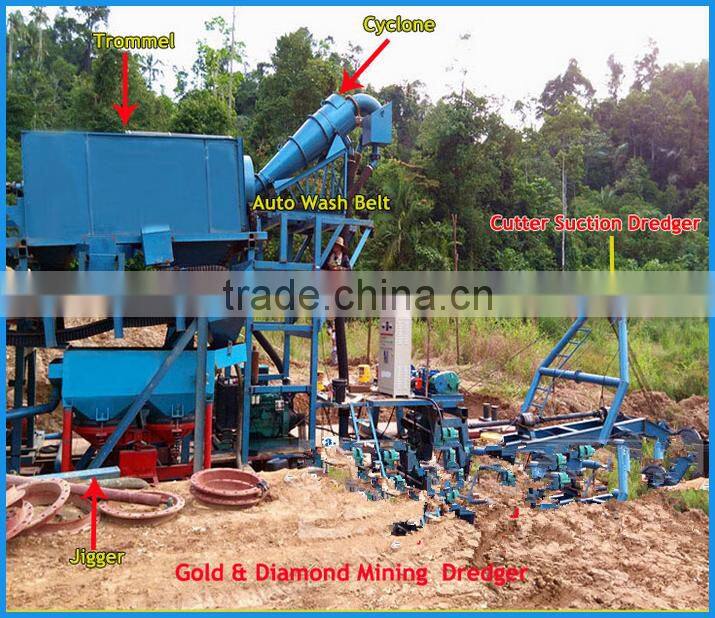

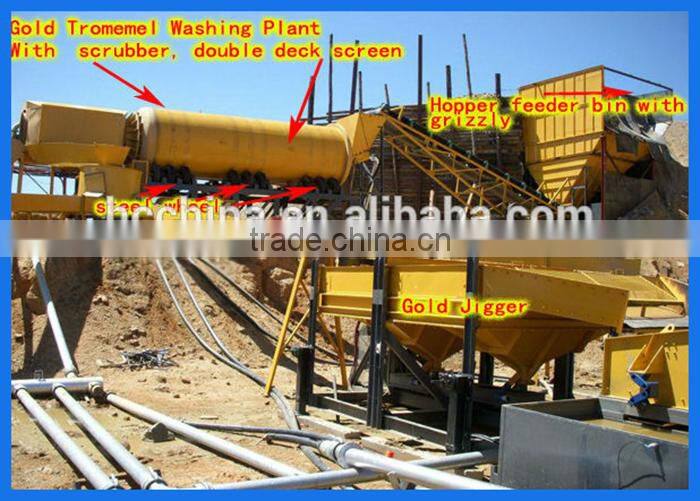

4.Applicant of Mining Machinery Gold Mining Jigger Machine :

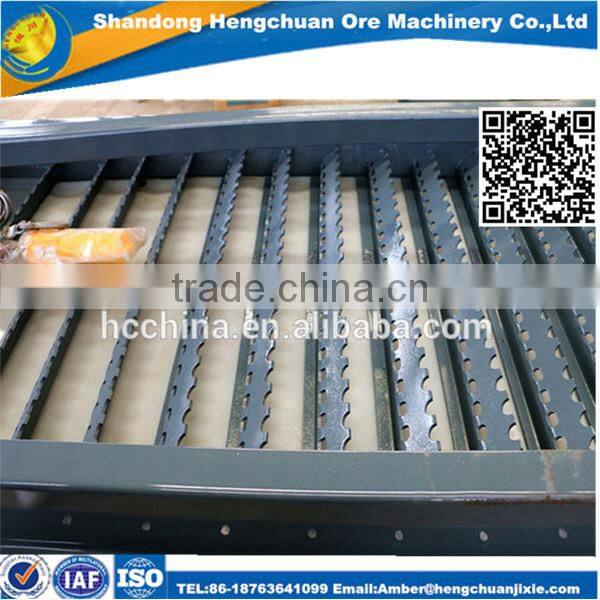

Jig machines need water to work, and it loosens materials in vertical alternative water-flows, and it forms different layers of materials of different densities and discharges both layers from up and down discharging ports separately. The basic composition of jigger is jigging chambers, also called jigging boxes, and there are screens in each chamber.
Water and raw ore will be fed from one end of the jigger screen, the ore granules will move in the vertical alternative water-flows. Layers will be formed because of density difference of materials. The minerals with small density will be in the up layer and will flow together with the up pulp flow while material with bigger density will be in the down layer and will discharged from the down discharging port as jigging concentrate
Packing for Mining Machinery Gold Mining Jigger Machine :
1.FCL&LCL export standard container 20/40 feet.
2.FCL:Sea-worthy package. Machines are fixed in container ;spare parts are packed in wooden boxes.
3.LCL:Machine are packed instee frame with plywood boxes.Customized package is available .
Shipping for Mining Machinery Gold Mining Jigger Machine :
1.By sea shipment
2.By air shipment
3.By courier express
1. Shandong Hengchuan company signs a long-time after-sale service agreement with customers.
2.. Shandong Hengchuan company provides rational and practical design according to customers' request.
3. Shandong Hengchuan company sends experienced engineers to assemble and test the machine within the period as agreed in the contract.
4. Within warranty period, Shandong Hengchuan company provides free repair if quality problems emerge.
5. Shandong Hengchuan company provides free training of operation and maintenance for customers.
6. Shandong Hengchuan company supply high quality accessories in low price.
7. Shandong Hengchuan company make an excellent filing of customers for long-term following-up service. Any question or problem about the products can be answered via online support.

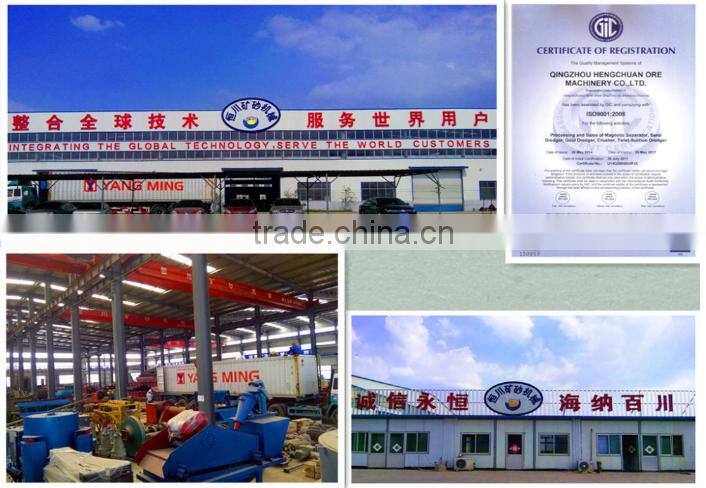

1. our company
2.our customers
3.Certificater:
In order to give you a responsible quotation, you can inform us the following information
1).Type of minerals to be mined?
2).Type of deposit (Primary/hard rock, or secondary/placer)?
3).Physical characteristics of the ore (sandy, with light clay or heavy clay)?
4).Intended feed capacity (Tons/hour)?
