OEM/ODM Customized China Supplier Latest Technology China Top Brand Mineral Processing Diamond Separation Jig Machine
- qingdao
- T/T
You May Like
-
Diamond Mining Equipment Saw-Tooth Wave Jigger
-
OEM/ODM Customized China Supplier Latest Technology High Quality Alluvial Diamond Laboratory Jigger
-
OEM/ODM Customized China Supplier Latest Technology Alluvial Gold Ore Separator Jigger
-
Jig /jigger/ Jigging Machine / Wash Box for Tin, Iron, Tungsten, Gold, and Silver Dressing Fields
-
China Supplier Latest Technology High Abrasion Resistance and Convenient Maintenance Gold Mining Ball Mill for Sale
-
China Supplier Latest Technology Small Scale Gold Mill Plant for Rock Gold Ore Processing
Product Details
| Condition | New | Type | Gravity Separator | |
| Production Capacity | 5-10Tons per hour | Place of Origin | Shandong, China | |
| Brand Name | HENGCHUAN | Model Number | HCJT2-2 | |
| Voltage | 380V/50HZ | Power(W) | 3kw | |
| Dimension(L*W*H) | 3225*1550*2050mm | Weight | 1640kg | |
| Certification | ISO | Warranty | 1 yeat | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Standard containers, bare main machine, motors and small parts are packed in wooden box.
Product Description
OEM/ODM Customized China Supplier Latest Technology China Top Brand Mineral Processing Diamond Separation Jig Machine gger
1. Application of OEM/ODM Customized China Supplier Latest Technology China Top Brand Mineral Processing Diamond Separation Jig Machine
Alluvial Gold Jigger/Jigger Machine/Jigging Machine is kind gravity jig separator for gold and other mineral materalis concentration. It can be widely used to select Tungsten, tin, gold, red iron, brown iron, manganese, titanium, antimony, lead, tantalum, niobium, placer gold, alluvial gold and other minerals.Due to its high processing capacity, large range of separation size and simplicity of operation and maintenance.
In practice, contrast of Saw-tooth Wave Jig and Sine Wave Jig shows up raises of recovery of Saw-tooth Wave Jig: Sn:3.01%, W:5.5%, Pb:1.63%, Zn:2.04%.
2. Working Principle of OEM/ODM Customized China Supplier Latest Technology China Top Brand Mineral Processing Diamond Separation Jig Machine
Alluvial Gold Jigger/Jigger Machine/Jigging Machine is one way of gravity concentration. It belongs to deep trough concentration operation (gravity equipment), using water as processing media, it depends on the difference of specific gravity between the minerals select and gangue to separate mine,the stroke and time of stroke is adjustable depend on different specific gravity of minerals. It is special for tin ore, manganese ore, coal, placer gold, alluvial gold concentration.
3.Advantages and Characteristics of OEM/ODM Customized China Supplier Latest Technology China Top Brand Mineral Processing Diamond Separation Jig Machine
1). High capacity
2).High concentration ratio and high recovery
3). Easy to install, operate and maintain
4). The pulsation curve is saw-tooth wave shape facilitate heavy mineral to settling
5).Saving water 30-40% than ordinary jig
6). The pulsation speed very easy adjusted by regulator
7). Can achieve a good result in processing such as placer gold, tungsten,iron, tin, hematite, copper, tantalum-niobium, titanium, manganese, barite, zirconium, chrome and gemstone etc.
4.Main Technical Parameters of OEM/ODM Customized China Supplier Latest Technology China Top Brand Mineral Processing Diamond Separation Jig Machine
Model | Hutch | Feeding Size (mm) | Makeup water (m3/t) | Makeup water pressure (Mpa) | Capacity (t/h) | Power (kw) | Dimensions (mm) | Weight (Kg) | |
Shape | Area (m2) | ||||||||
JT0.57-1 | Trapezoid | 0.57 | <6 | 1-2 | ≥0.05 | 1.5-3 | 1.5 | 1550×780×1530 | 610 |
JT1-1 | Trapezoid | 1.04 | <10 | 2-3 | 2.5-5 | 2.2 | 2270×1110×1890 | 900 | |
JT2-2 | Rectangle | 2.28 | <10 | 2-4 | 5-10 | 3 | 3225×1550×2050 | 1640 | |
JT3-1 | Trapezoid | 3 | <10 | 3-6 | 7.5-15 | 5.5 | 2745×2000×3030 | 3085 | |
JT4-2 | Rectangle | 4 | <25 | 4-8 | 8-20 | 7.5 | 4240×1990×2750 | 3098 | |
JT4-2S | Rectangle | 4 | <25 | 4-8 | 8-20 | 4×2 | 4240×1990×2750 | 3500 | |
JT5-2 | Trapezoid | 4.86 | <10 | 3-6 | 12-25 | 7.5 | 3600×2000×2600 | 45 | |

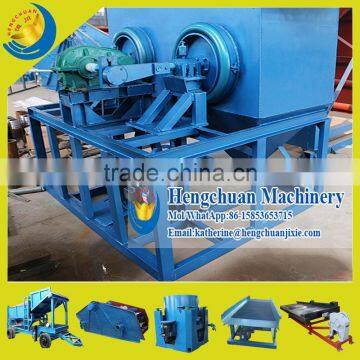

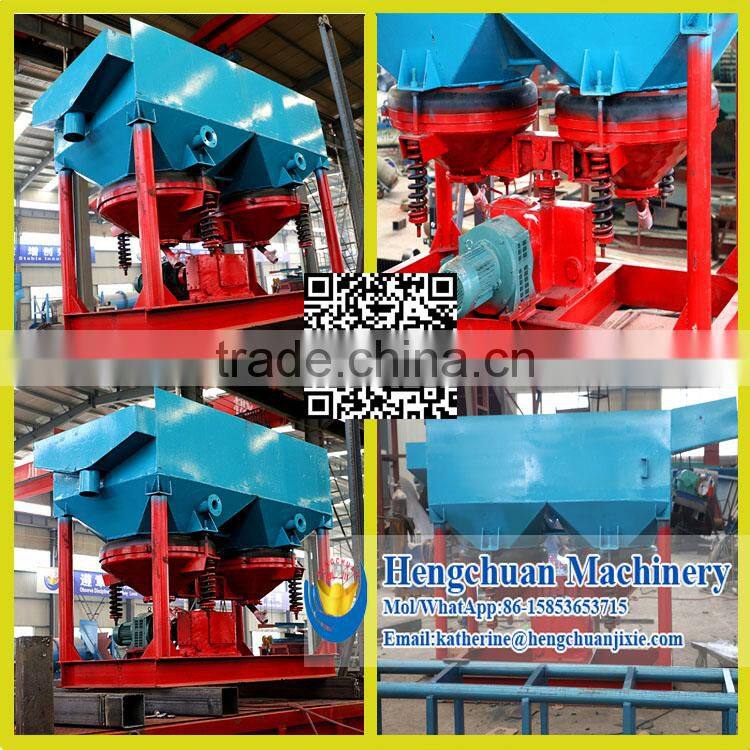

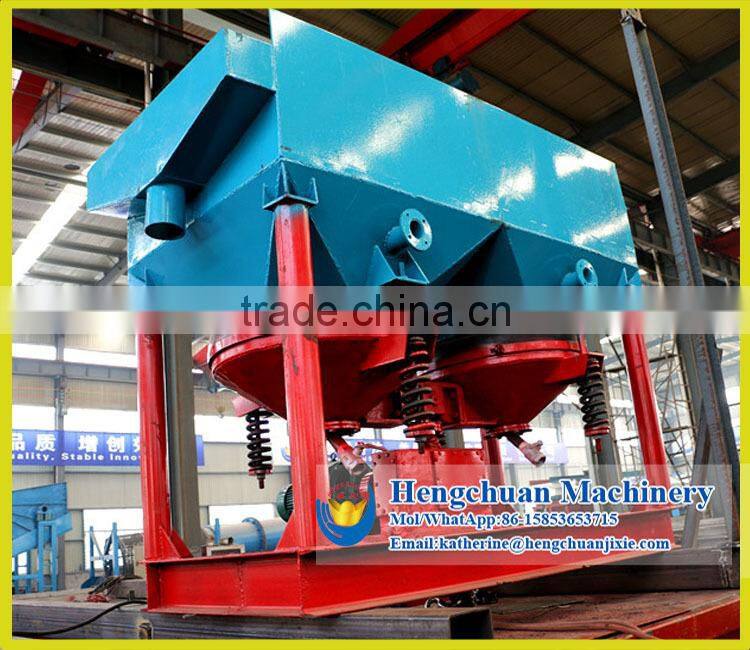

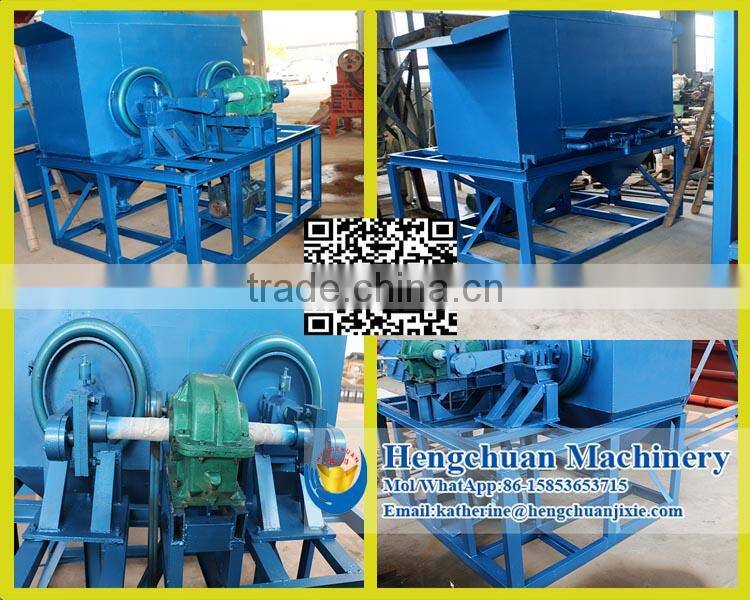

5. OEM/ODM Customized China Supplier Latest Technology China Top Brand Mineral Processing Diamond Separation Jig Machine Products Show

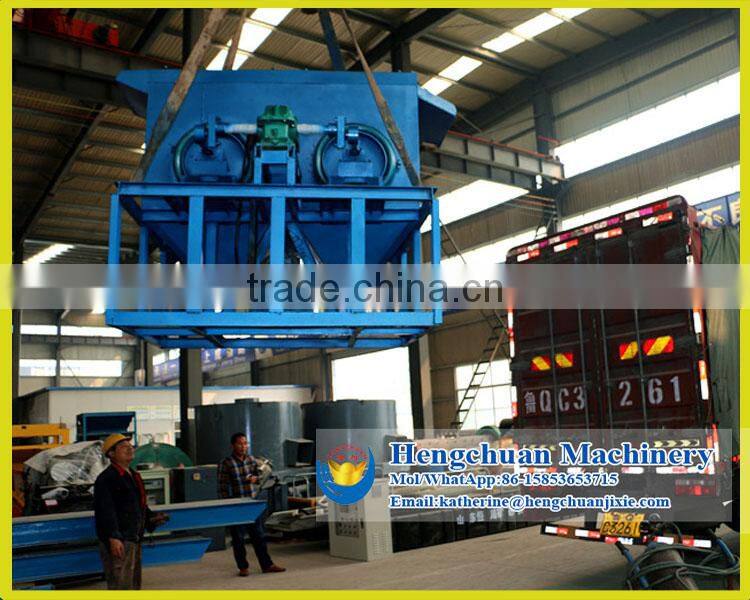

5.Shipping of OEM/ODM Customized China Supplier Latest Technology China Top Brand Mineral Processing Diamond Separation Jig Machine

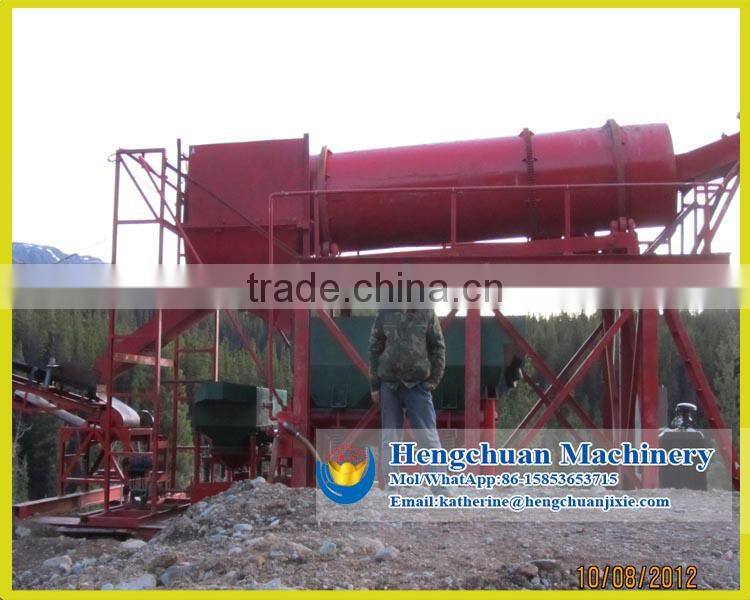

6.Working Site of OEM/ODM Customized China Supplier Latest Technology China Top Brand Mineral Processing Diamond Separation Jig Machine
