Home > Products > New Products > Canmax SC100/100 1ton Double Cage Elevator

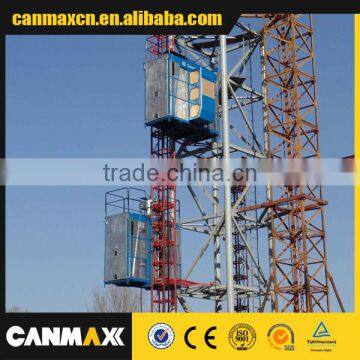

Canmax SC100/100 1ton Double Cage Elevator
- 20 Unit / Units per Month
- Shanghai
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Shanghai, China | |
| Brand Name | CANMAX | Model Number | SC100/100 | |
| Rated Loading Capacity(kg) | 2*1000KG | Hoisting Speed | 33M/MIN | |
| Max Lifting Height | 200M | Dimension(L*W*H) | 3.0*1.3*2.5m | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1ton Double Cage Elevator1.double Cage;
2.Rated Load:2*1000kg;
3.Cage Size: 3.0*1.3*2.5m;
4.Transportation:1*40'HQ
Canmax Specification of SC200;
Main technical data | Unit | Value |
Rated load | kg | 2*1000 |
Rated erection load | kg | 2*500 |
Jib attachment rated load | kg | 300/600 |
(L×W) Cage size | m | 3.0×1.3 |
Maximum lifting height | m | 250 |
Lifting speed | m/min | 33 |
Rated output | kw | 3×11 |
Voltage rating | V | 380/440 |
Rated frequency | Hz | 50/60 |
Rated current | A | 2*3×23.5 |
Power supply fuses | A | 2*2×96 |
Protective class | / | IP55 |
Load duration factor | / | FC-25% |
Safety device | m/s | 1.2 |
Enclosure weight | kg | 1480 |
Cage weight | kg | 2000 |
Counterweight | kg | / |
Mast section weight | kg | 150 |
Mast section length | mm | 1508 |
