Home > Products > New Products > Hot selling fatory price Concrete Pump
Hot selling fatory price Concrete Pump
USD $45,000 - $60,000
/ Set
1 Set(Min.Order)
- 100 Set / Sets per Month
- Shanghai China
- T/T
You May Like
Product Details
| Condition | New | Power Type | Diesel | |
| Brand Name | XCMG | Model Number | HBT60 | |
| Power(W) | 161 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

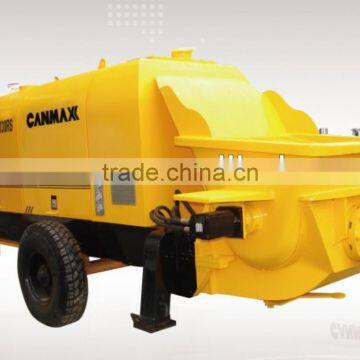

Trailer-mounted Concrete Pump, stationary concrete pump
| No. | Technical parameter | Trailer-mounted concrete pump | ||
| Working requirement | Model:HBT60 | |||
| 1 | Machine performance | Outline dimensions (mm) | 6960×2100×2770 | |
| 2 | Total vehicle weight (kg) | 7530 | ||
| 3 | Concrete delivering capacity (m3/h) | 83/49 | ||
| 4 | Max. delivering pressure (Mpa) | 16 | ||
| 5 | Traveling speed (km/h) | On 3rd class highroad: 8km/h | ||
| On 2nd class highroad: 16km/h | ||||
| 6 | Delivering distance(vertical/horizontal)(m) | 200/800 | ||
| 7 | Hopper capacity /Filling height (m3/mm) | 0.65/1350 | ||
| 8 | Concrete slump (mm) | 120-230 | ||
| 9 | Concrete cylinder bore/stroke (mm) | 200/1800 | ||
| Basic configuration | ||||
| 1 | Power system | Diesel engine | Model | BF6M1013EC |
| 2 | Rated power (kw) | 161 | ||
| 3 | Rated rev (r/min) | 2200 | ||
| 4 | Manufacturer | Deutz | ||
| 5 | Power | Rated voltage (V) | No | |
| 6 | Frequency (Hz) | No | ||
| 7 | Hydraulic system | Type | Open type | |
| 8 | Hydraulic system pressure (Mpa) | 33 | ||
| 9 | Main | Model | A11VLO190LRDU2 | |
| 10 | pump | Rated working flow (L/min) | 400 | |
| 11 | Manufacturer | Rexroth | ||
| 12 | Pumping cylinder bore /stroke (mm) | 140/1800 | ||
| 13 | Hydraulic oil tank capacity (L) | 600 | ||
| 14 | Cleaning system | Type | Water cleaning | |
| 15 | Water pump type | BZ-320 | ||
| 16 | Water pump output pressure (Mpa) | 7 | ||
| 17 | Water pump output flow (L/min) | 20 | ||
| 18 | Manufacturer | Suzhou JieBao | ||
| 19 | Agitating system | Low speed large torque, automatic reverse | ||
| 20 | Lubricating system | Energy saved centralized lubricating | ||
| 21 | Cooling system | Air cooling | ||
