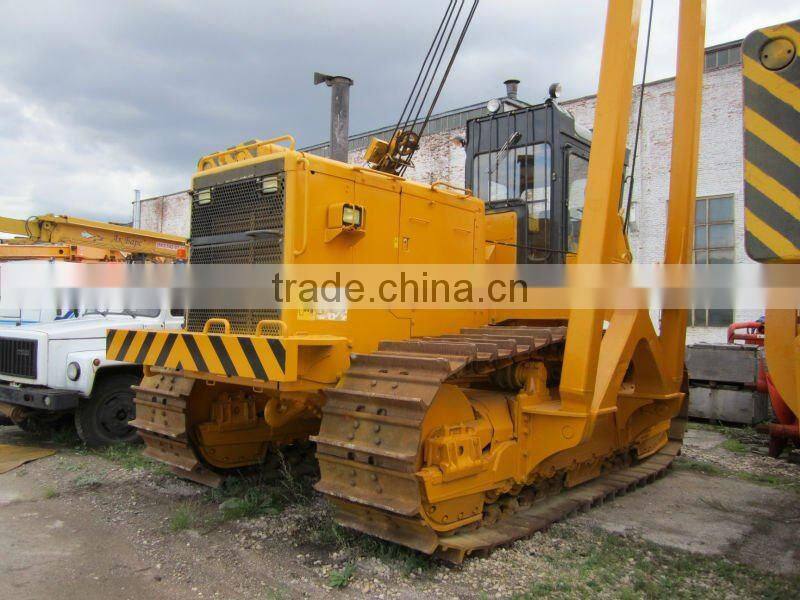

Pipelayer 70t SP70Y
- any port in China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | Shantui | |
| Model Number | SP70Y | Condition | New | |
| Moving Type | Other, Crawler | Machine Weight | 47.5t | |
| Dimension(Long * Breadth * High) | 5560*3700*2395 | After-sales Service Provided | Overseas third-party support available |
Product Description
Specifications
Pipelayer 70t SP70Y1.Good quality, low price.
2.World famous brand,professional service
3.Max. lifting capacity:70t
Pipelayer 70t SP70Y
The SP70Y pipe layer is equipped with advanced international technology to provide load feedback and prevent overloading while working on pipe laying projects. With a hydraulic pilot control system, the operations of working devices such as the hook and lifting arm are integrated into a single lever, which is capable of precise, sensitive performance. The machine has been designed to specially measure operating functions in order to prevent overturning or rolling over.
Type | SP70Y |
Engine Model | Cummins NTA855-C360 |
Rated power & revolution (kw/rpm) | 235/2000 |
Max.lifting weight(t) | 70 |
Operating weight(kg) | 47500 |
L x W xH(mm) | 5560x3700x2395 |
Min.turning radius(mm) | 3950 |
Track gauge (mm) | 2380 |
Ground length(mm) | 3620 |
Track shoes width(mm) | (860) |
Ground Pressure(Mpa) | 0.086 |
Mas.lifting height(mm) | 6550 8150(9.0mBoom ) |
Boom swing amplitude (m) | 1.2-7.2m 1.2-8.8m(9.0mBoom ) |
Hook speed (m/min) | 0-6.0 |
Boom length(m) | 7.3(9.0) |
