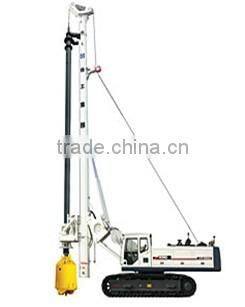

XR320D Rotary Drilling Rig

FOB Price

US$ 720,000 - 820,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	XCMG
Model Number	XR320D		After-sales Service Provided	Engineers available to service machinery overseas

XR320D Rotary Drilling Rig
Max. drilling diameter:2500mm
Max. drilling depth: 77meter
Engine : CUMMINS

Name : XR320D Rotary Drilling Rig

Specification :

Main technical parameters of XR320D
NO.	Name		Unit	Parameters
1	Max. drilling diameter		mm	φ2500
2	Max. drilling depth		m	77(5-section of fricative) (standard) 62(4-section of mechanical interlock)(optional) 92 (6-section of fricative) 102(6-section of fricative type)(specific designed)
3	Safe operation range(from rotarying centre)		mm	4240~4980
4	Dimension in working condition(L×W×H)		mm	11000×4800×24586
5	Dimension in transportation condition(L×W×H)		mm	Open transport
6	Overall drilling weight(drilling tools not included)		t	90
7	Engine	Engine model		CUMMINS QSM11-C400
7	Engine	Engine rated power/rotary speed	kW	298 /(2100r/min)
8	Hydrulic system	Max. pressure	Mpa	33
8	Hydrulic system	Max. pressure of vice pump	Mpa	30
9	Rotary drive	Max.output torque	kN.m	360
9	Rotary drive	Rotary speed	rpm	6~20
10	Pull-Down cylinder	Max. cylinder pressure	kN	240
		Max. cylinder lifting force	kN	220
		Max. cylinder stroke	mm	6000
11	Main winch	Max. pulling force	kN	320
11	Main winch	Max. wire speed	m/min	72
12	Auxiliary winch	Max. pulling force	kN	100
12	Auxiliary winch	Max. wire speed	m/min	65
13	Mast	Left/ right Side	°	4/4
13	Mast	Forwards	°	5/15
14	Slewing bearing	Slewing bearing angle	km/h	360
15	Runing	Max. complete device running speed	%	1.5
15	Runing	Max. complete device grade ability		35
16	Track	Track width	mm	800
		Outside width(min-max)	mm	3500~4800
		Distance between two wheels longitudinally	mm	5484
		Average grouning specific pressure	KPa	105.5
