Home > Products > high carbon wire drawing machine > PC wire drawing machine

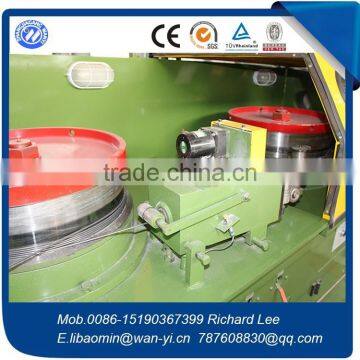

PC wire drawing machine
US$ 10,000 - 50,000
/ Set
1 Set(Min. Order)
- Shanghai or your ports
- T/T L/C D/P D/A
You May Like
Product Details
| Condition | New | Inlet Diameter | 6.5--8MM | |
| Outlet Diameter | 2.4--3.2 | Place of Origin | Jiangsu, China | |
| Brand Name | Wanyi | Model Number | LZ600 straight line | |
| Voltage | 380/220v | Power(W) | 90KW | |
| Dimension(L*W*H) | 9000X1600X1550MM | Weight | 8500KG | |
| Certification | CE or SGS or other | Warranty | ONE YEAR FREELY | |
| After-sales Service Provided | Overseas service center available |
Product Description
SpecificationsDry Drawing Machine for steel wire & rope industry
1.Dia. of Block: 200-1200mm
2.Block number: 2-12Nos
3.Inlet wire: 4~14mm
Dry Drawing Machine for steel wire & rope industry
1. Dia. of Block: 200-1200mm
2. Block number: 2-12Nos
3. Inlet wire: 4~14mm
1. Dia. of Block: 200-1200mm
2. Block number: 2-12Nos
3. Inlet wire: 4~14mm
Straight Line Wire Drawing Machine are suitable for the high & low carbon steel wire below size of 14mm, with Siemens PLC & inverter control system to assure high speed & stable operation.
Low Carbon steel wire product used in mesh net, steel fiber, nail & staple making, construction, agriculture & furniture field, etc. And other steel wire product used in prestressing wire, PC wire and so on spring, steel rope wire, steel cord & Bead wire for tyre, etc.
Specification:
Item | LZ200 | LZ300 | LZ400 | LZ500 | LZ560 | LZ600 | LZ700 | LZ750 | LZ900 | LZ1200 |
Dia. of Block | 200mm | 300mm | 400mm | 500mm | 560mm | 600mm | 700mm | 750mm | 900mm | 1200mm |
Capstan Nos. | 2~12 | 2~12 | 2~12 | 2~12 | 2~12 | 2~9 | 2~9 | 2~9 | 2~9 | 2~9 |
Inlet wire size | 2.5mm | 2.8mm | 4.2mm | 5.5mm | 6.5mm | 8mm | 10mm | 10mm | 14mm | 16mm |
Finished wire | 0.3mm | 0.6mm | 0.7mm | 1.2mm | 1.3mm | 1.6mm | 2.2mm | 2.2mm | 3mm | 3mm |
Max. Speed | 20m/s | 20m/s | 20m/s | 18m/s | 15m/s | 12m/s | 10m/s | 10m/s | 8m/s | 6m/s |
Power (Kw) | 5.5~7 | 7.5~11 | 7.5~22 | 22~45 | 22~55 | 45~75 | 45~90 | 55~90 | 90~132 | 90~160 |
