Steel Cover Spot Welding Machine, Bracket Spot Welding Machine

Basic Info.

Product Description

Product Description

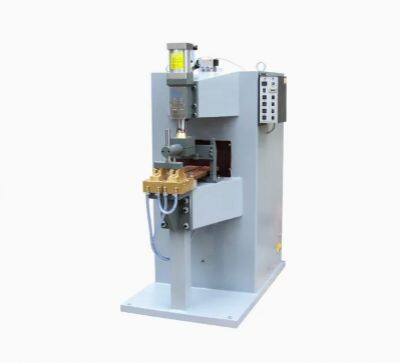

Motor Case Bracket Spot Welding Machine

under the operation of transformer, pneumatic AC pulse spot welder utilizes the general mains supply to lower the voltage and increase the electric current. Such kind of low voltage but large current will be transmitted from the electrode to the linked point of two work pieces. On the linkage, due to the resistance of work piece, high temperature will occur so the metal will therefore generates high heat to make the work pieces in molten condition. Thus, the purpose of welding the two work pieces is achieved.



Silicon Controlled: Adopt the SEMIKRON, IXYS from West Germany or IR Silicon controlled from United States; High precision and durable; Be able to control the high stability of the magnitude of current.

Pneumatic Control System:Adopt large displacement of magnetic valve and gas assembly, sufficient air supply; Adopt the quick exhaust cylinder, quick response, good servo performance.

Welding Transformer: Adopt high purity silicon steel disc refined welding transformer; Good performance in permeability and electrical conductivity; Less consumption of electricity, the contribution of our welding machine is 15% higher than the other machines of the same quality from the same industry. Be able to weld the metal plates like 8mm+8mm low-carbon steel.



Controller:Constant Current and Constant Voltage Intelligent Microcomputer Spot Welding Machine Controller/ WD-KD5 which attains patent certificate in China



Main Features

1. Multiple same ways forced water cooling system to ensure stability and reliability of long-term operation.
2. Pressurized electrode speed can be adjusted, slow down the impact to welding work piece when pressuring, also reduces the noise when welding.
3. Upper and lower electrode adopts supplementary stroke pressurized mode which can improve the operation of welding process.
4. Welding Control System: WD-KD5 Intelligent Microcomputer Controller. The AC pulse spot welder that we produce can be matched with many types of welding controllers.
5. Silicon Controlled: Adopt the SEMIKRON, IXYS Silicon controlled from West Germany or IR Silicon controlled from United States;
6. Pneumatic Control System: Adopt large displacement of magnetic valve and gas assembly, sufficient air supply; adopt the quick exhaust cylinder, quick response, good servo performance.
7. Welding Transformer: Adopt high purity silicon steel disc refined welding transformer; Good permeability and electrical conductivity; Less consumption of electricity; Be able to weld the metal plates like 8mm+8mm low-carbon steel.

Specification

Model	Input Voltage	Related Capacity	Max Short Circuit Current	Duty Cycle Rate	Electrode Force	Electrode Stroke	Cooling Water
	V	KVA	KA	%	KG	mm	L/min
TS-S-5K	220	5	1	25	30	25	4
TS-S-10K	380 1PH	10	2.5	25	100	50	4
TS-S-16K	380 1PH	16	4.5	25	100	50	6
TS-SP-25K	380 1PH	25	7	25	350	80	6
TS-SP-35K	380 1PH	30	9	25	350	80	6
TS-SP-50K	380 1PH	50	13	25	800	100	6
TS-SP-75K	380 1PH	75	18	25	1000	100	8
TS-SP-100K	380 1PH	100	20	25	1000	10	8
TS-SP-150K	380 1PH	150	25	25	1000	8100	10
TS-SP-200K	380 1PH	200	30	25	1500	100	10
TS-SP-250K	380 1PH	150	38	25	1500	100	12
TS-SP-300K	380 1PH	300	45	25	2000	100	16

Product Description

Other Related Machines



PROFESSIONAL SPOT WELDING EQUIPMENT MANUFACTURER

100

Tens of years for our customers tailored solutions, the cumulative delivery of high-quality products are 100 sets.

56

It has 56 models supermarket trolley, storage cage, racks entireproduction equipment and various types of high-quality

LD

5

Companyinnovation,research and development on average fivesets of efficient and economical year, and every year.

1

From pre-sales consulting to desiqn and development, sampletesting,production,timely delivery,installation and commis.sioning,and after-sales seryice.

20%

Maintained an average annual growth rate of 23% of themarket,accounting forindustry leadership position.

18

High quality welding equipment 18 years of industry experience.

7

Company Profile 7 experienced professional team, every aspectof strict, active and efficient customer seryice in the market.

12,300

An area of 12 300 square meters, has a sound business andproduction management system.

2016

Undertake the mission, we are still on the road .

2015

And well-known domestic listed companies to develop a successful rib automatic intelligent Chi-made production systems officially to intelligent production systems across qualitative step.

2014

The company successfully passed the China Compulsory Certification electrical CCC certification.

2013

The country's first multi-purpose commercial equipment automatic CNC wire bending machine design andproduction success.

2012

With independent intellectual propertygantry stiffener point trigger a success-ful trial.

2011

Companies new plant put into use,theoutput value exceeded ten million RMB.

2010

The company's first fully automatic wiremesh welding machine gantry R& DsuCCess.

2009

We Electric Machinery Co., Ltd. was established

Professional team, beginning from the initial consultation to after-sales, customer demand is always our mobility.

Is not limited to the requirements of customers, we continue to optimize innovation to our products can enhance customer productivity.

Unity of purpose, to make our team and efficient operation exceeding the requirements of each customer.

Quality is the foundation for a company and high-quality product is the "laissez passer" inglobal market. We have strict requirement on every process of manufacturing for the pur.pose of producing better products. We strive hard to survive the fierce market competitionwith best products thus assuring its leadership and success in the industry.

Product Application Industry：

Storage and transportation

Home storage and organization

construction industry

Power and communication cable engineering

Isolation net fence

Supermarket shelves

Pet cage industry

railway construction

email: shiyan-110@163.com

whatsapp: 0086 135 0624 5149

we can manufacture according to your requirement.  so welcome your enquiry.
