Home > Products > Screen Plant > Linear Vibrating Screen for Mining Plant
Linear Vibrating Screen for Mining Plant
- Qingdao Shanghai
- T/T L/C D/P D/A
You May Like
Product Details
| Condition | New | Type | Other, Linear, linear vibrating screen | |
| Application | Other, Ore, mining coal, building material, light industry | Place of Origin | Henan, China | |
| Brand Name | Lanji | Model Number | ZK1230 | |
| Voltage | 380v | Power(W) | 4*2 kw | |
| Dimension(L*W*H) | 6.0*1.2*1.5 m | Weight | 2.6t | |
| Certification | ISO9001 | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

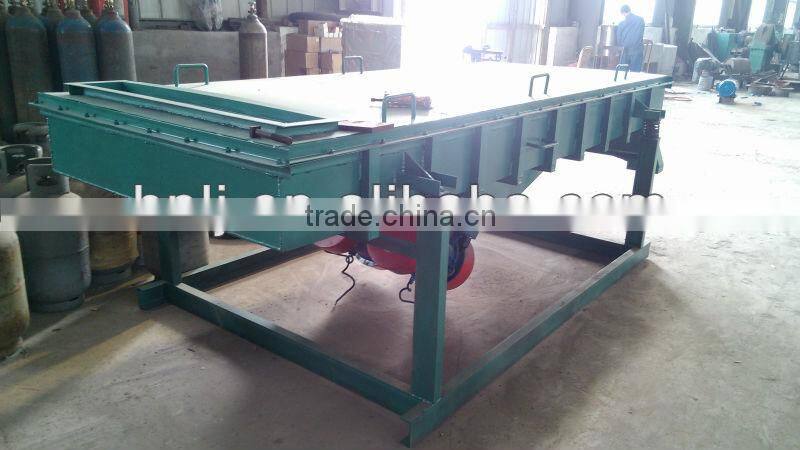

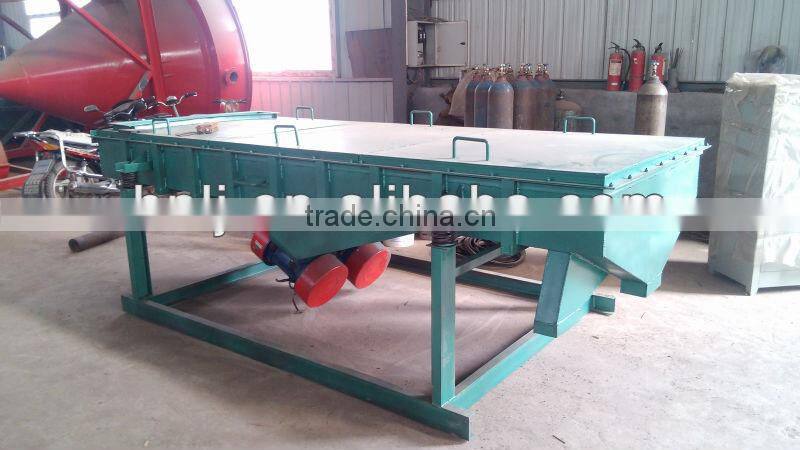

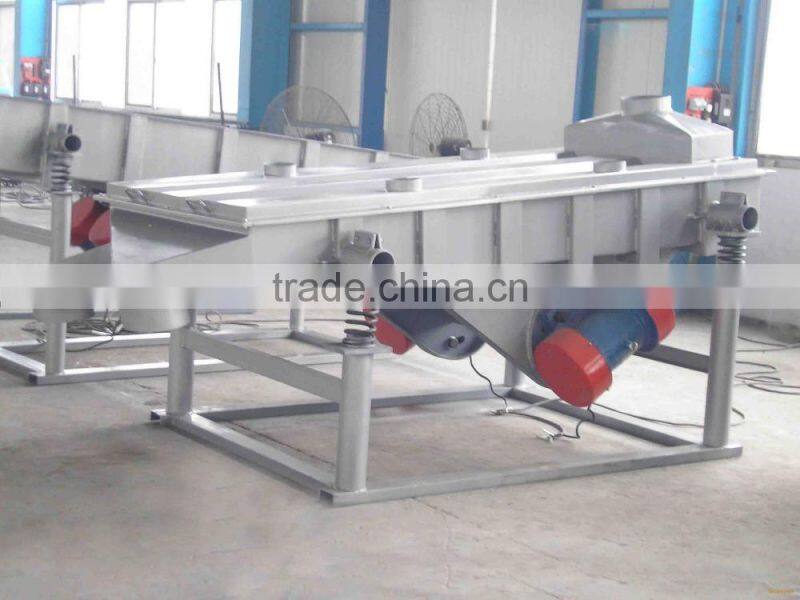

Linear vibrating screen for mining plant :
1. Linear vibrating screen Application:
Linear vibrating screen is used to separate materials. It is composed of main frame, screen, motor, eccentric bock, rubber spring, coupler and widely used in mining, coal, metallurgy, building materials, refractory, light industry, chemical industry. The advantaged of this series screen are as follows: stable operation, lower energy consumption, low noise, high efficiency and long service life.
2. Technical data:
Model | Deck size(sqm) | Mesh (mm) | Max feeding size(mm) | Capacity (t/h) | Motor power(t/h) |
ZK1022 | 2.2 | 0.25-50 | ≤250 | 4.5-90 | 3×2 |
ZK1230 | 3.6 | 7.2-144 | 4×2 | ||
ZK1237 | 4.5 | 9-180 | 5.5×2 | ||
ZK1445 | 6.3 | 12.6-252 | 7.5×2 | ||
ZK1645 | 7.32 | 95-280 | 11×2 | ||
ZK1845 | 8.1 | 16.2-324 | 11×2 | ||
ZK2045 | 9 | 16.2-324 | 15×2 | ||
ZK2060 | 12 | 24-480 | 15×2 | ||
ZK2460 | 14.4 | 28.8-576 | 22×2 | ||
ZK3060 | 18 | 17.5-525 | 22×2 | ||
ZK3645 | 16.2 | 37.8-756 | 22×2 | ||
ZK3660 | 21.6 | 43.2-846 | 30×2 | ||
2ZK1022 | 2.2 | 4.5-90 | 4×2 | ||
2ZK1230 | 3.6 | 7.2-144 | 5.5×2 | ||
2ZK1237 | 4.5 | 9-180 | 7.5×2 | ||
2ZK1445 | 6.3 | 12.6-252 | 15×2 | ||
2ZK1645 | 7.2 | 95-280 | 15×2 | ||
2ZK1845 | 8.1 | 16.2-324 | 15×2 | ||
2ZK2045 | 9 | 16.2-324 | 15×2 | ||
2ZK2060 | 12 | 24-480 | 22×2 | ||
2ZK2460 | 14.4 | 28.8-576 | 22×2 | ||
2ZK3060 | 18 | 17.5-525 | 37×2 | ||
2ZK3645 | 16.5 | 37.8-756 | 45×2 | ||
2ZK3660 | 21.6 | 43.2-846 | 45×2 |
