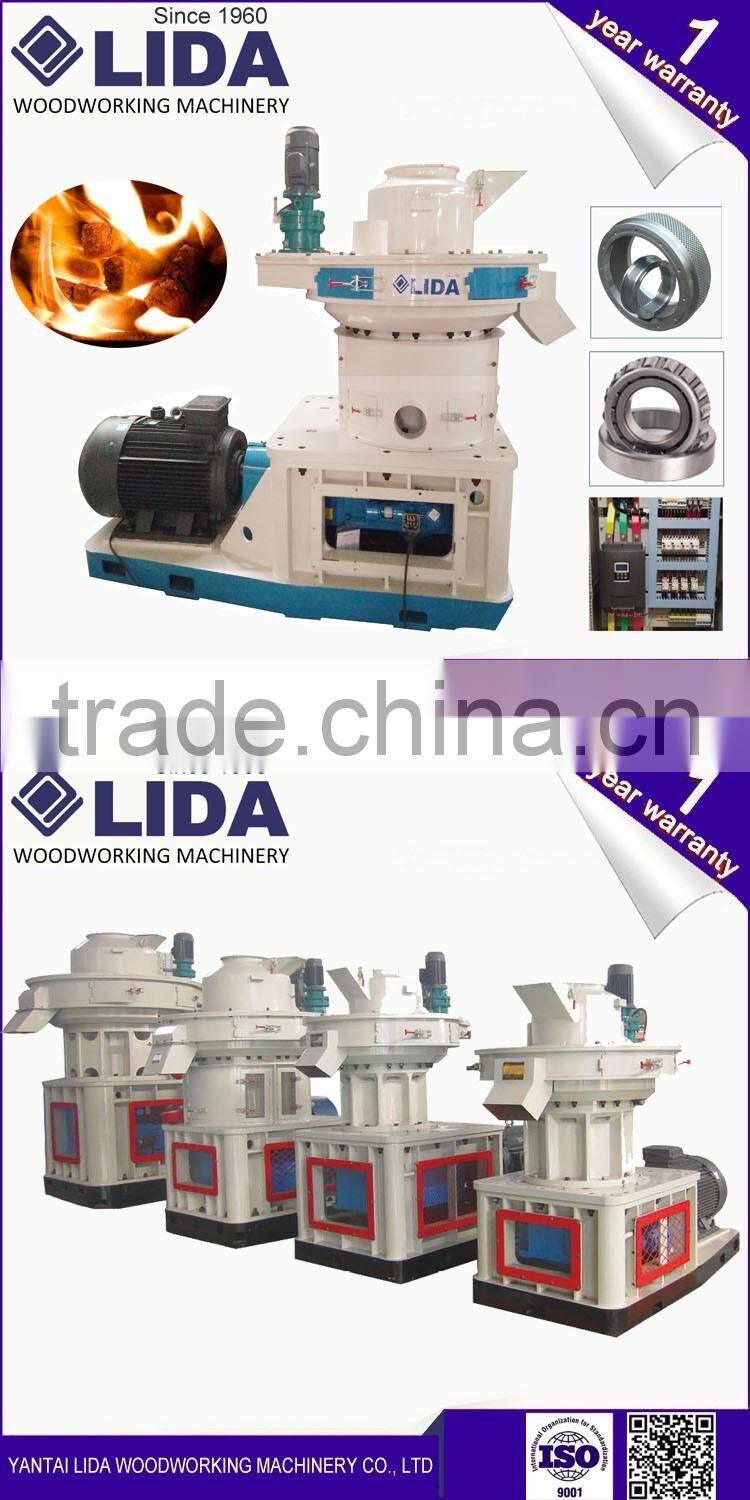

2Ton/hour LIDA Brand Wood Pellet Making Machine LD650 for Sale/how to Make Wood Fuels Pellet
US$ 12,000 - 40,000
/ Set
1 Set(Min. Order)
- Qingdao
- T/T
You May Like
-
3Ton/hour LIDA Brand Wood Pellet Making Machine LD850 for Sale/how to Make Wood Fuels Pellet
-
Beech Pellet Mill Factory Price With CE Certificate
-
Rice Straw Pellet Machine Long Working Life CE
-
Woood Pellet Mill 1 Ton per Hour LD560 With Good Quality
-
Wood Pellet Mill Good Quality With Competitive Price 3 Ton
-
High Quality Vertical Ring Die Wood Sawdust Pellet Mill LD650 With Low Price &CE
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | LIDA | Model Number | LD650 | |
| Voltage | 380V | Power(W) | 90kw | |
| Dimension(L*W*H) | 2600*1300*2300mm | Weight | 6100KG | |
| Certification | CE ISO9001 SGS | Warranty | 1 Year | |
| After-sales Service Provided | Overseas third-party support available |
Product Description
LIDA brand wood pellet making machinery/pellet production line 2ton/hour(how to make pellet ?)
Biomass pellet making machinery LD560 1-1.5ton/hour | ||||||
Model | Die Dia (MM) | Pellets Dia(MM) | Dimension (MM) | Weight (T) | Capacity (T/H) | Power(KW) |
LD450 | 450 | Φ4-12 | 2400*1000*2100 | 4.5 | 0.8-1 | 75+1.5+0.55 |
LD560 | 560 | Φ4-12 | 2600*1300*2300 | 6.1 | 1-1.5 | 90+1.5+0.55 |
LD650 | 650 | Φ4-12 | 2950*1300*2450 | 9.5 | 1.5-2 | 160+1.5+0.55 |
LD850 | 850 | Φ4-12 | 3350*1450*3180 | 14.5 | 2.5-3.5 | 220+3+0.55 |
LD1050 | 1050 | Φ4-12 | 4200*1850*3700 | 22.5 | 4-6 | 315+5.5+3 |
| Application of pellet mill : | Wood Pellet Making Machine/Biomass Pellet Mill is applied to the materials with adhesiveness and shaping,such as furniture sawdust ,rice husk, shell of sunflower seed, peanut shells and other various melon shell,branches, tree trunk, bark and other wood scraps; all kinds of crops straw; Rubber, cement, ash and other chemical raw materials. Applied in feed mills, wood processing plants, fuel factory,fertilizer factory, chemical plants, etc., is a small investment, quick effect, dense risk-free optimal compression molding equipment. | |||||
| Feature: | High efficiency centrifugal,high pressure,suitable for the materials with adhesiveness and shaping. | |||||
| Low wear rate, pressure roller die long service life. | ||||||
| Press roller adopting automatic lubrication system,continuous operating without stop | ||||||
| Die using vertical structure, direct way-in material, high efficiency, good heat dissipation. | ||||||
| Application of pellet: | Home heating stoves. | |||||
| Hot water boilers and industrial boilers, | ||||||
| Biomass power plants and etc. | ||||||
| Packaging Details: | Iron sheet box or in container(1-1.5t/h bio wheat straw wood waste hard wood pellet mill) | |||||
| Delivery time : | 20 working days (1-1.5t/h pellet production line ) | |||||
| ||||||
| How to make pellet ? |
|
| Pellet is made from different kind of biomass materials ,like wood ,rice straw ,coconut shell .palm shell ,cotton stalk etc .First section is crushing all the materials into sawdust ,and control the sawdust moisture between 10-15% with the dryer ,after drying section ,comes to pelleting sectiion ,and last section is packing section ,here I take pine wood as material for example ,follw me ,enjoy the way to design your own pellet production line ~~ |
| 1. Crushing section : |
| This section is the material preparation section ,make different materials to required standard sawdust .If material is pine wood ,using wood chipper machine to process the wood to standard wood chips ,length about 50mm ,thickness about 20mm and then crushing the wood chips into sawdust with hammer mill ,this process include Log splitter ,Wood chipper ,Hammer mill .If material is rice straw ,wheat straw ,palm shell ,peanut shell etc ,you can put the material directly to the hammer mill to make sawdust . |
| Related machines : |

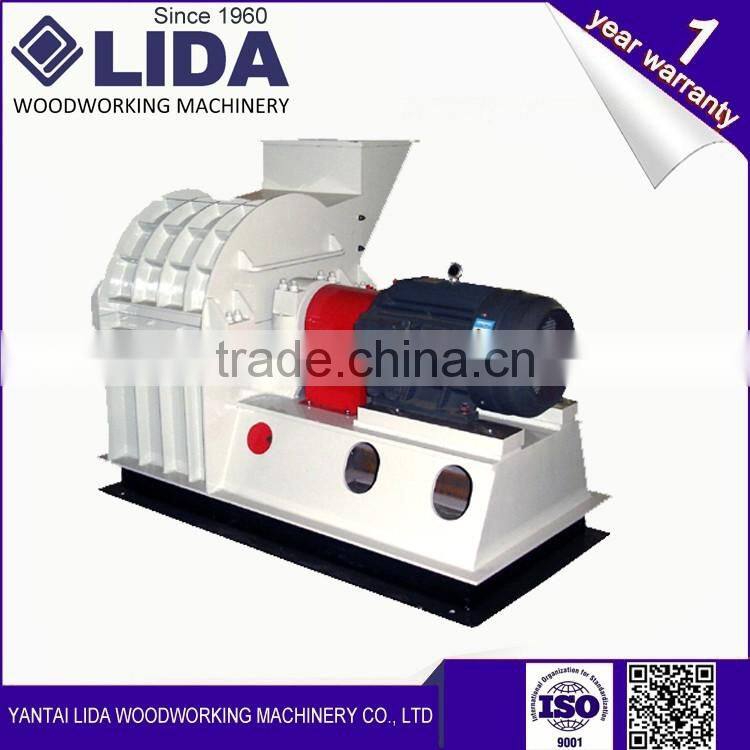

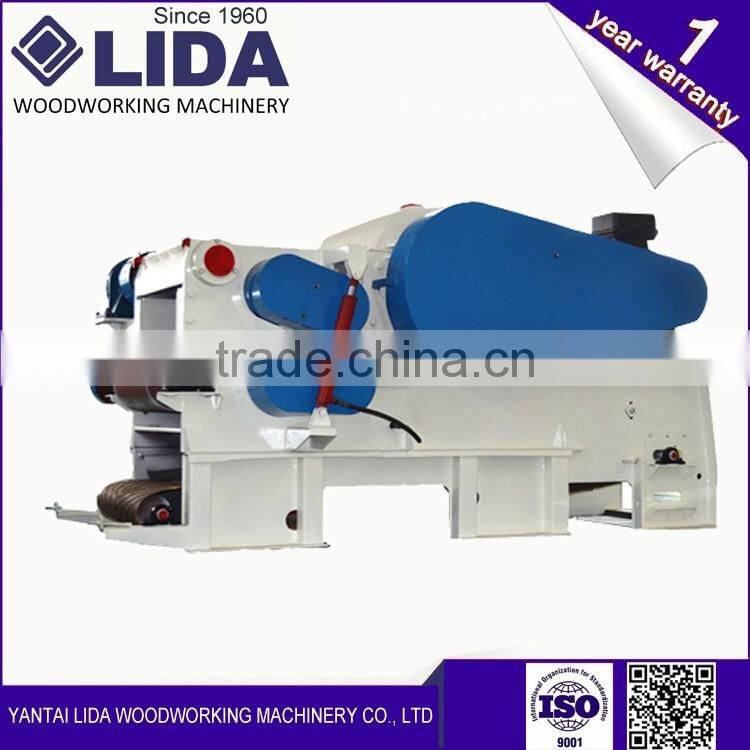

Wood chipper Hammer mill |
| 2. Drying section : |
| If sawdust moisture too high (more than 15%) ,you need a Dryer machine to control the sawdust moisture at 10-15% ,this is more easily to make the pellet shaped . |
| Related machines : |

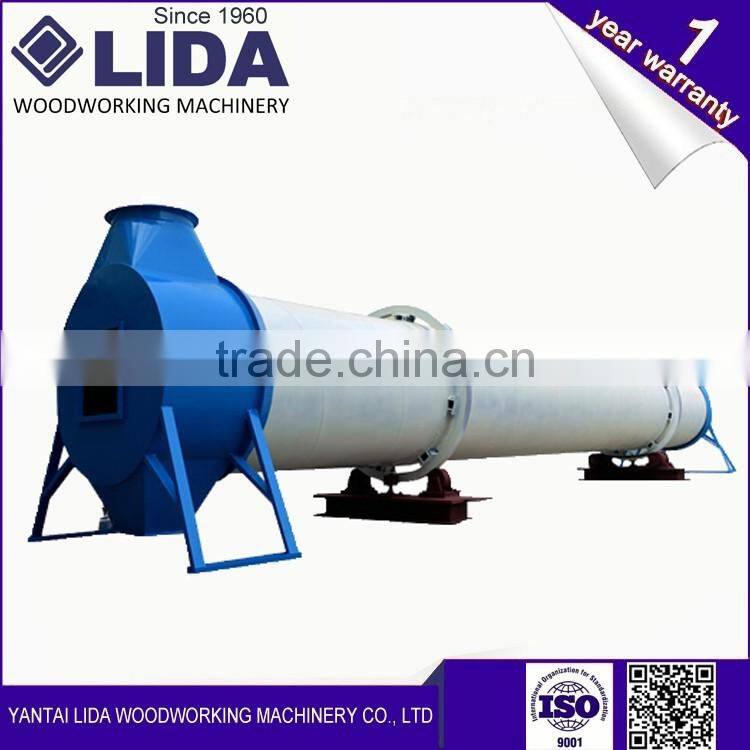

Dryer machine
|
| 3. Pelleting section : |
| After the material preparation section ,now is pellet section ,conveying the sawdust (moisture between 10-15%)into the Pellet mill ,to make the sawdust into pellet .Pellet mill is the main machine for this process and the total production line .The production capacity is controlled by the pellet mill .different model has different capacity ,different quantity machines control different line capacity . |
| 4.Cooling and packing section : |
| After the pelleting section ,the pellet is very hot (about30°-40°) ,you need a Cooler to make the temperature of pellet low(5°-8°). After the pellet temperature down ,pack the pellet into bags with Packing Machine ,usually 15kg/bag ,make it easier to storage and sell . |
| Related machines : |

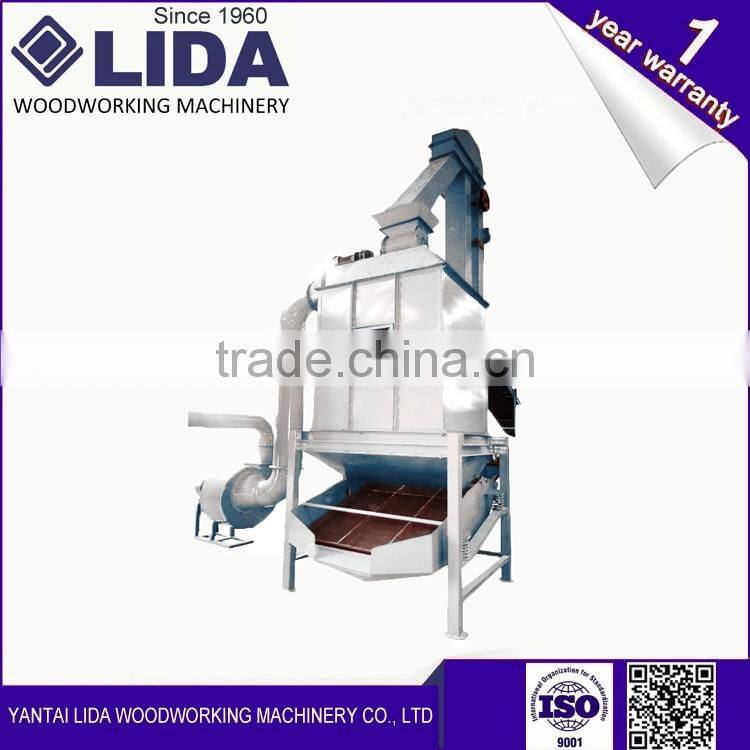

Cooler
|

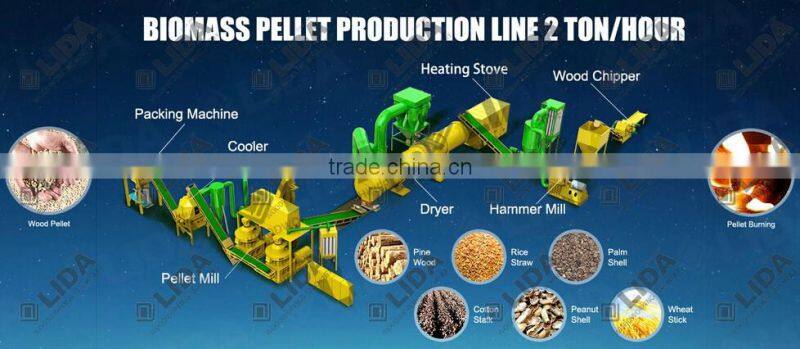

| Biomass pellet production line flow chart |
| |

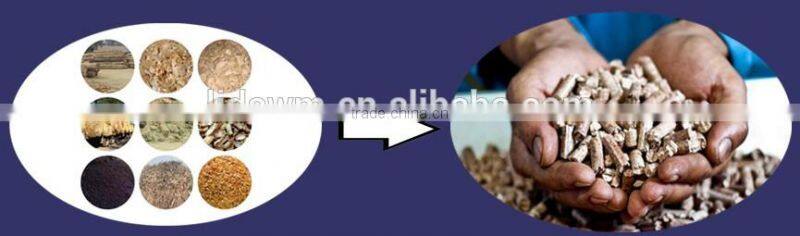

| Material change |
| |
| How to find reliable supplier for pellet production line ? |
| 1. Pellet mill machinery factory with rich experience and credit. |

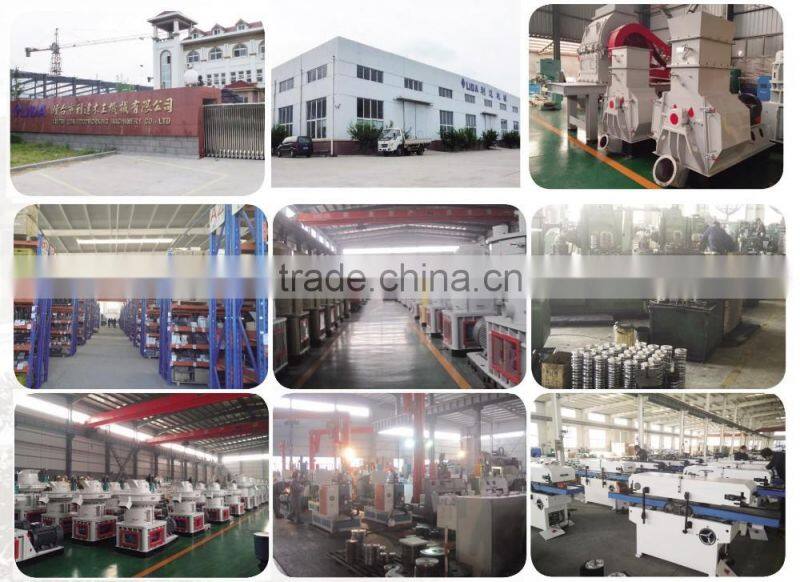

| Yantai Lida woodworking machinery Co Ltd is an experience factory for manufacturing woodworking machinery ,biomass pellet production machinery ,pellet mill ,dryer ,hammer mill ,wood chipper .Start from 1960 ,now our factory with 35000m³ size ,more than 60 engineers .Annual export value more than 20 million ,to more than 50 countries all over the world .Quality has approved with CE ,ISO9001&2000 ,with 15 national patents . |
| |
| Our factory is verified by Alibaba group and granted with USD 292,000 trade assurance credit ,that means ,Alibaba will offer you Maximum USD 292,000 return if there is any fraud during business . |
| 2. The pursuit for better quality ,never settle for details requirement . |
| We always beleve quality is NO.1 factor for business .We have strict engineers ,controls the quality process .Every details ,we pay much attention .Every spare parts ,we will select from China branded company ,ensure it has best performance in Permanence and durability. |
| |
| 3. Strong after-sales service team ,24 hours online ,solution within 12 hours .Engineers available for service abroad . |
| We have experienced sales team ,online 24 hours ,can answer all the questions in time .Enginers available to offer service abroad ,solution can be offered within 24 hours ,ensure prompt action and satisfying after-sales service . |
|

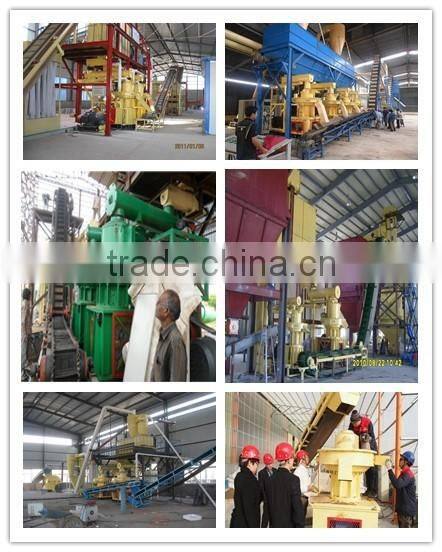

| Production line abroad |
| |
| FAQ |
| 1. How to control the pellet production line capacity ? |
| The production line capacity is controlled by the pellet mill model and quantity .For our example ,our pellet mill LD560 production capacity is 1.5ton/hour ,if you want 3 tons production line ,we can equip 2 sets LD560 . |
| 2.Do I need to add glue inside the sawdust while making pellet ? |
| No ,no need to add any chemical element inside the sawdust while making pellet ,only need to control the moisture of the sawdust between 10-15% . |
| 3. What's your guarantee for the machine and spare parts ? |
| One Year guarantee. We shall supply free exchange for spare parts. After this period, we shall charge at low cost to keep after service. You will be welcome to contact us with any problem might occurred. |
| 4.How to install the production line ? |
| * Together with the machine ,there will be detailed manual ,you can install the machine accordingly to the manual easily |
| * We also have detailed machine installation and working video on Youtube ,feel free to check our video at Youtube . |
| * Engineers available to come to your plant for instruction ,all the install can be finished 2 weeks .But cost will be at customer side . |
| Contact us ,enjoy the way to profit and success !!! |
