2015 Best Selling Corn Germ Oil Complete Production Line Equipment Corn Germ Oil Refining Equipment

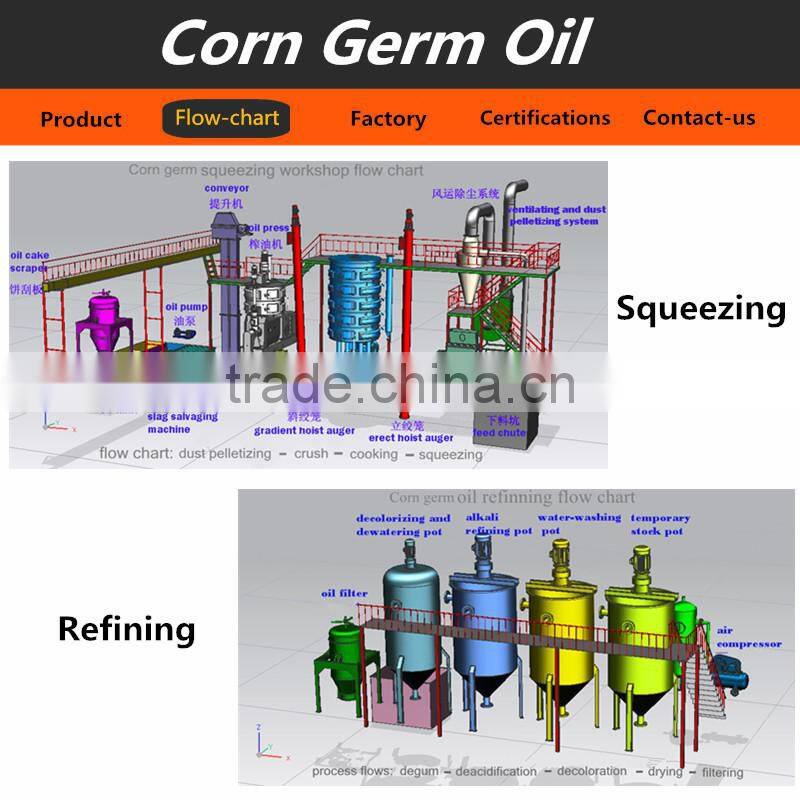

Picture show

  1.We are Alibaba Assessed 5 years Gold Supplier.
2.We are a factory manufacturing edible oil machine,best production capability,best quality control, Best Service.
3.Inspected by the Inspection Institution of Bureau Veritas Certification.
4.100% QC inspection Before Shippment.
5. ISO,CE listed,competitve price.

Company view

Our certificates

Factory price oil seeds solvent extraction plant

As for oil extraction plant, that is using oil extraction method and choosing an organic solvent which can dissolve oil, after contacting with pretreated oil-- spray or immersion, so that oil can be extracted. As the boliling point of solvent and oil are different, after evaporation and stripping, the solvent are evaporating and we can get crude oil.

Oil extraction plant general flow chart

Solvent-- Extractor--Mixed oil --  1st and 2nd evaporation -- Stripping tower -- Crude oil

Wet meal -- DTDC toaster -- Meal

Craft features of oil extraction plant

2.Extraction system is highly adaptable and can adapt to different raw material

3.All equipment is provided with exhaust gas absorption systems with excellent absorption effect

4.Full energy-saving design utilizes heat energy for many times and saves steam consumption

Advantages

Towline extractor, Rotocel extractor, loop extractor

Evaporation and steam stripping equipment

DTDC high efficient energy-saving toaster

The craft index for 20-200 TPD oil extraction plant

1.Solvent consumption: 2.5kg per ton raw material

2.Steam consumption: 250-300kg per ton raw material

3.Electricity consumption:12-19kw.h per ton raw material

4.Water consumption: 0.2m3 per ton raw material

5.Residual oil of meal: ≤0.5-1.5%

6.Residual solvent of meal: ≤500ppm(passing detonation test)

The craft index for 200 - 5000 TPD oil extraction plant

1. Solvent consumption: 1.5kg per ton raw material

2. Steam consumption: 200-250kg per ton raw material

3. Electricity consumption:7-9kw.h per ton raw material

4. Water consumption: 0.2m3 per ton raw material

5. Residual oil of meal: ≤0.5-1.5%

6. Residual solvent of meal: ≤500ppm(passing detonation test)
