Home > Products > Filling & Sealing machine series > JF Automatic aluminum/PP/PE soft tube Filling and sealing machine

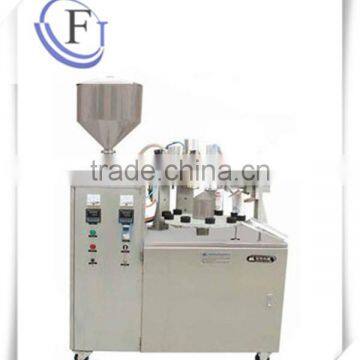

JF Automatic aluminum/PP/PE soft tube Filling and sealing machine
- 2500 Piece / Pieces per Month
- GUANGZHOU
- Credit Card
You May Like
-
2015 JF Metal tube filling and sealing machine, automatic filling machine, swift glue machine
-
2015 laminated tube filling machines/tube filling machine/semi-automatic toothpaste tube filling and sealing machine
-
GZJ-A Metal Tube Filling And Sealing Machine
-
High Quality Customized Jar Sealing Machine
-
Equipment From China For The Small Business Tube Filling And Sealing Machine
-
2015 New Model Small Manufacturing Machines Semi Automatic Tube Filling Sealing Machine
Product Details
| Condition | New | Application | Beverage, Chemical, Commodity, Medical | |
| Packaging Type | Bottles, Stand-up Pouch | Packaging Material | Plastic | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 220V 50HZ | Place of Origin | Guangdong, China | |
| Brand Name | JINFENG | Model Number | GZJ-B | |
| Dimension(L*W*H) | 1230*700*1400mm | Weight | 230kg | |
| Certification | ISO9001 | After-sales Service Provided | No overseas service provided |
Product Description
Specifications
This machine is mainly used for composite hose, plastic tube is a quantitative filling, packing container material and sealing.[Product name] JF~Series aluminum~plastic composite plastic tube filling and sealing machine
[Product introduce]
Use
This machine is mainly used for composite hose, plastic tube is a quantitative filling, packing container material
and sealing, this machine is widely used in pharmaceutical, chemical, food, chemical and other industries
packaging. Such as cream, skin cream, toothpaste, shoe polish, glue, AB glue, epoxy glue, hair coloring agent
etc., liquid or cream filling and sealing.
Working principle
Artificial the pipe is inserted into the sockets, through mechanical transmission, automatic rotation of eight
stations, when the photoelectric detection to the tube, quantitative filling; no tube no filling, through heating
sealing, batch number, the product launch package shear.
Feature
Composite tube filling and sealing machine uses the stainless steel manufacture, all work with high precision
cylinder stroke, easy to adjust filling volume, the filling speed can be adjusted. Sealing appearance neat, tight
sealing, high precision, good stability. Optional according to different materials: hopper heating system
anti~drawing filling head.
Main technical parameters
Model | JF-B |
Voltage | AC 220V 50HZ |
Power consumption | 150W×8(Tube heating) |
Air supply | 0.6-0.8(MPa) |
Gas consumption | <30(dm³/min) |
Filling range | 5-75 20-150 30-250(ml) |
Working capacity | 20-40(b/min) |
Measurement precision | <2% |
Machine size | 1230×700×1400mm |
Machine weight | 230kg |
