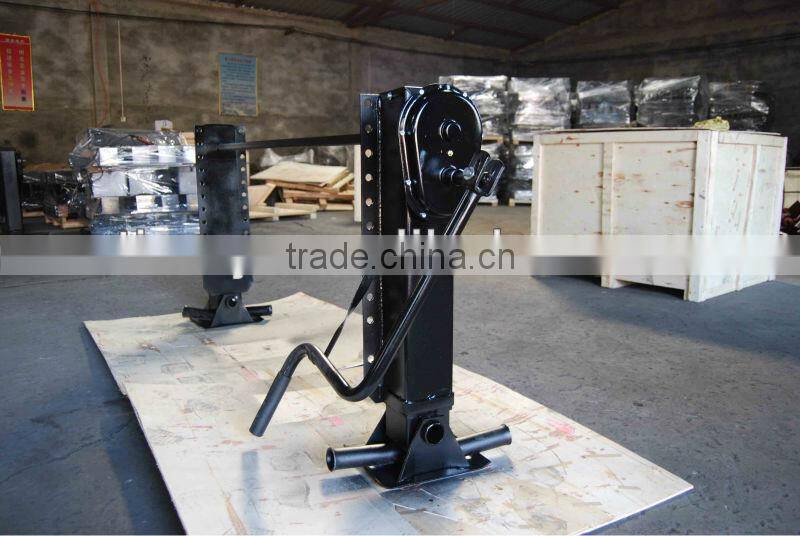

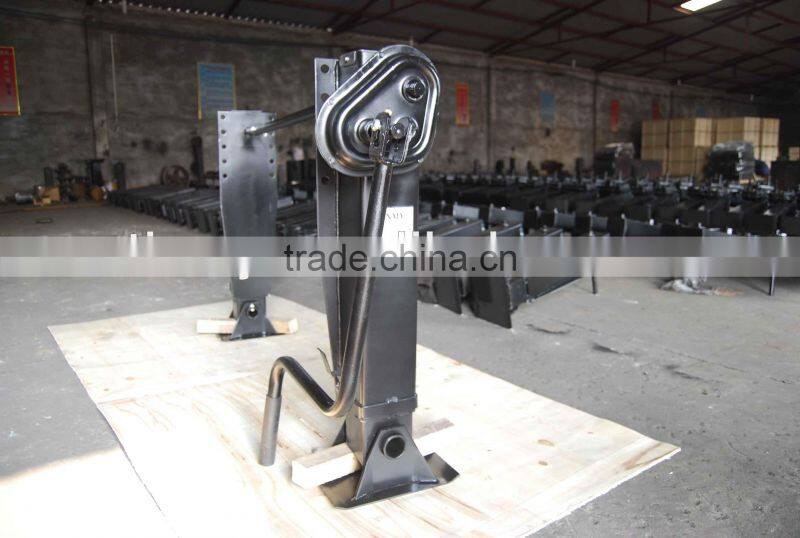

2 Speed 80 Ton Static Capacity Landing Gear
- Xiamen Qingdao
- T/T Credit Card PayPal
You May Like
Product Details
| Parts | Trailer Suspension | OEM No. | TMLO-25 | |
| Max Payload | 80 TON | Size | 25Ton - 35 Ton | |
| Place of Origin | Fujian, China | Brand Name | TINMY | |
| Model Number | TMLO-25 |
Product Description
Landing Gear:
Gearbox Inside details:
| Item No. | Travel | Static Capacity | Lifting Capacity | Lift Speed/turn | Weight (Kg) | Remarks | |
| max | min | ||||||
| TMLI-25 | 14"/17"/19" | 80T | 25T | 6 | 0.67 | 100 | single-side operation |
| TMLI-28 | 14"/17"/19" | 80T | 28T | 7.5 | 0.83 | 102 | single-side operation |
| TMLI-30 | 14"/17"/19" | 80T | 30T | 7.5 | 0.7 | 108 | single-side operation |
Gearbox Outside details:
| Item No. | Travel | Static Capacity | Lifting Capacity | Lift Speed/turn | Weight (Kg) | Remarks | |
| max | min | ||||||
| TMLO-25 | 14"/17"/19" | 80T | 25T | 4.33 | 0.57 | 108 | single-side operation |
| TMLO-28 | 14"/17"/19" | 80T | 28T | 5.42 | 0.72 | 110 | single-side operation |
| TMLO-30 | 14"/17"/19" | 80T | 30T | 5.42 | 0.72 | 116 | single-side operation |
| TMLO-35 | 14"/17"/19" | 80T | 35T | 5.42 | 0.72 | 120 | single-side operation |
Note:
1. Gear box inside and outside with JOST, FUWA, Holland type for semi trailer.
2. The main capacity includes 9ton,11ton, 25ton, 28ton, 30ton, 35ton, etc.
Also 3tons and 6 tons landing gear are available.
3. Competitive price and high quality.
4. Certificate: ISO/TS16949
Function & Attention:
1. Landing Gear is one of the important equipments of semi-trailer. It is adopted to lift and load semi-trailer after leaving and to use as lifter while vehicle maintenance.
2. Landing Gear has slow and fast two speed. Please use slow speed when loading. It is easy to operate. Do not use fast speed. It is possible to injure landing gear.
Xiamen Tinmy Autoparts Co., Ltd., which belongs to Tinmy Group, is a leading manufacturer in auto parts that organized by several factories and successfully certified with TS16949 and ISO9001/2000 quality control system.
OEM service provided.
Complete & considerate after-sale service.
By standard seaworthy packing.
If you have any special request, feel free to tell us.
