Home > Products > Landing Gear > FUWA type Landing Gears 28ton

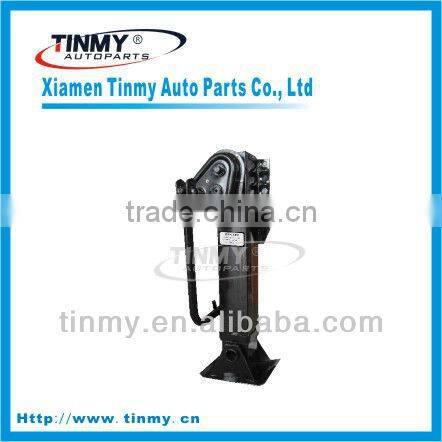

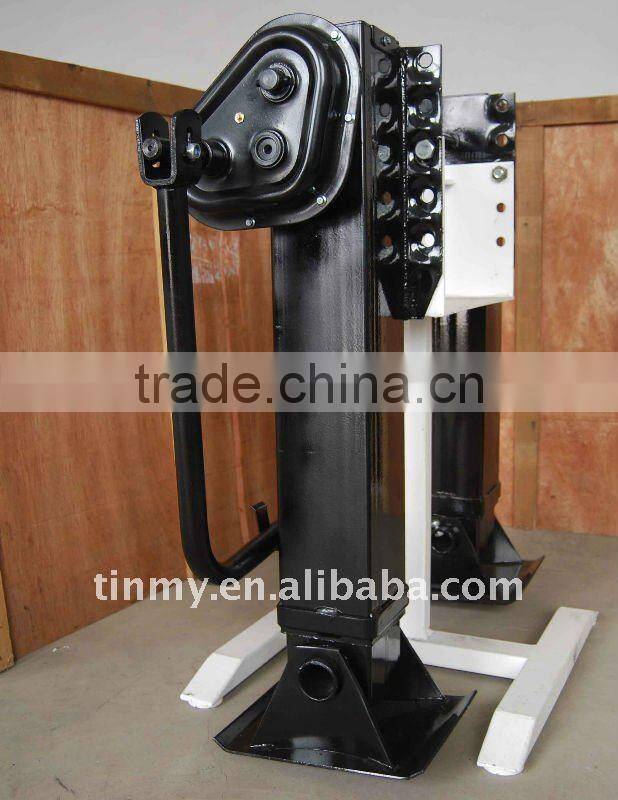

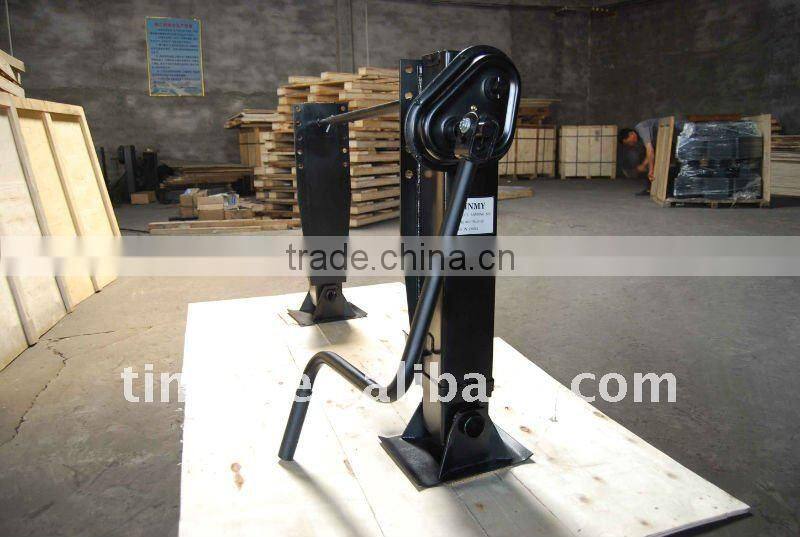

FUWA type Landing Gears 28ton
US$ 115 - 136
/ Pair
5 Pairs(Min. Order)
- Xiamen Qingdao
- T/T Credit Card
You May Like
Product Details
| Parts | Trailer Plugs | OEM No. | TMLO-30 | |
| Max Payload | 80T | Size | Travel 14''-19'' | |
| Place of Origin | Fujian, China | Brand Name | TINMY | |
| Model Number | TMLO-30 |
Product Description
FUWA Landing Gear:
1. Gear box inside and gear box outside with JOST, FUWA & Holland type for semi trailer.
2. The main capacity includes 9 ton, 11 ton, 25ton, 28ton, 30ton, etc. Also 3tons and 6 tons landing gears are available.
3. Competitive price and high quality.
4. Certificate: ISO/TS16949
5. Delivery time: Within 15 days after receipt of TT deposit or LC.
Gear Inside:
| Item No. | Travel | Static Capacity | Lifting Capacity | Lift Speed/turn | Weight (Kg) | Remarks | |
| max | min | ||||||
| TMLI-25 | 14"/17"/19" | 80T | 25T | 6 | 0.67 | 100 | single-side operation |
| TMLI-28 | 14"/17"/19" | 80T | 28T | 7.5 | 0.83 | 102 | single-side operation |
| TMLI-30 | 14"/17"/19" | 80T | 30T | 7.5 | 0.7 | 108 | single-side operation |
Gear Outside:
| Item No. | Travel | Static Capacity | Lifting Capacity | Lift Speed/turn | Weight (Kg) | Remarks | |
| max | min | ||||||
| TMLO-25 | 14"/17"/19" | 80T | 25T | 4.33 | 0.57 | 108 | single-side operation |
| TMLO-28 | 14"/17"/19" | 80T | 28T | 5.42 | 0.72 | 110 | single-side operation |
| TMLO-30 | 14"/17"/19" | 80T | 30T | 5.42 | 0.72 | 116 | single-side operation |
| TMLO-35 | 14"/17"/19" | 80T | 35T | 5.42 | 0.72 | 120 | single-side operation
|
