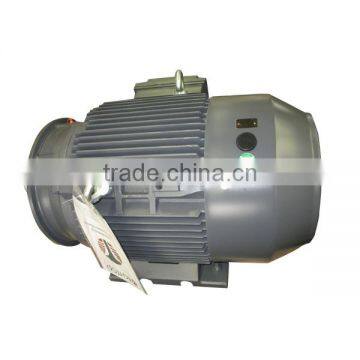

IE3 CE Certified Synchronous 250KW Cast Iron Three Phase Electric Motor
Negotiable
/ Set
1 Set(Min.Order)
- 100000 Set / Sets per Month
- China Sea Port
- T/T
You May Like
-
IE3 Standard Three Phase Cast Iron Motor with UL Approval
-
IE3 Standard 380V 15KW Three Phase Induction Cast Iron Motor with UL Approval
-
IE3 Standard Synchronous Speed 400V 50Hz Three Phase Induction Cast Iron Motor
-
NEMA STANDARD 75KW VHS MOTOR PYCH280/75-4
-
NEMA STANDARD 300KW VHS MOTOR PYCH355/300-4
-
UL LISTED NEMA ODP STANDARD 75HP IE1 FIRE MOTOR (TDC365TS75U2B)
Product Details
| Brand Name | HALOTOP Motor | Model Number | 2 Pole T2C 110kw Motor | |
| Type | Asynchronous Motor | Frequency | 50HZ Motor | |
| Output Power | 110-250KW Motor | Protect Feature | Totally Enclosed | |
| Phase | Three-phase | Certification | CE, UL | |
| AC Voltage | Other, 400V | Place of Origin | Shanghai, China | |
| Efficiency | IE 3 |
Product Description
Specifications
1. IE3 Standard Three Phase Electric Motor2.UL CE Certified Motor
3.2 Pole Motor
4.Cast Iron Motor
IE3 CE Certified Synchronous 110KW - 250KW Cast Iron Three Phase Electric Motor
| Features |
| 1.Energy saving, high efficiency |
| 2.High starting torqaue,lower starting current |
| 3.Versatile design(easy to modify for varieties of application |
| 4.Option of integrated or removable foot |
| 5.Option of aluminum housing up to frame size 200 |
| 6.Option of terminal box location(top, left or right) |
| Applications |
| 1.Pumps |
| 2.Waste water treatment plant |
| 3.Air compressors, fans |
| 4.Gear reducers and power transmission |
| 5.Pulp and paper mill |
| 6.Steel mill |
| 7.Conveyors, elevators |
| 8.Should be "Material handling equipments" |
| 9.Agricultural applications |
| 10.Mining equipment |
| 11.Hydraulic equipments |
| 2 Pole-3000 rpm Synchronous Speed 50Hz | |||||||||||
| Model | Power (KW) | Full Load Speed (r/min) | Inl400V (A) | Ifl400V (A) | Ist/In (Times) | Eff. 100%FL (%) | Power Factor (Cosφ) | Full Load Torque (N.M) | Tst/Tn (Times) | Tmin/Tn (Times) | Tmax/Tn (Times) |
| 315S-2 | 110 | 2940 | 61.71 | 185.31 | 7.7 | 95.2 | 0.9 | 357.29 | 2 | 1.8 | 2.3 |
| 315M-2 | 132 | 2940 | 69.7 | 219.47 | 7.6 | 95.4 | 0.91 | 428.74 | 2 | 1.8 | 2.3 |
| 315L1-2 | 160 | 2945 | 89.2 | 267.86 | 7.8 | 95.8 | 0.9 | 518.81 | 2 | 1.8 | 2.3 |
| 315L2-2 | 200 | 2945 | 117.82 | 338.58 | 7.9 | 95.8 | 0.89 | 648.51 | 2 | 1.8 | 2.3 |
| 355M-2 | 250 | 2945 | 139.37 | 418.53 | 7.8 | 95.8 | 0.9 | 810.64 | 2 | 1.8 | 2.3 |
