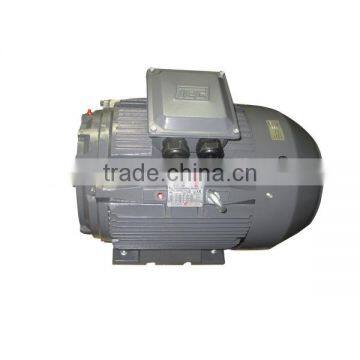

IE2 CE Certified Synchronous 110KW 250KW Cast Iron Three Phase Electric Motor
Negotiable
/ Set
1 Set(Min.Order)
- 100000 Set / Sets per Month
- China Sea Port
- T/T
You May Like
-
IE3 CE Certified Synchronous 250KW Cast Iron Three Phase Electric Motor
-
IE3 Standard Three Phase Cast Iron Motor with UL Approval
-
IE3 Standard 380V 15KW Three Phase Induction Cast Iron Motor with UL Approval
-
IE3 Standard Synchronous Speed 400V 50Hz Three Phase Induction Cast Iron Motor
-
NEMA STANDARD 75KW VHS MOTOR PYCH280/75-4
-
NEMA STANDARD 300KW VHS MOTOR PYCH355/300-4
Product Details
| Brand Name | HALOTOP Motor | Model Number | 6 Pole T2C 110kw Motor | |
| Type | Asynchronous Motor | Frequency | 50HZ Motor | |
| Output Power | 110-250KW Motor | Protect Feature | Totally Enclosed | |
| Phase | Three-phase | Certification | CE, UL | |
| AC Voltage | Other, 400V | Place of Origin | Shanghai, China | |
| Efficiency | IE 2 |
Product Description
Specifications
1. IE2 Standard Three Phase Electric Motor2.UL CE Certified Motor
3.6 Pole Motor
4.Cast Iron Motor
IE2 CE Certified Synchronous 110KW 2500KW Cast Iron Three Phase Electric Motor
| Features |
| 1.Energy saving, high efficiency |
| 2.High starting torqaue,lower starting current |
| 3.Versatile design(easy to modify for varieties of application |
| 4.Option of integrated or removable foot |
| 5.Option of aluminum housing up to frame size 200 |
| 6.Option of terminal box location(top, left or right) |
| Applications |
| 1.Pumps |
| 2.Waste water treatment plant |
| 3.Air compressors, fans |
| 4.Gear reducers and power transmission |
| 5.Pulp and paper mill |
| 6.Steel mill |
| 7.Conveyors, elevators |
| 8.Should be "Material handling equipments" |
| 9.Agricultural applications |
| 10.Mining equipment |
| 11.Hydraulic equipments |
| 6 Pole-1000 rpm Synchronous Speed 50Hz | |||||||||||
| Model | Power (KW) | Full Load Speed (r/min) | Inl400V (A) | Ifl400V (A) | Ist/In (Times) | Eff. 100%FL (%) | Power Factor (Cosφ) | Full Load Torque (N.M) | Tst/Tn (Times) | Tmin/Tn (Times) | Tmax/Tn (Times) |
| 315L1-6 | 110 | 980 | 62.32 | 187.08 | 7.7 | 94.3 | 0.9 | 1071.9 | 2 | 1.8 | 2.3 |
| 315L2-6 | 132 | 980 | 78.75 | 226.3 | 8 | 94.6 | 0.89 | 1286.2 | 2 | 1.8 | 2.3 |
| 355M1-6 | 160 | 980 | 75.05 | 267.3 | 7.6 | 94.8 | 0.91 | 1559.1 | 2 | 1.8 | 2.3 |
| 355M2-6 | 200 | 980 | 112.43 | 337.64 | 7.8 | 95 | 0.9 | 1948.8 | 2 | 1.8 | 2.3 |
| 355L-6 | 250 | 980 | 148.52 | 426.79 | 7.8 | 95 | 0.89 | 2436.1 | 2 | 1.8 | 2.3 |
