Home > Products > Agricultural Film Machine > Large-scale Spread Geomembrane Machine Set

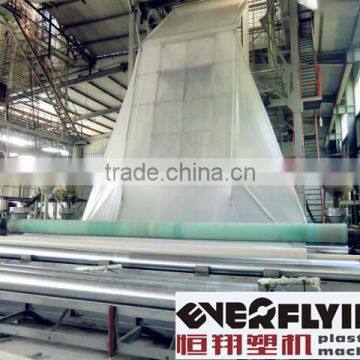

Large-scale Spread Geomembrane Machine Set
- Qingdao
You May Like
-
3-layer co-extrusion blown film extrusion line Unwind Geomembrane Machine Set
-
Three layers co-extruding upper traction rotation film blown machine unit
-
Three-layer co-extruding upper traction rotation film blown machine unit
-
The Professional Manufacturer For Making Monostratum Plastic Greenhouse Film Machine Set
-
Bottom Blowing Plastic Water Saving Drip Irrigation Tape Equipment
-
agriculture machinery equipment micro-spray belt production line
Product Details
| Place of Origin | Shandong, China | Brand Name | Hengxiang | |
| Model Number | 3FM3500/3FM4500 | After-sales Service Provided | Overseas service center available |
Product Description
Specifications
This equipment is mainly used to produce three-layer composite plastic impermeable film and geomembrane.
» Features and application
The equipment is composed of three sets extruders, hydraulic fast net-changing device,three-layer compound handpiece,double-tuyere air ring,traction machine,recoiling machine and temperature and electrical equipment control system.
1. The unit adopts dedicated extruder and special type screw,so it can enhance plasticzing capacity and increase output.And the complete machine can move,so it is convenient for adjusting.
2. Three-layer compound dedicated spiral handpiece both can produce geomembrane and greenhouse film.
3. It adopts hydraulic fast net-changing device, fast and convenient.
4. It adopts foreign advanced technology, introducing IBC inner cooling control system and double-tuyere air ring. So it is convenient for controling cooling air quantity ang enhancing cooling effect.
5. The traction machine adopts variable frequency motor to control and equipped with penumatic clamp system,so the up tractor and recoiling machine can be controled synchronously.
6. The recoiling machine adopts centre and friction winding way.
»Technical parameters
Model | 3FM3500 | 3FM4500 |
| Production width(mm) | 6000 | 8000 |
Thickness (mm) | 0.3-2 | 0.3-2 |
| Number of layers | 3 | 3 |
| Suitable material | LDPE,LLDPE,EVA,mLLDPE,HDPE | |
| Max. output(kg/h) | 1000 | 1500 |
| Extruder | Ø150/30×3 | |
| Main motor(kw) | 250×2 | 280×3 |
| Die diameter (mm) | Ø1800 | Ø2400 |
| Air ring diameter (mm) | 3600 | 4000 |
| Traction height (mm) | 21000 | 24000 |
| Traction speed | 3-30m/min | |
| Winding way | Friction winding | |
