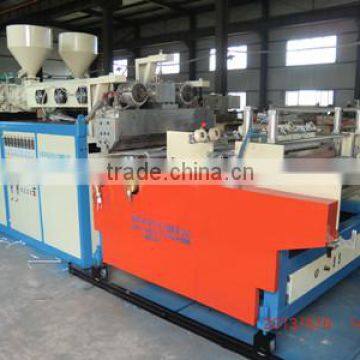

pe stretch film product line Warp film making machine with high speed
- Qingdao
You May Like
-
Everflying Sell worldwide PE SJ-65/30 Stretch film machine for wrapping
-
two layers Casting Stretch Film production line
-
payment asia china three layers Casting Stretch Film production line
-
Pla film blowing machine Casting Stretch Film three layers production line
-
extrude machine for plastic film SJ-65 Cast Film Production Line
-
Super-speed full-automatic stretch film production line
Product Details
| Condition | New | Product Type | Other, Cast | |
| Place of Origin | Shandong, China | Brand Name | Hengxiang | |
| Model Number | 2FM700/2FM1250/3FM1800/3FM2500 | Certification | ISO9001 | |
| After-sales Service Provided | Overseas service center available |
Product Description
Specifications
This production line uses LLDPE as main raw material,and adopts several different kinds of resin.
» Features and application
1.This unit is mainly used to produce the packaging film to package food and top grade texile.The main raw material are LDPE,LLDPE,HDPE and EVA.If adding knurling device,it also can produce knurling film.
2. This unit is composed of efficient extruder, shock chilling constant temperature cooling system, film swing system, corona disposal system, rolling constant swelling automatic control system and extruder constant temperature constant voltage automatic control system.
3.This unit can adopt three extruders to coextrude to produce three-layer(A.B.C)or five-layer(A.C.B.C.A)composite film.This unit also can produce monolayer,double-layer or three-layer plastic packaging film according to the customer requirements.
4.This production line has the advantage of high output,low energy consumption and advanced tension control system. The film tension can be below 10N.m.
» Technical parameters
| Model | 2FM700 | 2FM1250 | 3FM1800 | 3FM2500 |
| Die head width(mm) | 700 | 1250 | 1800 | 2500 |
| Film width (mm) | 500 | 1000 | 1500 | 2200 |
| Film thickness (mm) | 0.02-0.15 | 0.02-0.15 | 0.02-0.15 | 0.02-0.15 |
| Screw dia. (mm) | Ø45×2 | Ø 55 × 2 | Ø65/ Ø 90/ Ø 65 | Ø 90/Ø120/ Ø 90 |
| Screw speed(r/min) | 100 | 100 | 100 | 100 |
| Main motor(kw) | 11 × 2 | 22× 2 | 37/75/37 | 75/132/75 |
| Line speed(m/min) | 100 | 100 | 100 | 100 |
| Winding dia. (mm) | Ø 600 | Ø 600 | Ø 800 | Ø 800 |
