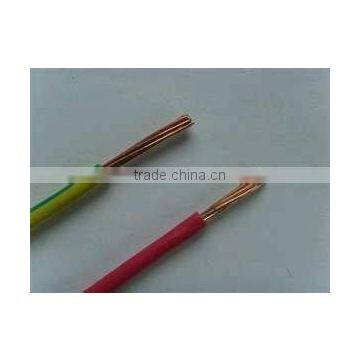

PVC Electric Wire Flexible Hose APT-030
- 10000 Meter / Meters per Month
- Shenzhen or Guangzhou
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Xindong | |
| Model Number | APT-030 | Type | Insulation Sleeving | |
| Material | Other, PVC, UL PVC | Application | Low Voltage | |
| Rated Voltage | 600 v | Tensile Strength | 10.4, ≥10.4 |
Product Description
Specifications
PVC ELECTRICAL HOSE1.105 Centigrade UL PVC Material
2.Voltage Rating 300V, 600V
3.Excellent insulation
4.UL224 VW-1
PVC Electric Wire Flexible Hose APT-030
|
- Specification: φ1.00mm ~ φ20.00mm
- 105oC UL PVC material
- Rated voltage: 300V, 600V
- Excellent insulation and flexibility
- UL approved
- Meet RoHS standards
Item | Unit | Test Condition | Numerical Value | ||
HCY-3 | HCY-6 | ||||
Voltage rating | v | 300 | 600 | ||
Temperature rating | °C | UL224 | 105 | ||
Voltage resistance | Before aging | UL224 23°C | 2500V/60sec | ||
After aging | UL224 136°C 168hr | 2500V/60sec | |||
Volume resistivity | Ω.cm | UL224 | ≥1010 | ||
Tensile Strength | Before aging | Mpa | UL224 23°C | ≥10.4 | |
After aging | Mpa | UL224 136°C 168hr | ≥7.3 | ||
Elongation | Before aging | % | UL224 23°C | ≥100% | |
After aging | % | UL224 136°C 168hr | ≥100% | ||
Flexibility | UL224 136°C 168hr | No cracking | |||
Heat shock | UL224 180°C 4hr | No cracking | |||
Cold bend | UL224 -30°C 1hr | No cracking | |||
Copper stability | UL224 136°C 168hr | No eroding | |||
Flame resistance | UL224 | VW-1 | |||
AWG No. | I.D. (mm) | Wall Thickness (mm) | Packing Size (m/r) | |
HCY-3 | HCY-6 | |||
24 | 0.55±0.1 | 0.25±0.05
| 0.40±0.05
| 305
|
22 | 0.65±0.1 | |||
20 | 0.85±0.1 | |||
19 | 0.9±0.1 | 0.30±0.05 | 0.40±0.05 | 305 |
18 | 1.0±0.15 | 0.30±0.05 |
0.45±0.05
|
305
|
17 | 1.2±0.15 | |||
16 | 1.3±0.15 | |||
15 | 1.5±0.15 | |||
14 | 1.7±0.15 | |||
13 | 1.9±0.2 | |||
12 | 2.1±0.2 | 0.35±0.05
| 0.50±0.05 | 305
|
11 | 2.4±0.2 | |||
10 | 2.7±0.2 | |||
9 | 3.0±0.2 | 0.40±0.05
| 0.50±0.05
| 305
|
8 | 3.3±0.2 | |||
7 | 3.7±0.2 | |||
6 | 4.2±0.3 | 0.45±0.05 | 0.50±0.05 | 305 |
5 | 4.7±0.3 | 0.45±0.05 | 0.55±0.05
| 305
|
4 | 5.3±0.3 | |||
3 | 5.9±0.3 | |||
2 | 6.6±0.3 | 0.45±0.05
| 0.55±0.05
| 152
|
1 | 7.4±0.35 | |||
0 | 8.3±0.35 | |||
Especial directions:
1.The PVC Tubing supplied for the customers should be based upon the samples that both sides have confirmed, not restricted by the numerical capability value above.
2.The company can manufacturer PVC Tubings which have achieved all the numerical capability value above, however the price should be consulted face to face.
3.Our company can manufacture PVC Tubing on customers' requirements of the size and col or.
