High Flow Water Pump 50kw
- Tianjin Port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | An Pump | |
| Model Number | QS | Theory | Centrifugal Pump | |
| Structure | Single-stage Pump | Usage | Water | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Diesel | Pressure | High Pressure | |
| Application | Other, water, water, sea water, hot water, cooling water, rain,sewage etc |
Product Description
high flow water pump 50kw
Shijiazhuang An Pump Machinery Co., Ltd
The main pump products including slurry pump, desulfurization pump, gravel pump, sewage pump, impurity pump, split pump with large capacity, multistage pump with hjgh lift, centrifugal water pump and self priming pump, could meet various requirements of all the customers
Centrifugal Water Pump Description -- large water pump
Type QS pumps are single stage, double suction with horizontally split casings.They are suitable for pumping clean water or liquid similar to it in physical and chemical properties at a temperature not exceedding 80 °C ( for common material ) .
The main components of QS,QSH pump are listed as follows:lower half casing , upper half casing , impeller , shaft , double suction sealing , shaft sleeve , bearing housings , and couplings .
Centrifugal water pump features
| 1. Large flow rate |
| 2. Operation stability |
| 3. Double-volute structure |
| 4. Resonable price |
| 5. OEM available |
Centrifugal Water Pump performance parameters
| Type | Flow(m3/h) | Head(m) | Speed(rpm) | Power(KW) |
| QS150 | 112--220 | 35--84 | 2900 | 30--55 |
| QS200 | 160--351 | 31--100 | 2900 | 37--110 |
| QS250 | 324--612 | 8.6--65.1 | 1450 | 22--132 |
| QS300 | 504--1663 | 8.7--140 | 1450--1470 | 22--680 |
| QS350 | 745--1570 | 10--125 | 1450--1470 | 55--630 |
| QS400 | 900--1620 | 32--85.5 | 980--1480 | 440--500 |
| QS500 | 1150--3800 | 10.6--108 | 740--970 | 110--800 |
| QS600 | 2300--4000 | 13--80 | 730--970 | 145--730 |
| QS700 | 2111--4896 | 39.5--99.5 | 742--980 | 397--1252 |
| QS800 | 3960--6878 | 23--84 | 600--750 | 450--1600 |
| QS1000 | 6600--9900 | 32--52 | 600 | 1250 |
| QS1200 | 5832--14400 | 6--95.7 | 500--745 | 710--3450 |
Centrifugal Water Pump performcance curve

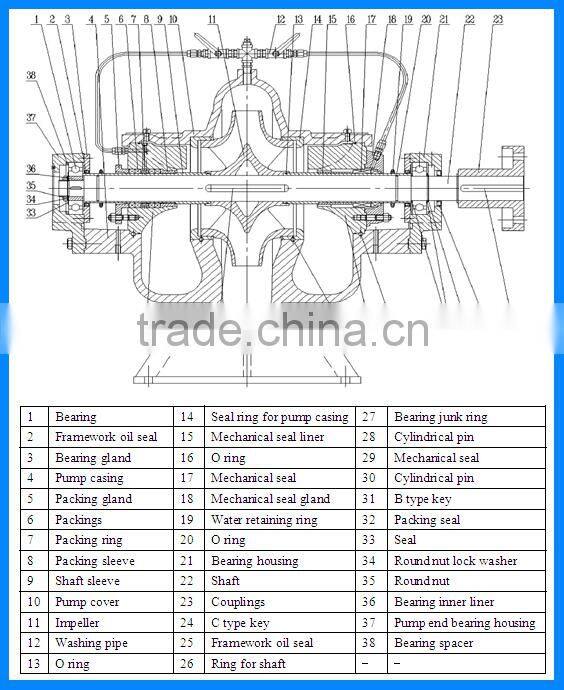

Centrifugal Water Pump constructure

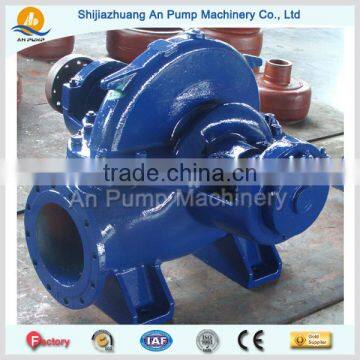

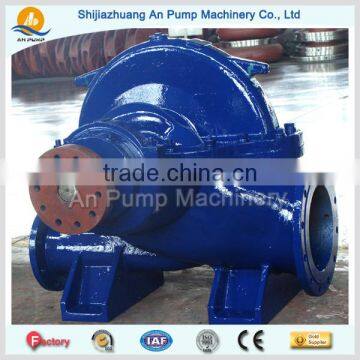

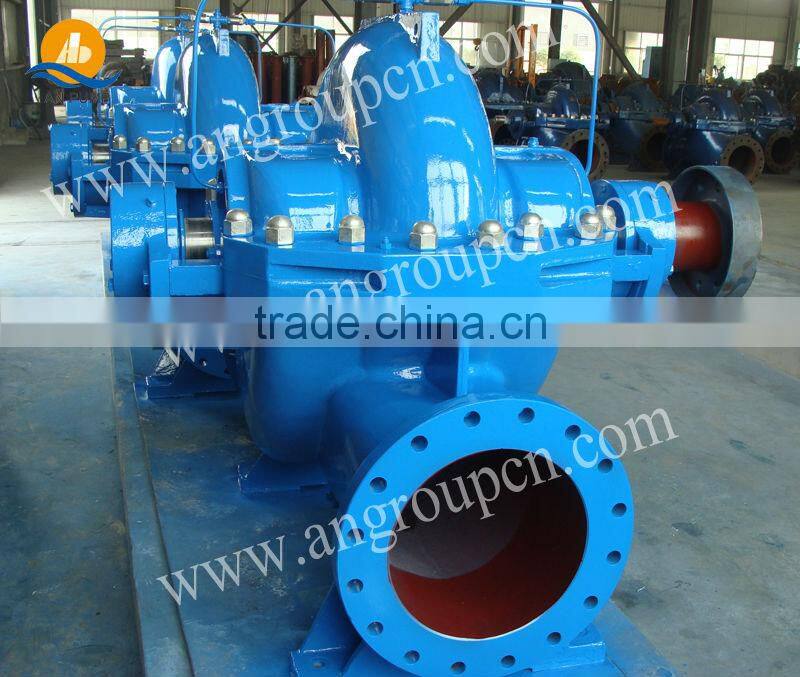

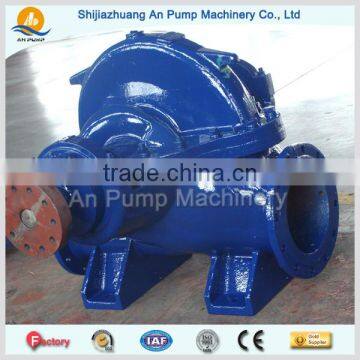

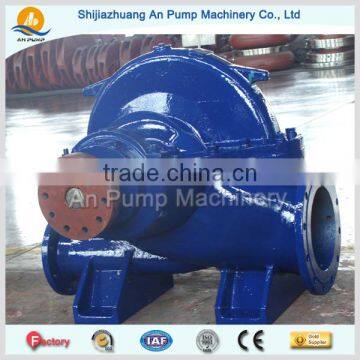

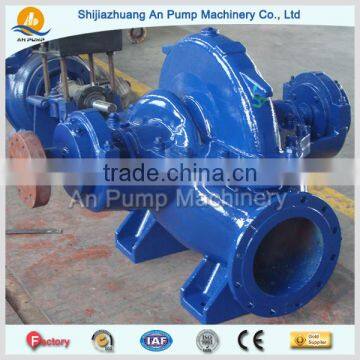

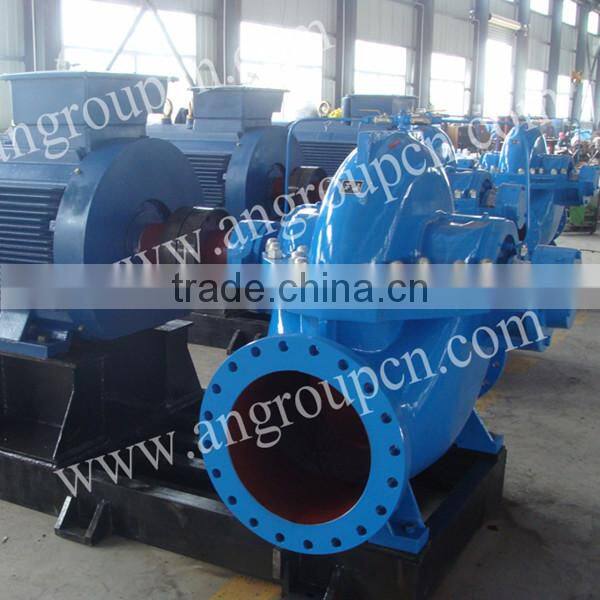

Centrifugal Water Pump show

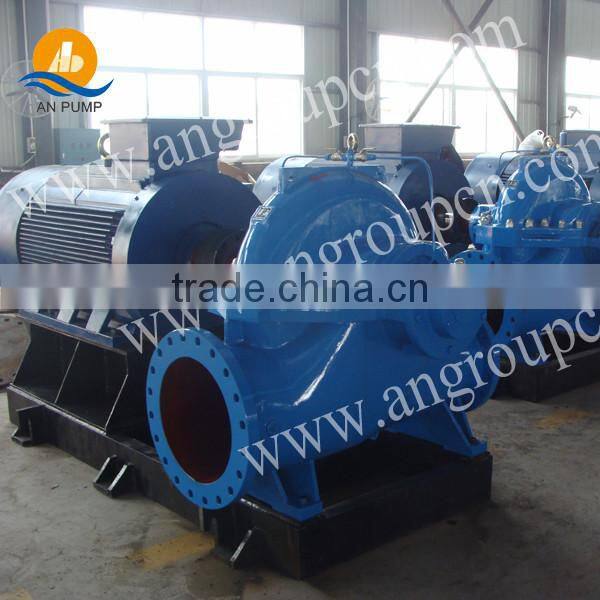

Centrifugal Water Pump on site application
Industry | Plumbing Applications |
General water supply | Circulation of HVAC building systems , water booster service , boiler feed , general circulation service and more . |
Agriculture / Food / Beverage | Irrigation , water supply , food processing , beverage processing , fertilizers . |
Manufacturing | Pulp and paper fans , plastic & rubber , metal & steel , pharmaceutical , paper mills , air wash , marine ballast service . |
Fire / Disaster Relief | Fire pumps , fire protection , flood control , disaster relief , federal / military . |
Utilities : Water / Wastewater | Power Generation stations , dewatering , desalination , energy recovery turbines |
Chemical / Mining | Chemical plants , refineries , petroleum distribution , coal sites , ethylene glycol pumping . |
If interested , please contact us right now ! ! !
