high volume high pressure water pumps
- Tianjin/Shanghai/Guangzhou/Shenzhen
- T/T L/C Credit Card PayPal
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | An Pump | |
| Model Number | QS,High volume water pump | Theory | Centrifugal Pump | |
| Structure | Single-stage Pump | Usage | Other, irrigation pump,split case pump,double suction pump | |
| Power | Other, electric or diesel | Standard or Nonstandard | Other, standard,irrigation pump,split case pump,double suction pump | |
| Fuel | Other, electric water pump/diesel water pump | Pressure | Other, high pressure pump,stainless steel pump | |
| Application | Other, agriculture/irrigation/industrial/ |
Product Description

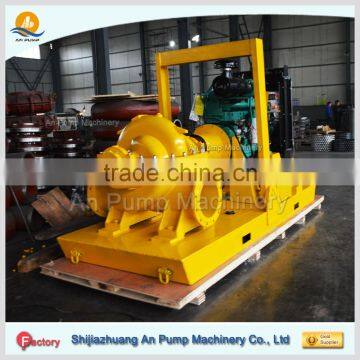

high volume high pressure water pumps
high volume high pressure water pumps introduction
Type QS pumps are single stage, double suction with horizontally split casings.They are suitable for pumping clean water or liquid similar to it in physical and chemical properties at a temperature not exceedding 80 °C ( for common material ) .
The main components of QS,QSH pump are listed as follows:lower half casing , upper half casing , impeller , shaft , double suction sealing , shaft sleeve , bearing housings , and couplings .
high volume high pressure water pumps features
| 1. Large flow rate |
| 2. Operation stability |
| 3. Double-volute structure |
| 4. Resonable price |
| 5. OEM available |
high volume high pressure water pumps parameters
| Type | Flow(m3/h) | Head(m) | Speed(rpm) | Power(KW) |
| QS150 | 112--220 | 35--84 | 2900 | 30--55 |
| QS200 | 160--351 | 31--100 | 2900 | 37--110 |
| QS250 | 324--612 | 8.6--65.1 | 1450 | 22--132 |
| QS300 | 504--1663 | 8.7--140 | 1450--1470 | 22--680 |
| QS350 | 745--1570 | 10--125 | 1450--1470 | 55--630 |
| QS400 | 900--1620 | 32--85.5 | 980--1480 | 440--500 |
| QS500 | 1150--3800 | 10.6--108 | 740--970 | 110--800 |
| QS600 | 2300--4000 | 13--80 | 730--970 | 145--730 |
| QS700 | 2111--4896 | 39.5--99.5 | 742--980 | 397--1252 |
| QS800 | 3960--6878 | 23--84 | 600--750 | 450--1600 |
| QS1000 | 6600--9900 | 32--52 | 600 | 1250 |
| QS1200 | 5832--14400 | 6--95.7 | 500--745 | 710--3450 |
high volume high pressure water pumps curve
high volume high pressure water pumps structure
high volume high pressure water pumps material
1. Pump Casing and Cover : Cast Iron GG25 ; Ductile Cast Iron GGG40 ; Cast Steel ; SS304 316, 316L ; Duplex SS CD4-MCu ; Bronze
2. Pump Impeller : Cast Iron GG25 ; Ductile Cast Iron GGG40 ; Cast Steel ; SS304 316 316L ; Duplex SS CD4-MCu ; Bronze
3. Shaft : Carbon steel AISI1045 ; Chrome Steel 40Cr ; SS AISI420 ; SS AISI4140 ; SS316Ti ; SS, DIN1.4571 ; Duplex SS UNS S32205
4. Seal Type : Mechanical seal , gland packing.
5. Bearing Type : Ball Rolling
6. Shaft Sleeve : Cast Steel ; SS304 316 316L ; Duplex SS CD4-MCu
7. Wearing Ring: Cast Steel ; SS304 316 316L ; Duplex SS CD4-MCu
high volume high pressure water pumps application
Industry | Plumbing Applications |
General water supply | Circulation of HVAC building systems , water booster service , boiler feed , general circulation service and more . |
Agriculture / Food / Beverage | Irrigation , water supply , food processing , beverage processing , fertilizers . |
Manufacturing | Pulp and paper fans , plastic & rubber , metal & steel , pharmaceutical , paper mills , air wash , marine ballast service . |
Fire / Disaster Relief | Fire pumps , fire protection , flood control , disaster relief , federal / military . |
Utilities : Water / Wastewater | Power Generation stations , dewatering , desalination , energy recovery turbines |
Chemical / Mining | Chemical plants , refineries , petroleum distribution , coal sites , ethylene glycol pumping . |
high volume high pressure water pumps packing and shipping
Our Services
1. Offer Large capacity pump solutions
2. Selection
3. OEM available
4. ODM available
5. Design
6. Installation
7. Maintenance
Our Main Products
Some clients visit our factory
