large flow split case horizontal centrifugal water pump
- 1000 Set / Sets per Month
- Tianjin or other seaports in China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | An Pump | |
| Model Number | QS | Theory | Centrifugal Pump | |
| Structure | Single-stage Pump | Usage | Water | |
| Power | Other, diesel or electric | Standard or Nonstandard | Standard | |
| Fuel | Other, diesel or electric | Pressure | High Pressure | |
| Application | Other, water |
Product Description
large flow split case horizontal centrifugal water pump
Split Casing Pump Description
Type QS pumps are single stage, double suction with horizontally split casings.They are suitable for pumping clean water or liquid similar to it in physical and chemical properties at a temperature not exceedding 80 °C ( for common material ) .
The main components of QS,QSH pump are listed as follows:lower half casing , upper half casing , impeller , shaft , double suction sealing , shaft sleeve , bearing housings , and couplings .
double suction pump features
| 1. Large flow rate |
| 2. Operation stability |
| 3. Double-volute structure |
| 4. Resonable price |
| 5. OEM available |
Split Casing Pump performance parameters
| Type | Flow(m3/h) | Head(m) | Speed(rpm) | Power(KW) |
| QS150 | 112--220 | 35--84 | 2900 | 30--55 |
| QS200 | 160--351 | 31--100 | 2900 | 37--110 |
| QS250 | 324--612 | 8.6--65.1 | 1450 | 22--132 |
| QS300 | 504--1663 | 8.7--140 | 1450--1470 | 22--680 |
| QS350 | 745--1570 | 10--125 | 1450--1470 | 55--630 |
| QS400 | 900--1620 | 32--85.5 | 980--1480 | 440--500 |
| QS500 | 1150--3800 | 10.6--108 | 740--970 | 110--800 |
| QS600 | 2300--4000 | 13--80 | 730--970 | 145--730 |
| QS700 | 2111--4896 | 39.5--99.5 | 742--980 | 397--1252 |
| QS800 | 3960--6878 | 23--84 | 600--750 | 450--1600 |
| QS1000 | 6600--9900 | 32--52 | 600 | 1250 |
| QS1200 | 5832--14400 | 6--95.7 | 500--745 | 710--3450 |

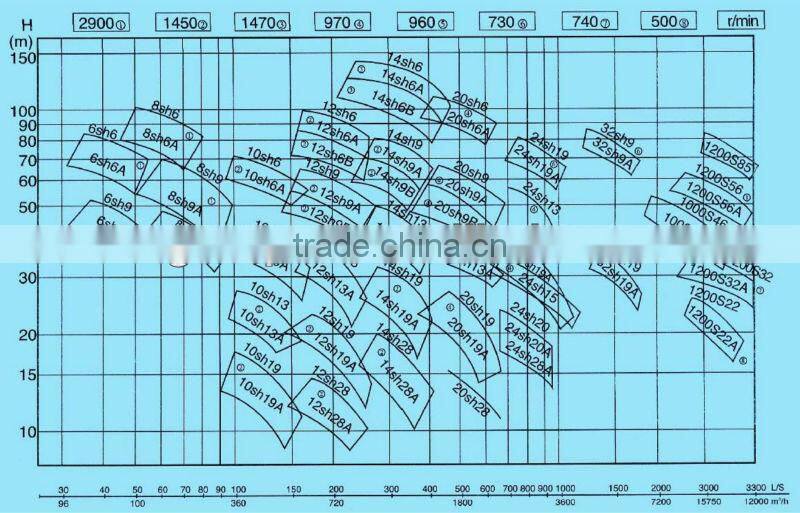

Split Casing Pum performcance curve

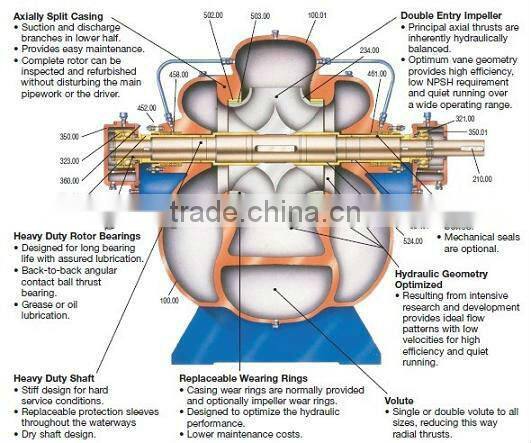

Split Casing Pum constructure
Split Casing Pum on site application
Industry | Plumbing Applications |
General water supply | Circulation of HVAC building systems , water booster service , boiler feed , general circulation service and more . |
Agriculture / Food / Beverage | Irrigation , water supply , food processing , beverage processing , fertilizers . |
Manufacturing | Pulp and paper fans , plastic & rubber , metal & steel , pharmaceutical , paper mills , air wash , marine ballast service . |
Fire / Disaster Relief | Fire pumps , fire protection , flood control , disaster relief , federal / military . |
Utilities : Water / Wastewater | Power Generation stations , dewatering , desalination , energy recovery turbines |
Chemical / Mining | Chemical plants , refineries , petroleum distribution , coal sites , ethylene glycol pumping . |
If interested, please contact us right now ! ! !
An Pump Machinery is your Best Pump Manufacturer
An Pump Machinery Co. ,Ltd is the pump manufacturer with 50+ years experienced
Our pumps export to over 90 countries all over the world in mining, power plant, dredging and dredge, hydraulic, irrigation, pulp transfer, chemical, construction, sea water and oil & gas transfer etc.
An Pump Machinery is your ISO certificated Pump Manufacturer
An Pump Machinery is also CE cerficated and ISO certificated Pump Manufacturer
Linda
Email: edson(at) linda(at)
Whatsapp: 0086 15132483720
Wechat: 0086 15132483720
Skype: edson(at)
