Electric Engine Driven Fire Fighting Pump With Motor
- Tianjin shanghai shenzhen etc any port of china is ok
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
24 Inch Flood Diesel Split Case High Flow Horizontal Single Stage Pump
-
Diesel Engine Driven Sea Water Pump
-
Diesel Engine Driven Spray Irrigation Pump
-
China Supplier Trailer Double Suction Pump For Underground Water
-
Farm Water Pump With Diesel Generator
-
Diesel Engine Driven Large Flow Water Draining Pump
Product Details
| Place of Origin | Hebei, China | Brand Name | An Pump | |
| Model Number | QS split case pump | Theory | Centrifugal Pump | |
| Structure | Single-stage Pump | Usage | Water | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Other, diesel engine or gasolin engine etc | Pressure | Other, standard | |
| Application | Other, water, sewage,fire system, chemical liquid etc |
Product Description

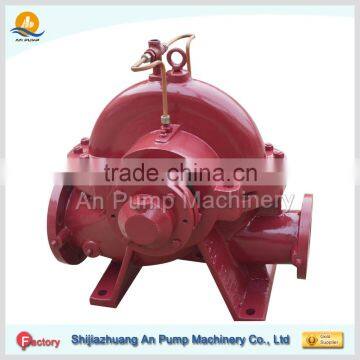

electric engine driven fire fighting pump with motor

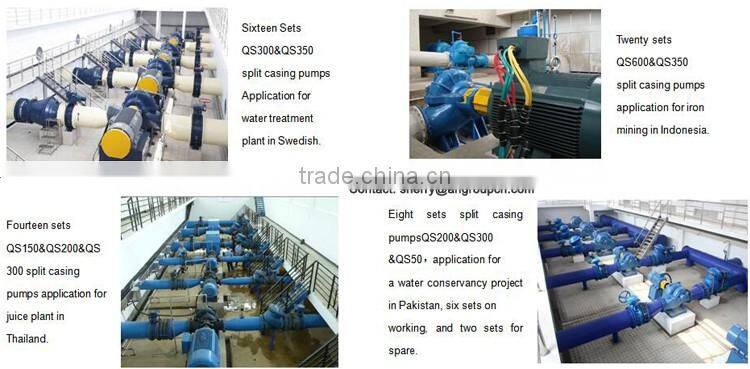

Aerospace | Oil & Gas |
Building Trades | Power Station |
Chemical | Petro- Chemical |
General Industry | Pharmaceutical |
Marine | Pulp & Paper |
Mining & Aggregate | Water & Wastewater |
Performance data of electric engine driven fire fighting pump with motor
Pump Type
| Q Flow | H Head (m) | n Speed (rpm) | N Power(kw) | η Eff (%) | NPSH | ||
(m3/h) | (L/s) | Shaft power | Motor | |||||
250QS-39 | 360 486 612 | 100 135 170 | 42.5 38.5 32.5 | 1450 | 55.5 61.5 67.7 | 75 | 75 93 80 | 4 |
250QS-39A | 324 468 576 | 90 130 160 | 35.5 30.5 25 | 1450 | 40.2 45.7 47.8 | 55 | 78 86 82 | 4 |
250QS-24 | 360 486 576 | 100 135 160 | 27 23.5 19 | 1450 | 33.1 36.2 36.4 | 45 | 80 86 82 | 4 |
250QS-24A | 342 414 482 | 95 115 134 | 22.2 20.3 17.4 | 1450 | 25.8 27.6 28.6 | 37 | 80 83 80 | 4 |
250QS-14 | 360 486 576 | 100 135 160 | 17.5 14 11 | 1450 | 21.4 21.8 22.1 | 30 | 80 85 78 | 4 |
300QS-90 | 590 792 936 | 164 220 260 | 98 90 82 | 1450 | 213 245 279 | 260 | 74 80 75 | 4.6 5.5 6.5 |
300QS-58 | 576 792 972 | 160 210 255 | 65 58 50 | 1450 | 128 149 168 | 180 | 80 84 79 | 5.5 |
Performance data of electric engine driven fire fighting pump with motor
Please contact us for more data.
Sherry Lee
Email: sherry at
Skype: pump_sales_sherry
Pump Type
| Flow (Q) | H Head (m) | n Speed (rpm) | N Power(kw) | η Eff (%) | NPSH | ||
(m3/h) | (L/s) | Shaft power | Motor | |||||
600QS-15 | 2500 3600 4000 | 694 1000 1111 | 33.5 30 28.5 | 740 | 316.7 345.6 365 | 420 | 70 85 83 | 5 5.5 5.8 |
600QS-47 | 2502 3168 3499 | 695 880 972 | 56 47.4 38 | 970 | 460 465 426 | 550 | 83 88 80 | 7.5 |
600QS-32 | 2480 3170 3960 | 700 880 1100 | 37 32 22 | 970 | 295 310 279 | 380 | 86 87 85 | 7.5 |
600QS-21 | 2500 3600 3800 | 694.4 1000 1055 | 24.5 21 20.4 | 740 | 238.3 248 256 | 340 | 70 83 82.5 | 5 |
600QS-22 | 2340 2880 3420 | 650 800 950 | 23.5 21 18 | 970 | 187 195 207 | 250 | 80 84.5 81 | 7.5 |
700QS-90 | 3715 4700 4896 | 1032 1306 1360 | 99.5 90 87 | 980 | 1157 1252 1018 | 1250 | 87 92 89.5 | 9.5 |
700QS-90A | 3420 4336 4517 | 952 1204 1255 | 84.5 76.5 74 | 980 | 929 1005 1018 | 1250 | 85 90 89.5 | 8 |

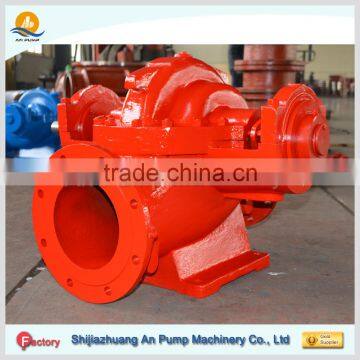

electric engine driven fire fighting pump with motor
Model QS pump is a single-stage double-suction horizontal split centrifugal pump and used to transport pure water and the liquid of both physical and chemical nature similar to those of water, the maximum temperature of which must not be over 125℃.
Both inlet and outlet of this pump are placed under the axial line, horizontally and vertical to the axial line, the pump casing is opened in the middle so it is unneccessary to remove the water inlet and outlet pipelines and motor(or other prime movers). The pump moves CW viewing from the clutch to it. The pump moving CCW can also be made, but it should be specially noted at order.
The main parts of the pump are: pump casing, pump cover , impeller , shaft, dual-suction seal ring, muff, bearing etc. and all of them, except the axle which is made of quality carbon steel, are made of cast iron. The material may be replaced with others upon different media.
Products title: electric engine driven fire fighting pump with motor
The volute casing is split on the horizontal centerline with the suction and discharge nozzle cast integral with the pump casing. The upper casing is accurately located on the lower half by the use of dowel pins. The upper casing can be removed to inspect the interior of the pump without disturbing the pipe connections or pump alignment.
The impeller is static-balance calibrated, fixed with the muff and the muff nuts in both sides and its axial position can be adjusted via the nuts and axial force gets balanced by means of the symmetrical arrangement of its blades, there may be residual axial force which is borne by the bearing at the axle end.

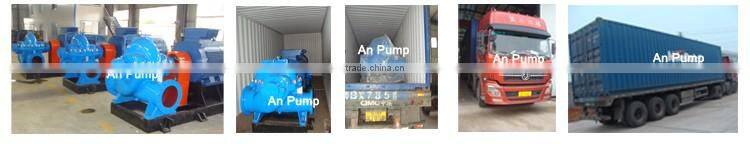

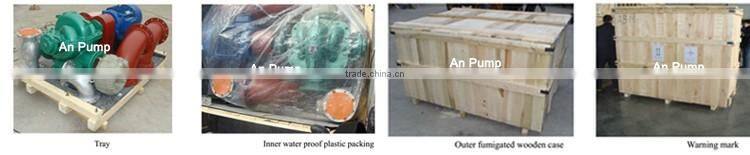

Wooen case package of electric engine driven fire fighting pump with motor
Load into container of Products title: electric engine driven fire fighting pump with motor
Shipment of Products title: electric engine driven fire fighting pump with motor
Please contact us for more data.
