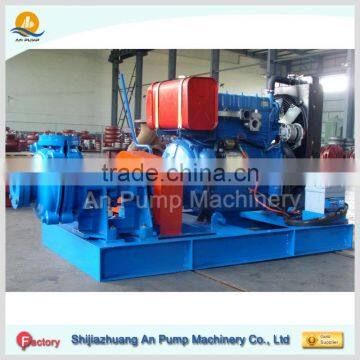

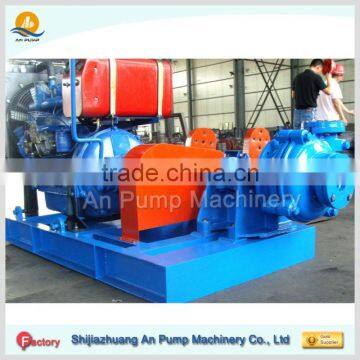

High Chrome Diesel Engine Driven Slurry Pump Used for Mining

High chrome Diesel engine driven slurry pump used for mining

General introduction of diesel engine driven slurry pump

AM/AMR series is horizontal, cantilevered centrifugal slurry pump, with reasonable construction, reliable operation, long service life. It is widely used in transporting abrasive or / and corrosive slurry in mining, metallurgy, electric power, coal, chemicals, building, etc. Especially well accepted by coal / chrome washing plant, mineral processing plant, power plant etc.

Design Features of diesel engine driven slurry pump

• Bearing assembly – A large diameter shaft with short overhang minimizes deflection and contributes to long bearing life. Only four  through bolts are required to hold the cartridge type housing in the  frame.

• Liners – Easily replaceable liners are bolted, not glued, to the casing for positive attachment and ease of maintenance. Hard metal liners are completely interchangeable with pressure molded  elastomers. Elastomer seal rings back all liner joints.

• Casing – Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure capabilities and an extra measure of safety.

• Impeller – Front and rear shrouds have pump out vanes that reduce recirculation and seal contamination. Hard metal and molded elastomer impellers are completely interchangeable. Cast  in impeller threads require no inserts or nuts. High efficiency and high head designs are also available.

• Throat bush – Wear is reduced and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.

• One-piece frame – A very robust one-piece frame cradles the cartridge type bearing and shaft assembly. An external impeller adjustment mechanism is provided below the bearing housing for

easy adjustment of impeller clearance.

AM/AMR diesel engine driven slurry pump Structure

AM,AMR diesel engine slurry pump Performance Data

AM, AMR diesel engine driven slurry pump Performance Curve

Chemical Process

Heavy Minerals

Paper and Pulp

Mill Discharge

Sugar Beet

Slag Granulation

Bottom Boiler and Fly Ash

Cyclone Feed

Power Utilities

AM, AMR Diesel engine driven Slurry Pump Package and Shipping

 Factory of An Pump Machinery Co.,Ltd

FAQ of AM Chemical series slurry pump

1. Q: Are you a trading company or manufacture?

    A: An Pump Machinery Co., Ltd is a real large professional manufacturermore than 32 years, in China, produce with our own factory.

2. Q: what's your factory workshops ?

    A: My factory produce include casting, mechanical process, lathe process, heat treatment, assembly, and test etc.

         Warmly welcome to visit & test my factory any time.

3. Q: How about your slurry pump price?

    A: We are sure our price is factory price, and insist high quality for our long term cooperation.

4. Q: What is your slurry pump material ?
    A: AM series slurry pump materialhigh Cr Mo Ni alloy, super abrasive-resistant metal.

        Shaft & Shaft sleeve material is stainless steel alloy.

5.Q: What kind of liquid can your slurry transfer?
    A: Liquid range: water+ sand, solid, sludge, gravel, stones, chemical etc.

6. Q:How does your factory do regarding quality control?
    A:"Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end.

         Our factory has 15~30 QC.

7. Q: Is it easy for customers to change the parts by myself ?
    A: yes, the structure is simple ,customers can change it very easily. We will also supply you maintenance tools for free.

8. Q: How to do if the pump or parts have operation problem within your warranty?
    A:  Tell me details timely, and show me pictures, we will send you solution at once without any hesistation.

9. Q: Can you install the electric motor or diesel engine with the pump for us ?
      A: yes, we can, it's no problem, we are experienced in this .

10: Q: .we don't know which pump model we need ,can you help us ?
      A: yes, please tell me your detail requirements, include liquid, flow rate, head etc,

          my engineers teal will calculate & select most suitable pump model for you, offer pump solution for you.

11. Q:How long can you reply us if we send an inquiry ?
      A: Generally within 2 hours, we will send you official quotation sheet, with price, technology data, performance curve, dimension etc.

            Anything thing need help, please call me any time, i will try best to help you.
