General of drilling power plant diesel slurry pump corrosion resistant liquid pump

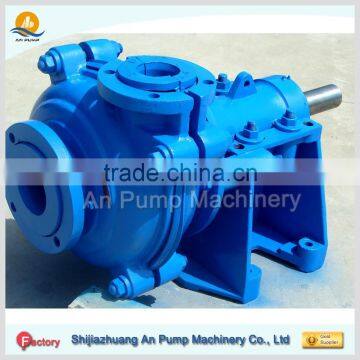

AM/AMR series is horizontal, cantilevered centrifugal drilling power plant diesel slurry pump corrosion resistant liquid pump, with reasonable construction, reliable operation, long service life. It is widely used in transporting abrasive or / and corrosive slurry in mining, metallurgy, electric power, coal, chemicals, building, etc. Especially well accepted by coal / chrome washing plant, mineral processing plant, power plant etc.

Design Features

• Bearing assembly – A large diameter shaft with short overhang minimizes deflection and contributes to long bearing life. Only four  through bolts are required to hold the cartridge type housing in the  frame.

• Liners – Easily replaceable liners are bolted, not glued, to the casing for positive attachment and ease of maintenance. Hard metal liners are completely interchangeable with pressure molded  elastomers. Elastomer seal rings back all liner joints.

• Casing – Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure capabilities and an extra measure of safety.

• Impeller – Front and rear shrouds have pump out vanes that reduce recirculation and seal contamination. Hard metal and molded elastomer impellers are completely interchangeable. Cast  in impeller threads require no inserts or nuts. High efficiency and high head designs are also available.

• Throat bush – Wear is reduced and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.

• One-piece frame – A very robust one-piece frame cradles the cartridge type bearing and shaft assembly. An external impeller adjustment mechanism is provided below the bearing housing for

easy adjustment of impeller clearance.

AM/AMR Slurry Pump Structure

AM,AMR Slurry Pump Performance Data

AM, AMR Slurry Pump Performance Curve

Pump Applications

Chemical Process

Heavy Minerals

Paper and Pulp

Mill Discharge

Sugar Beet

Slag Granulation

Bottom Boiler and Fly Ash

Cyclone Feed

Power Utilities
