marine air conditioning pump
- Tianjin/Shanghai/Guangzhou
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Single Stage Single End Suction IH Series Stainless Steel Chemical Pump
-
Centrifugal Single Stage End Suction 3-Phase Electric 20hp Water Pump
-
High pressure centrifugal grey water pump
-
High pressure single stage close coupled pump
-
ISO Standard Horizontal End Suction Centrifugal Water Pump
-
Centrifugal fire water pump
Product Details
| Place of Origin | Hebei, China | Brand Name | An Pump | |
| Model Number | QI | Theory | Centrifugal Pump | |
| Structure | Single-stage Pump | Usage | Other, irrigation,farm,sewage,heat,air conditioner | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Other, electric water pump,diesel water pump | Pressure | Other, high pressure water pump,end suction water pump,single stage pump | |
| Application | Other, irrigation,farm,sewage,fire,water,heat,air conditioner |
Product Description
marine air conditioning pump
marine air conditioning pump introduction
QI series pump is single-stage , single suction centrifugal pump , desiged as per the interational standard ISO2858 .It is a replacement of type BA water pump which is applicable to industrial and urban water supply and discharge as well as the agriculture irrigation . It can be used to transport liquid which have physical and chemical properties similar to clean water with a temperature not exceeding 80°.
QI series pump is designed according to the functions and dimensions the international standard ISO2858 requires by our company . It is suitable for hot boiler water supply , hot water circulation system , industrial and urban water supply and discharge as well as the agriculture irrigation . Nevertheless , the temperature of the water should be no more than 150°.
marine air conditioning pump specification
1.Capacity:320-760m3/h
2.Head:22.6-446.8 m
3.Speed:1480 r/min
4.Efficiency: 67.5%-84.5%
5.Power: 75-110 KW

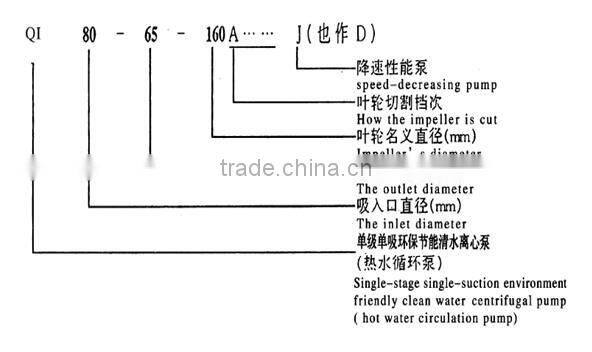

Model Description
marine air conditioning pump parameter
Centrifugal End Suction Pump Performance | |||||
Pump Type | Capacity (m3/h) | Head (m) | Speed (rpm) | Motor Power(kw) | Eff (%) |
QI 50 | 3-14 | 3.7-82 | 1450-2900 | 0.55-11 | 21.5-60 |
QI 65 | 6-30 | 3.8-115.4 | 1450-2900 | 0.55-30 | 25-75 |
QI 80 | 12-60 | 3.6-128 | 1450-2900 | 0.55-37 | 39-75 |
QI 100 | 24.3-120 | 3.7-133 | 1450-2900 | 1.1-75 | 51-78 |
QI 125 | 51.4-240 | 8.4-133 | 1450-2900 | 4-110 | 52-81 |
QI 150 | 104-240 | 13-53 | 1450 | 11-45 | 62-81 |
QI 200 | 194-460 | 13.1-55 | 1450 | 22-90 | 65.5-82 |
QI 250 | 320-760 | 22.6-52 | 1480 | 75-132 | 67.5-84.5 |
QI 300 | 530-1200 | 21.9-38 | 1480 | 90-132 | 61.66-107.6 |

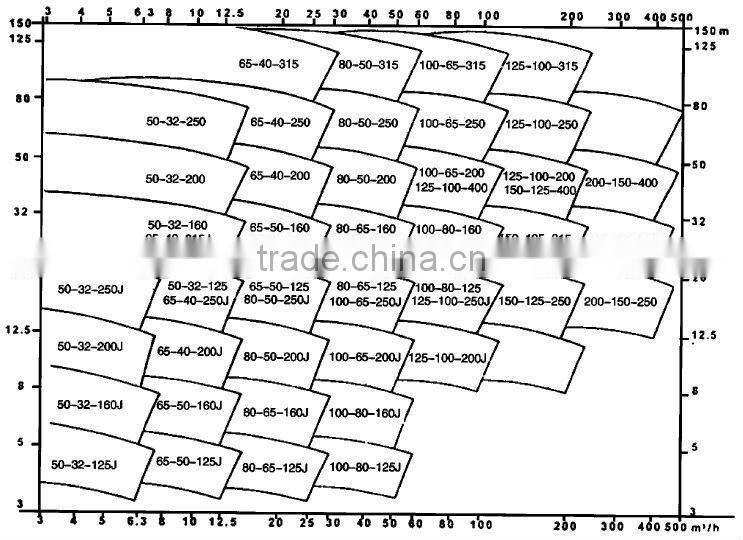

marine air conditioning pump curve

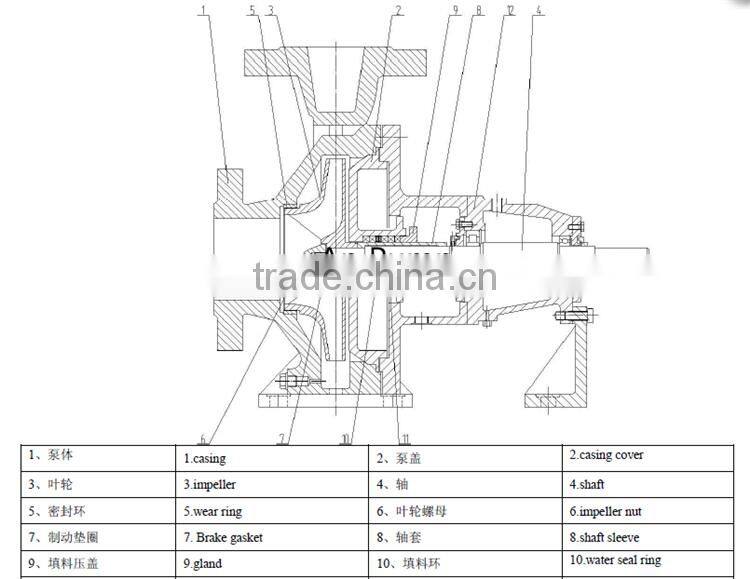

marine air conditioning pump structure
marine air conditioning pump application
1)Clean, thin, non-corrosive, non-flammable or non-explosive liquid without grain or fiber;
2)Water supply system;
3)Heat, air condition system;
4)Booster, constant pressure water supply;
5)Firefighting, splitting system;
6)Irrigating, farming;
7)Industry cooling, heater circulation system;
8)Industry transferring, drainage system;
marine air conditioning pump packing and shipping
Our Services
1. Offer Large capacity pump solutions
2. Selection
3. OEM available
4. ODM available
5. Design
6. Installation
7. Maintenance
Our Main Products

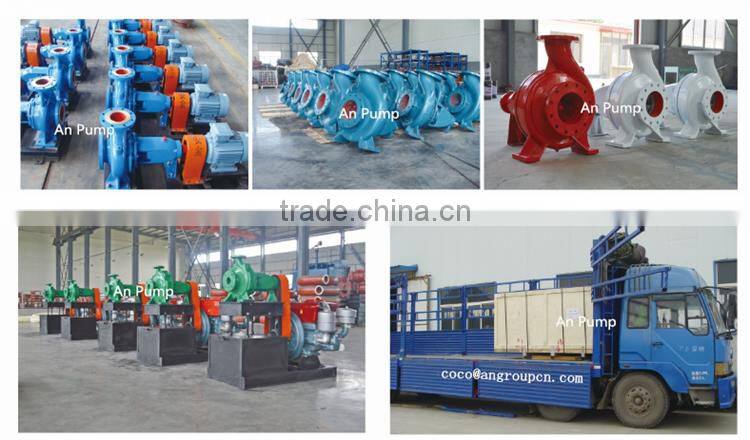

Some clients visit our factory
Learn more , please contact us directly.
Web:
Email:coco(@)
Tel:86-311-89940549 Fax:86-311-86271170
International calls:86 15032857866
WhatsApp:008613731071183
Skype:mandy.anpump
Contact Us
- Shijiazhuang An Pump Machinery Co., Ltd.
- Contact nameDavid An Chat Now
- Phone86-0311-89940549
- AddressNo.715,Block A,Yingban Building,Shijiazhuang City,China, Shijiazhuang, Hebei
