Drip irrigation equipment tubes production line
- 20 Unit / Units per Month
- Shanghai
- T/T L/C D/P D/A
You May Like
-
Hot Sale Labyrinth Drip Irrigation Tape Production Plant
-
Reliable Performance Flat Dripper Irrigation Tube Production Line
-
2017 New Dripper Irrigation Pipe Extrusion Machinery
-
High Efficiency PE Drip Irrigation Hose Machine For Agricultural
-
CE Standard In-Line Drip Irrigation Tubing Production Line
-
Fully Automatic Round Drip Irrigation Tape Making Plant
Product Details
Condition | New | Application | Pipe | |
Plastic Processed | PE | Screw Design | Single-screw | |
Automatic Grade | Automatic | Place of Origin | Shanghai, China | |
Brand Name | Drip irrigation equipment tubes production line | Model Number | Drip irrigation equipment tubes production line | |
Voltage | 140 kw | Power(W) | 380v/50hz | |
Dimension(L*W*H) | 24m*6m*3m | Weight | 40 tons | |
Certification | National invention patent , CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
DRIP IRRIGATION EQUIPMENT TUBES PRODUCTION LINE
1. In summary : AGRICULTURAL DRIP IRRIGATION EQUIPMENT PRODUCTION LINE
The drip irrigation pipe technology is associated promotion project of water-saving drip irrigation between us and China Institute of Water Resource and Hydropower Research, got the national invention patent, passed CE standard certificate and awarded the 1st prize in national project application results in 2010 also. After many years’ research and batch production, our company has become a big supplier and service provider inner drip irrigation system: (flat dripper, column dripper and tape irrigation pipe production line), drip irrigation pipes, drip irrigation accessories, technique support and training.
Inner dripper irrigation pipe leads the trend in this filed. The machinery can produce pipes continuously with high speed, have the pipe thickness distribute steadily, and easy to operate. Irrigation pipe can be used in cotton, fruit, vegetables, greenhouse, plant engineering and other water-saving irrigation area.
Cissco Machinery Co., Ltd. aims for excellent machinery, therefore we count with excelent customer feedback.
2. Flat dripper pipe production line have main advantages as following:
3. Technical parameters:
Item | Mosaic flat dripper irrigation pipe production line |
---|---|
Pipe diameter | 12,16,20mm |
Pipe thickness | 0.18mm-1.0mm |
Production speed | <150m/min |
Distance of dripper | 150-200-300-400-500-1000mm(or according to user requirements) |
4. Scope of Supply:
No. | Description of equipments and model no. | Quantity |
1 | SJ-45/30 extruder for labyrinth tape | 1 set |
2 | Mould for labyrinth tape | 1 set |
3 | Labyrinth tape forming device | 1 set |
4 | Cooling trough for labyrinth tape | 1 set |
5 | Water removing device for labyrinth tape | 1 set |
6 | Haul-off for labyrinth tape | 1 set |
7 | Labyrinth transportation and insert device | 1 set |
8 | SJ-60/30 extruder (for pipe) | 1 set |
9 | SJ-20/25 single extruder(for marked line) | 1 set |
10 | Mould for pipe | 1 set |
11 | Vacuum sizing water tank | 1 set |
12 | Cooling tank and water removing device | 1 set |
13 | Haul-off and cutting device | 1 set |
14 | Two position winder | 1 set |
15 | PLC control system | 1 set |

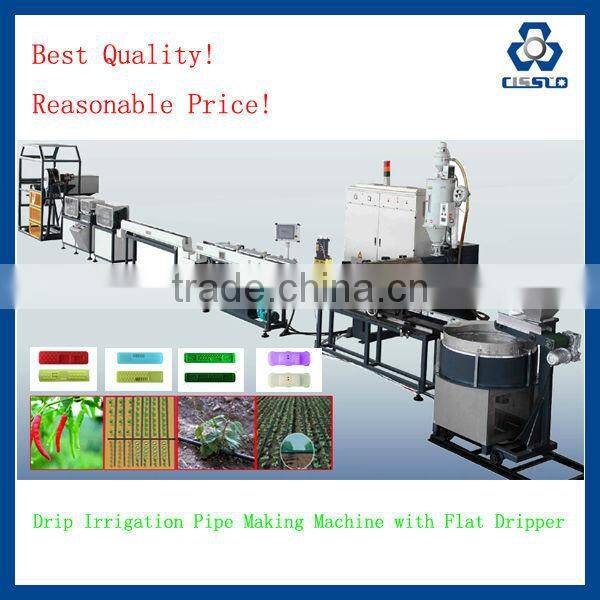

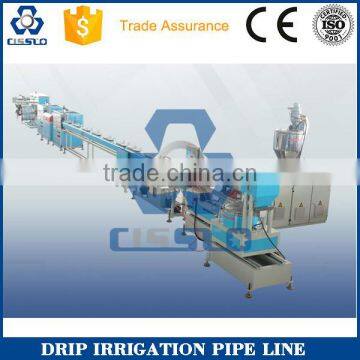

5. Photo Show
Our company is established in 1988, specialize in making extrusion equipment, thermoforming equipment and relevant facilities as well as moulds, and it is a limited reliability company which sets development, manufacture, sales and service in one.
We have strong research & development and manufacture ability, and it has a team consisting of professional staff from different engineering fields. Our factory is located in Zhejiang Province of China. We have a team of more than 100 empolyees.
Our machine is with advanced world levels, and its cost performance is incomparable all over the world. The company supplies foaming sheet units, which can produce foaming PE and PS sheet and board. The tandem-foaming machines is mainly making foaming PS sheet and board; Due to various advanced technology, the range foam expansion ratio is very wide and techniques is extremely stable. The single-foaming unit is mainly for PE sheet, and it is simply structured, which is easy for operation with reasonable price.
We are in the lead of thermoforming equipment industry. Its two-station electric thermoforming and trimming unit is set with 6 to 7 servo motors, which can save various kinds of parameters, and have high degree automation and speed. Its forming speed can reach 40 cycles per minute, trimming 160 cycles per minute, and it can process all kinds foaming material and hard
material. One-station thermoforming machine combines forming, punching, and stacking in one machine, which is equipped with 10 to 16 servo motors, and can memorize various kinds of processing parameters. Its forming speed can be 50 cycles per minute. And it can be applied to several kinds of hard material.
Meanwhile, We can provide customer relevant auxiliary parts and moulds, as well as turn-key project service
Loyal Luo, Sales Export & Business Developer
CissCo Machinery Co., Ltd.
Mob.: +86 18817937157 I Office: +86 2138726398 / 99
Email: market02@ I Skype: cisscomachine03 I Web:
Add.: 30B, No.58 New Jinqiao Road, Pudong, Shanghai, China
