Column Drip Irrigation Hose Pipe Making Machine
- Shanghai
- T/T L/C D/P D/A
You May Like
-
Most Popular PE Labyrinth Drip Irrigation Pipe Extruder
-
Customised Design Round Dripper Irrigation Pipe Production Line
-
Round Dripper Irrigation Tube Extrusion Machine
-
High Speed Flat Drip Irrigation Tape Making Machine
-
Ce Standard Tape Drip Irrigation Production Line
-
High Speed Flat Drip Irrigation Tube Making Machinery
Product Details
| Condition | New | Application | Pipe | |
| Plastic Processed | PE | Screw Design | Single-screw | |
| Automatic Grade | Fully automatic | Place of Origin | Hebei, China | |
| Brand Name | Drip irrigation hose pipe making machine | Model Number | Drip irrigation hose pipe making machine | |
| Voltage | ABOUT 130 KW | Power(W) | 380V/50hz | |
| Dimension(L*W*H) | 24*6*3 M | Weight | 40 Tons | |
| Certification | CE, ISO9001 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

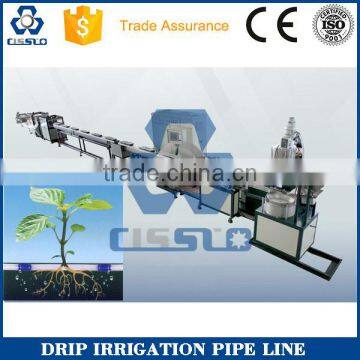

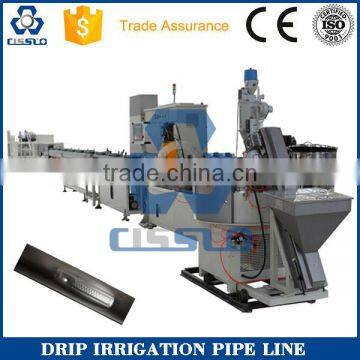

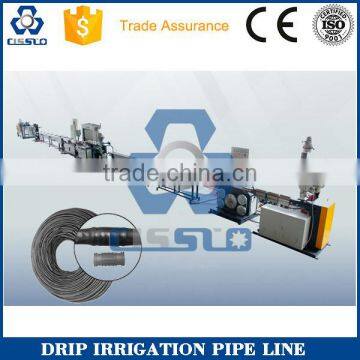

DRIP IRRIGATION PIPE PRODUCTION LINE
1. Summary of DRIP IRRIGATION PIPE PRODUCTION LINE
The drip irrigation pipe technology is associated promotion project of water-saving drip irrigation between us and China Institute of Water Resource and Hydropower Research, got the national invention patent, passed CE standard certificate and awarded the 1st prize in national project application results in 2010 as well. After many years’ research and batch production, our company has become a big supplier and service provider in inner drip irrigation system: (flat dripper, column dripper and tape irrigation pipe production line), drip irrigation pipes, drip irrigation accessories, technique support and training.
Inner dripper irrigation pipe leads the trend in this filed. The machinery can produce pipes continuously with high speed, have the pipe thickness distribute steadily, and easy to operate. Irrigation pipe can be used in cotton, fruit, vegetables, greenhouse, plant engineering and other water-saving irrigation area.
2. Product Specifications
Pipe diameter | Specifications | ||
Ø12 | Ø16 | Ø20 | |
Pipe thickness | 0.2-0.6mm | 0.2-0.6mm | 0.2-0.6mm |
Max speed: 120m/min
Center Height: 1000mm
Installed power: about 130KW
Equipment Length: 40m
3. Scope of SUPPLY of DRIP IRRIGATION PIPE PRODUCTION LINE
No. | Description of equipments and model no. | Quantity |
1 | SJ-45/30 extruder for labyrinth tape | 1 set |
2 | Mould for labyrinth tape | 1 set |
3 | Labyrinth tape forming device | 1 set |
4 | Cooling trough for labyrinth tape | 1 set |
5 | Water removing device for labyrinth tape | 1 set |
6 | Haul-off for labyrinth tape | 1 set |
7 | Labyrinth transportation and insert device | 1 set |
8 | SJ-60/30 extruder (for pipe) | 1 set |
9 | SJ-20/25 single extruder(for marked line) | 1 set |
10 | Mould for pipe | 1 set |
11 | Vacuum sizing water tank | 1 set |
12 | Cooling tank and water removing device | 1 set |
13 | Haul-off and cutting device | 1 set |
14 | Two position winder | 1 set |
15 | PLC control system | 1 set |
